<< B >> Brake Disc Removal
WARNING: This page is about a different variant/trim than selected.

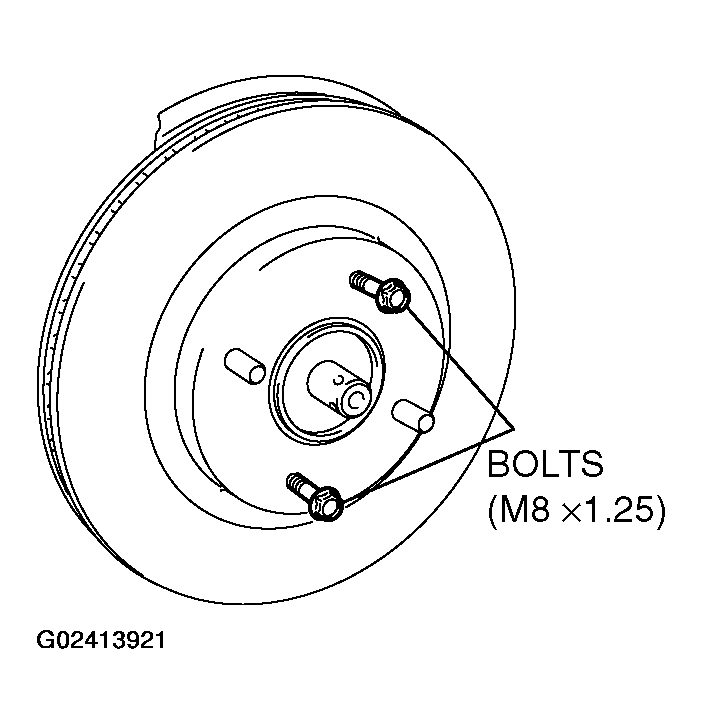

If the brake disc is seized, install a M8 x 1.25 bolts as shown, and remove the disc by tightening the bolts evenly and gradually.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
