<< E >> Driveshaft Removal

WARNING: This page is about a different variant/trim than selected.
  1. Use special tools MB990241 and MB990767 < Vehicles without center bearing >, MB990242, MB990244, MB991354 and MB990767 < Vehicles with center bearing > to push out the driveshaft from the hub and knuckle.

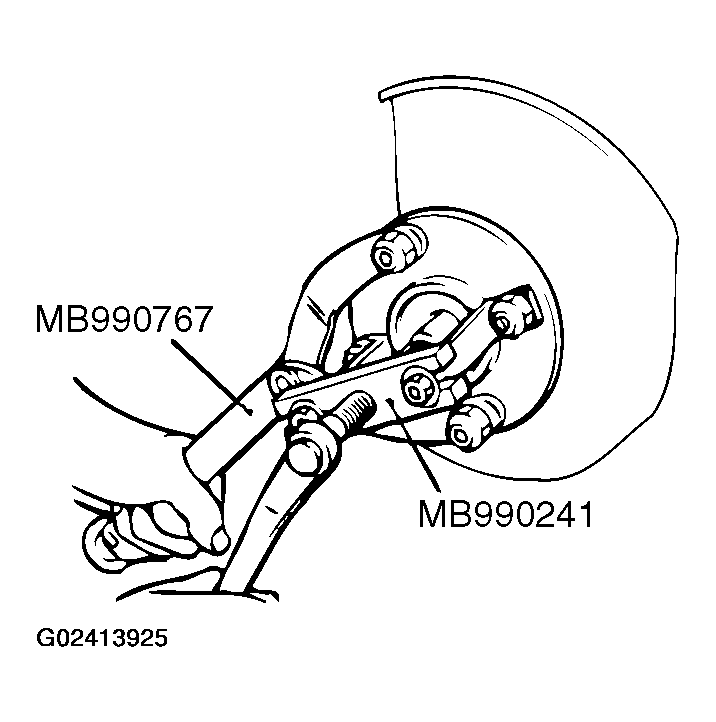

    Fig 1: Pushing Out Driveshaft From Hub And Knuckle (1 Of 2)
    G02413925Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

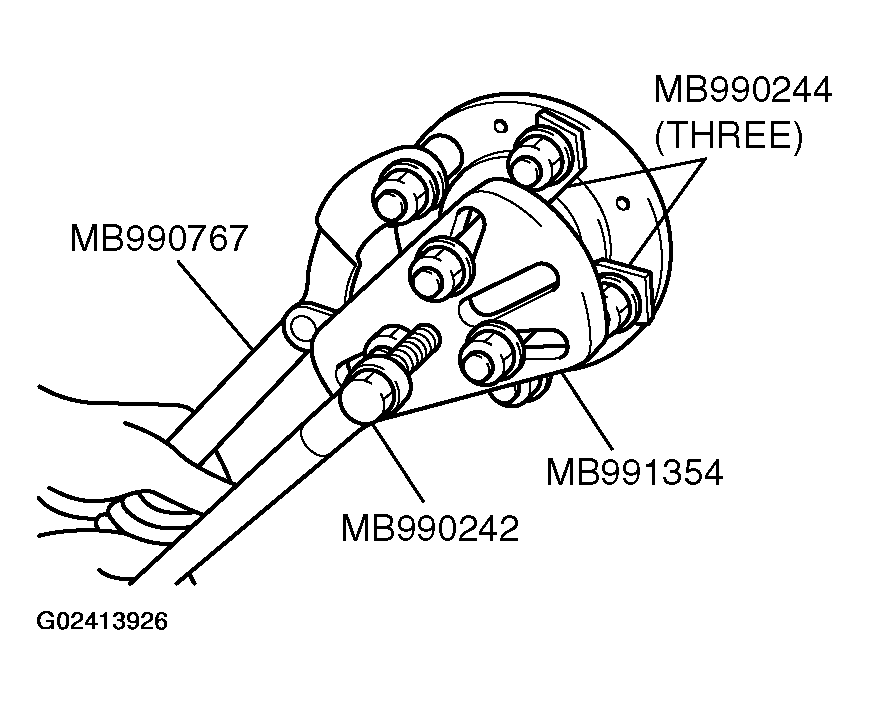

    Fig 2: Pushing Out Driveshaft From Hub And Knuckle (2 Of 2)
    G02413926Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Withdraw the drive shaft from the hub by pulling the bottom of the hub and knuckle towards you.
  3. Hang the drive shaft on the vehicle body with a rope.
    Fig 3: Removing Drive Shaft From Hub
    G02413927Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
