Section 30 (Front Axle -- Except Evolution)
>>
Special Tools
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Special Tools
WARNING:
This page is about a different variant/trim than selected.

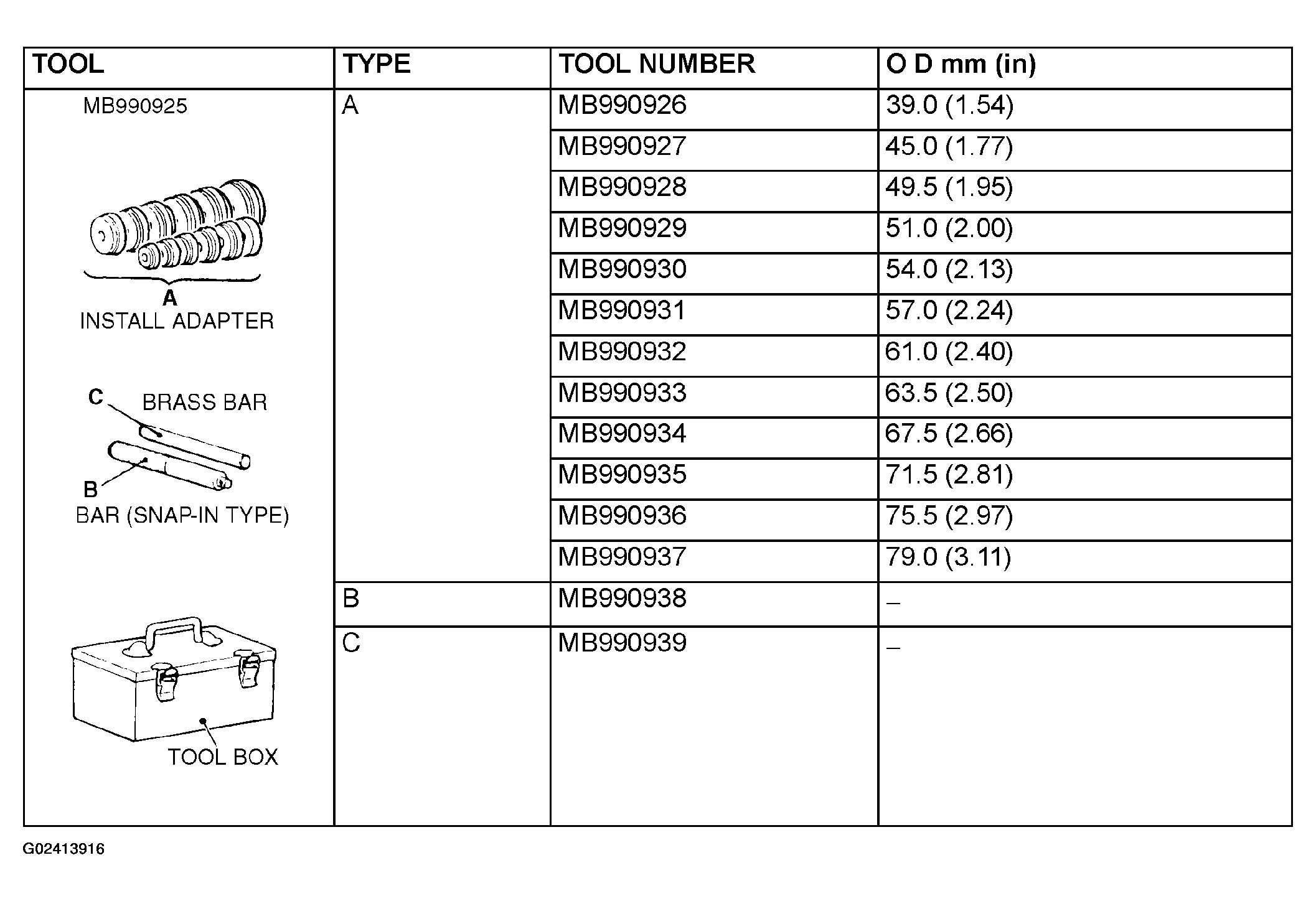

Fig 1: Special Tools Chart (1 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

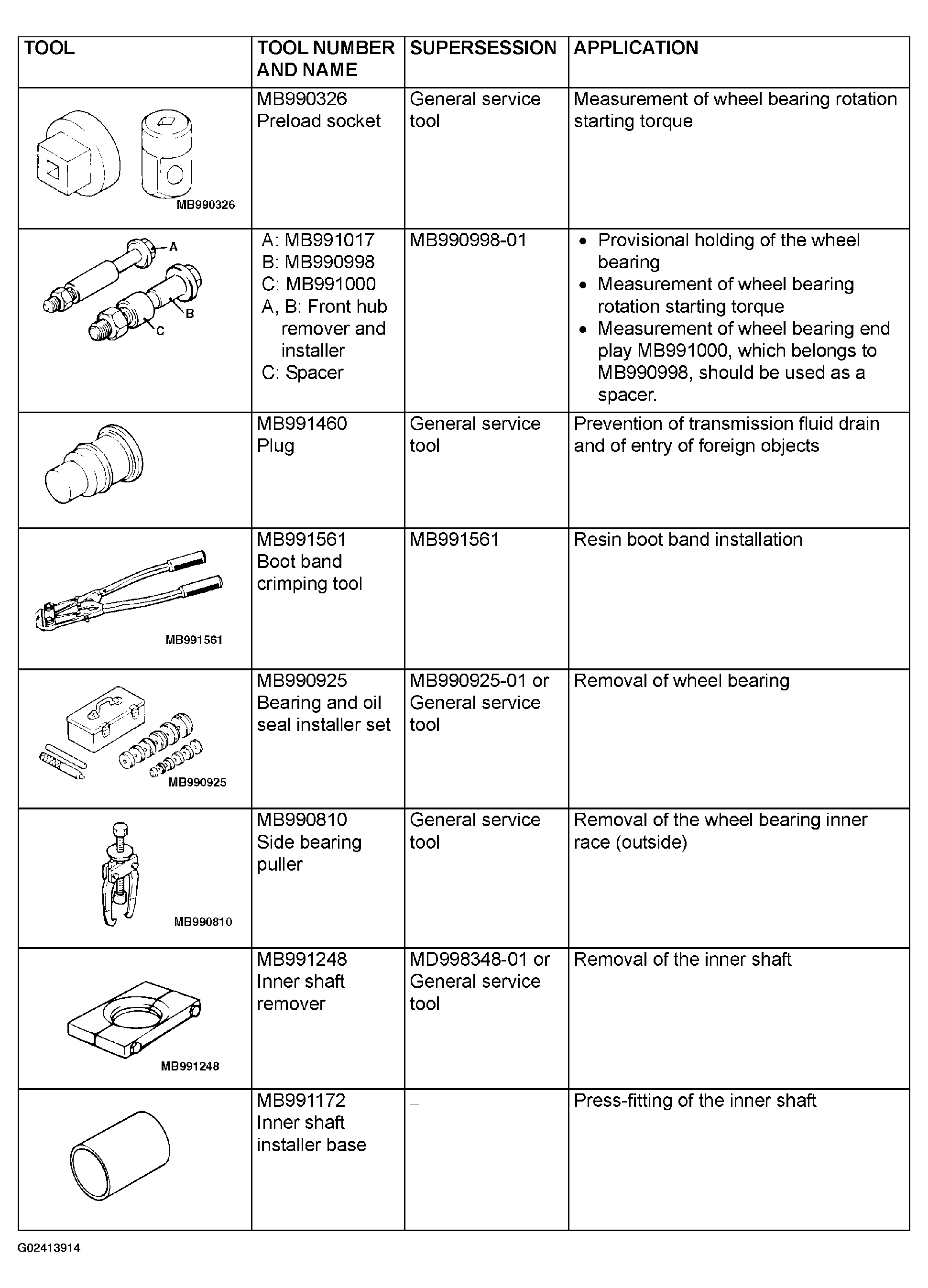

Fig 2: Special Tools Chart (2 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

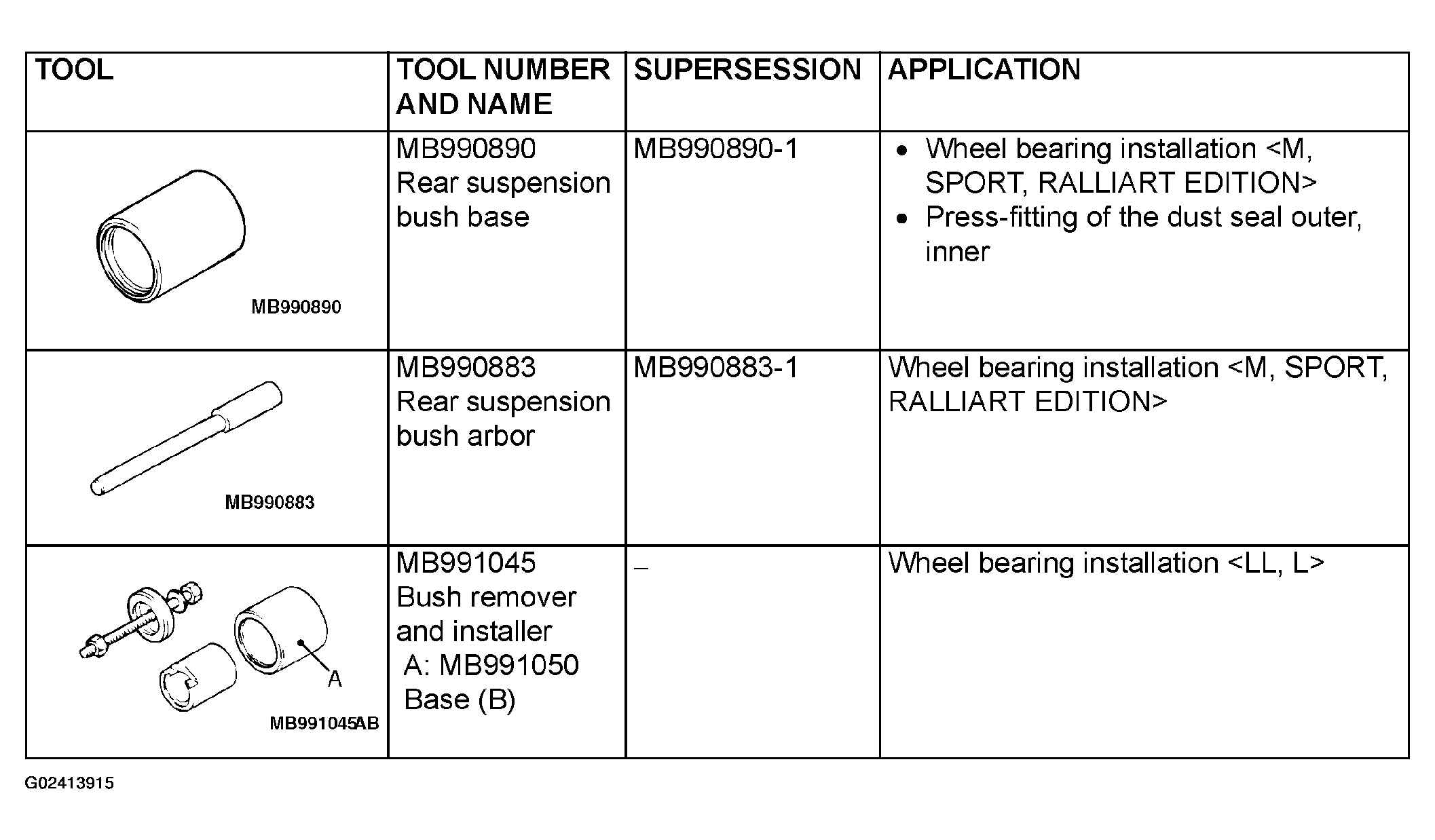

Fig 3: Special Tools Chart (3 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

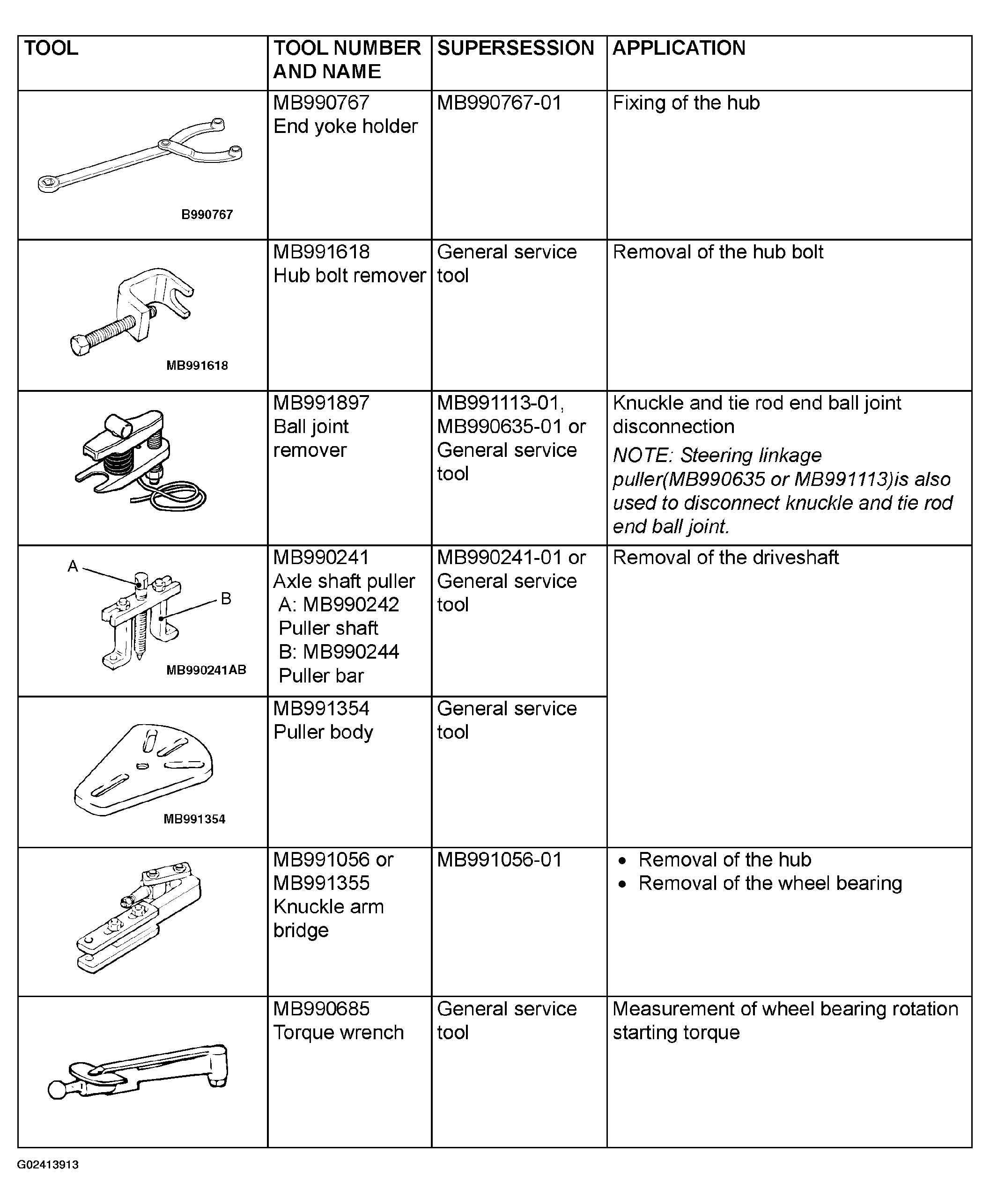

Fig 4: Special Tools Chart (4 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
