Actuator Test Specifications
WARNING:
This page is about a different variant/trim than selected.

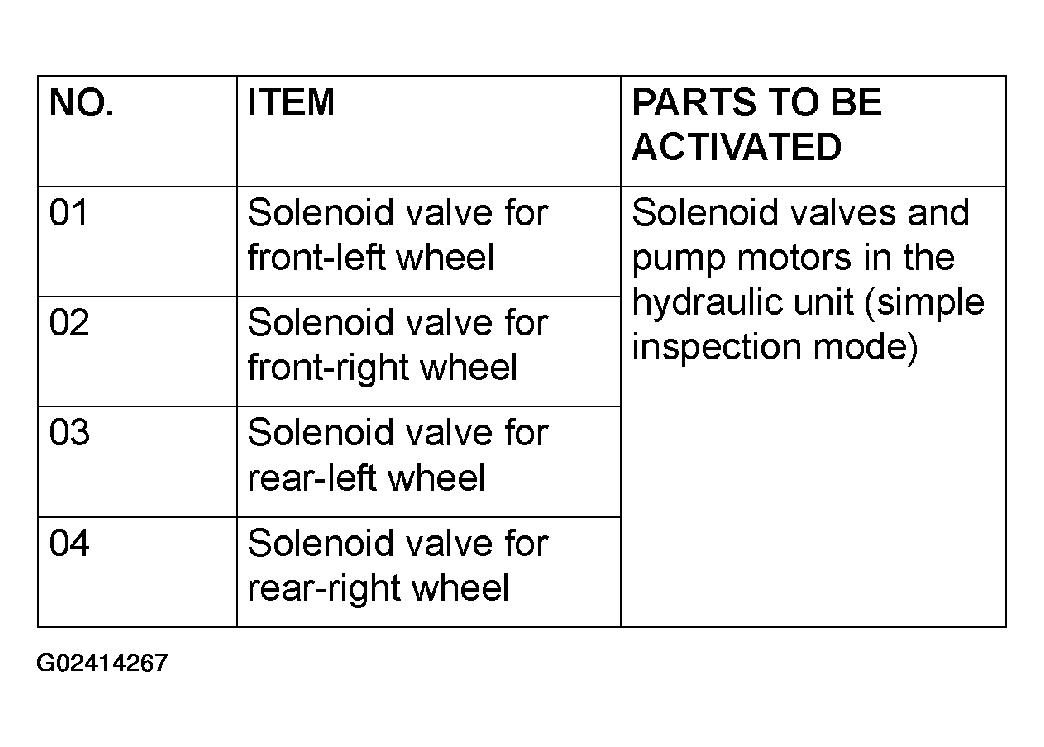

Fig 1: Actuator Test Reference Table
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

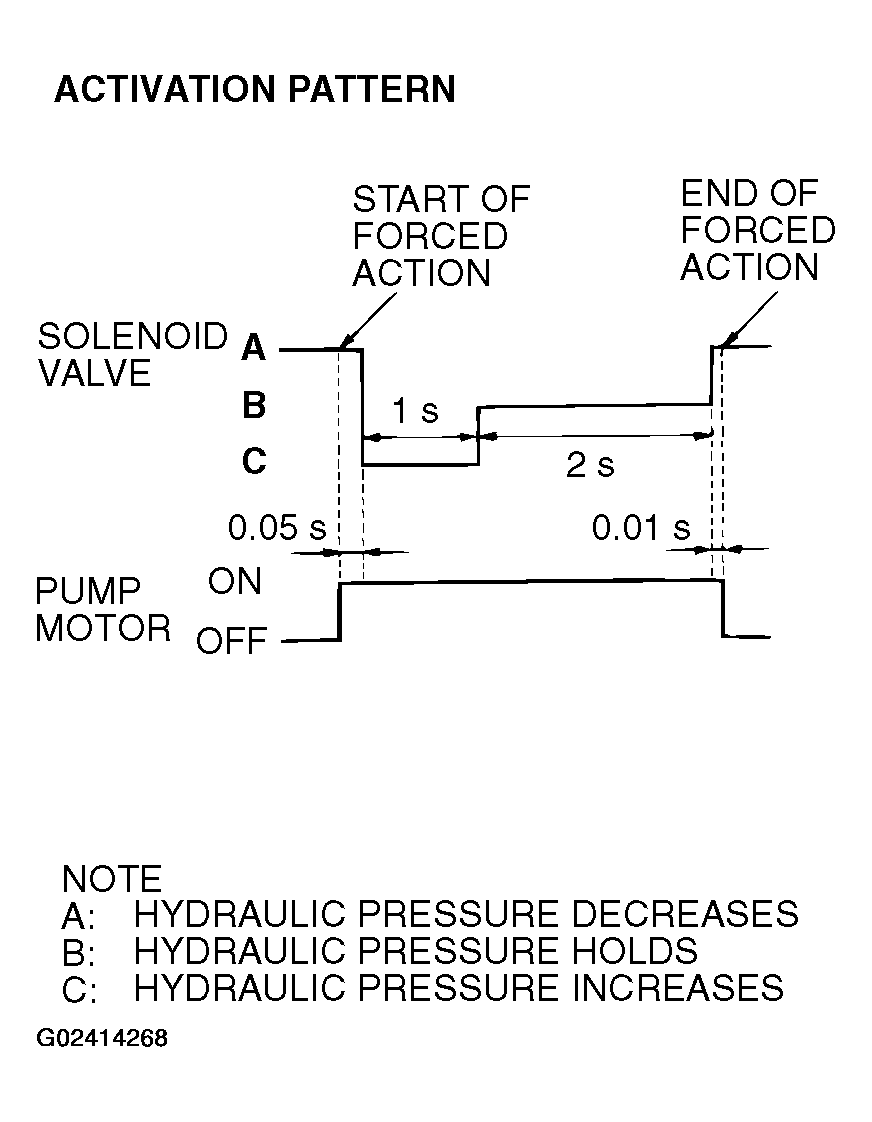

Fig 2: Actuator Activation Pattern Graph
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
