When Using Scan Tool MB991958
WARNING: This page is about a different variant/trim than selected.
Required Special Tools:
- MB991958: Scan Tool (MUT-III Sub Assembly)
- MB991824: Vehicle Communication Interface (V.C.I.)
- MB991827: MUT-III USB Cable
- MB991911: MUT-III Main Harness B (Vehicles without CAN communication system)
CAUTION:
To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.
NOTE:
If the battery voltage is low, diagnostic trouble codes will not be set. Check the battery if scan tool MB991958 does not display.

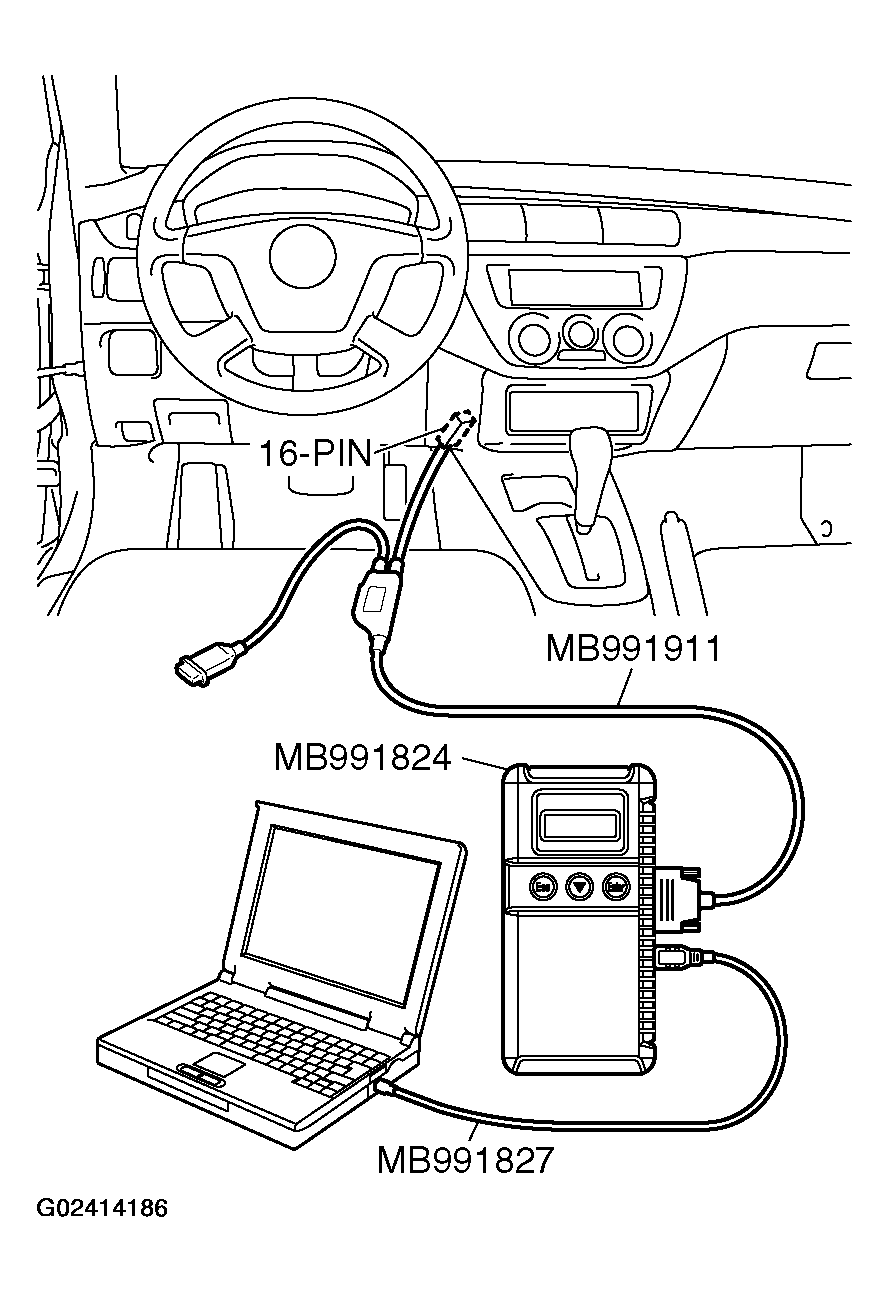

- Connect scan tool MB991958 to the data link connector.
- Turn the ignition switch to the "ON" position.
- Select "Interactive Diagnosis" from the start-up screen.
- Select "System select."
- Choose "ABS" from the "CHASSIS" tab.
- Select "MITSUBISHI."
- Select "Diagnostic Trouble Code."
- If a DTC is set, it is shown.
- Choose "DTC erase" to erase the DTC.
