When Using The Abs Warning Light

WARNING: This page is about a different variant/trim than selected.

Required Special Tool:

Turn the ignition switch to the "LOCK" (OFF) position.
Use special tool MB991529 to earth terminal number 1 (diagnostic control terminal) of the data link connector.
Turn the ignition switch to the "ON" position.

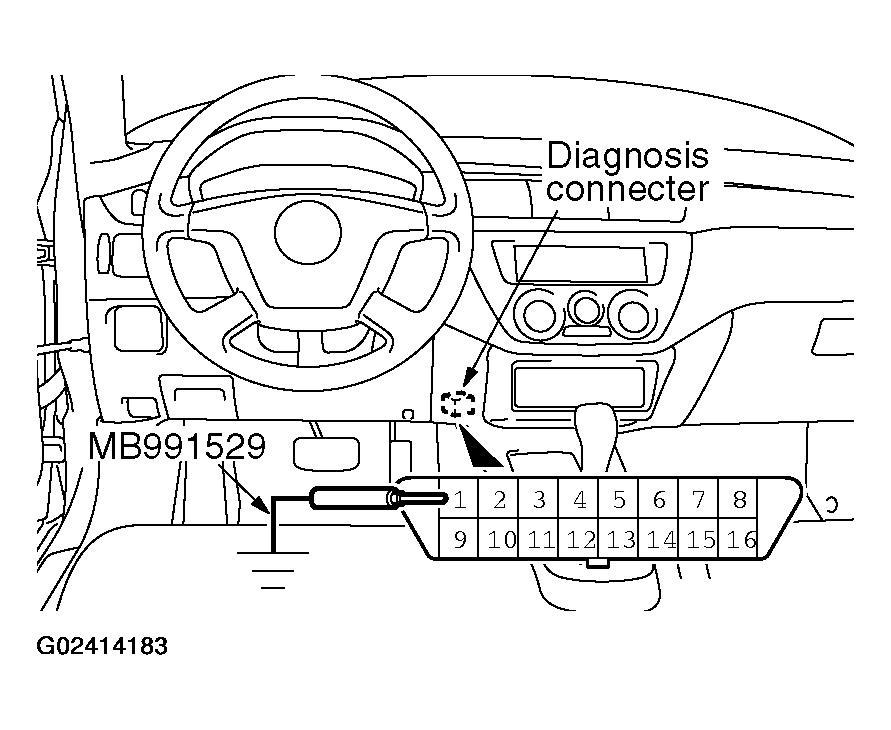

Fig 1: Earthing Terminal Number 1 Of Data Link Connector Using Special Tool MB991529
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Read out a diagnostic trouble code by observing how the ABS warning light flashes.

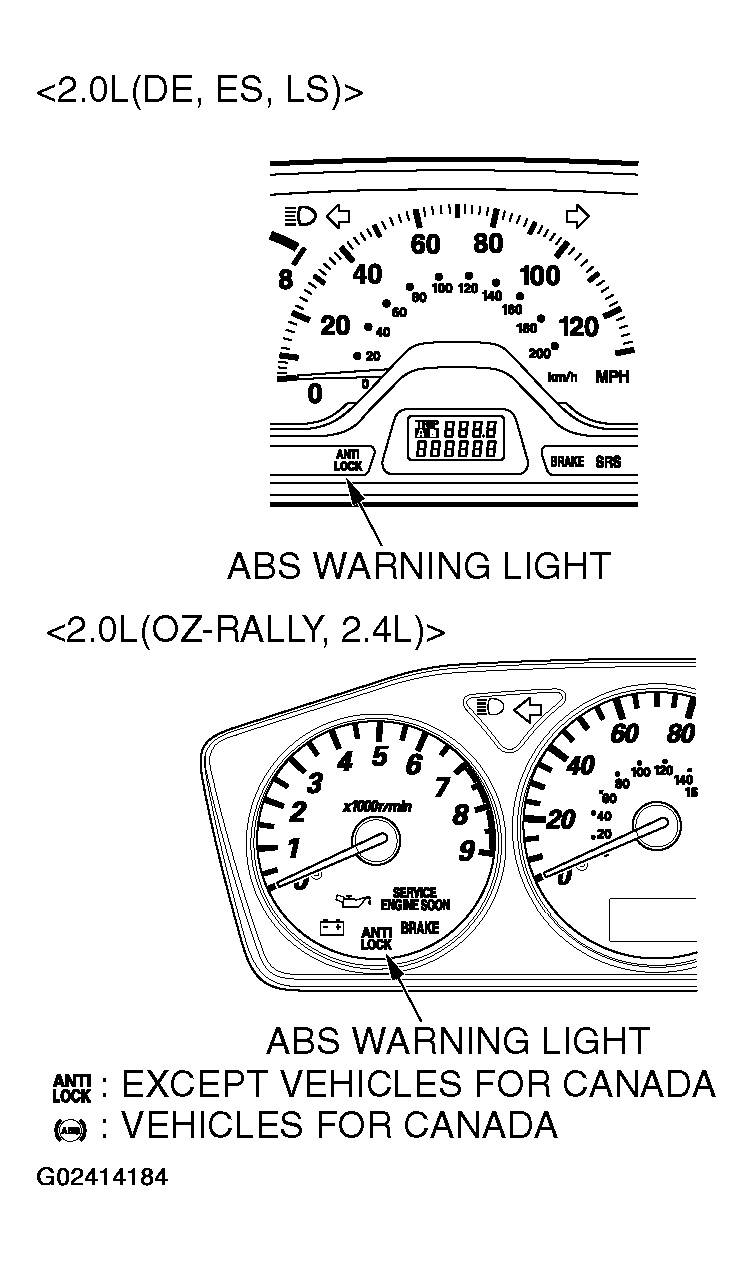

Fig 2: Identifying ABS Warning Light
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Turn the ignition switch to the "LOCK" (OFF) position.
Disconnect special tool MB991529.

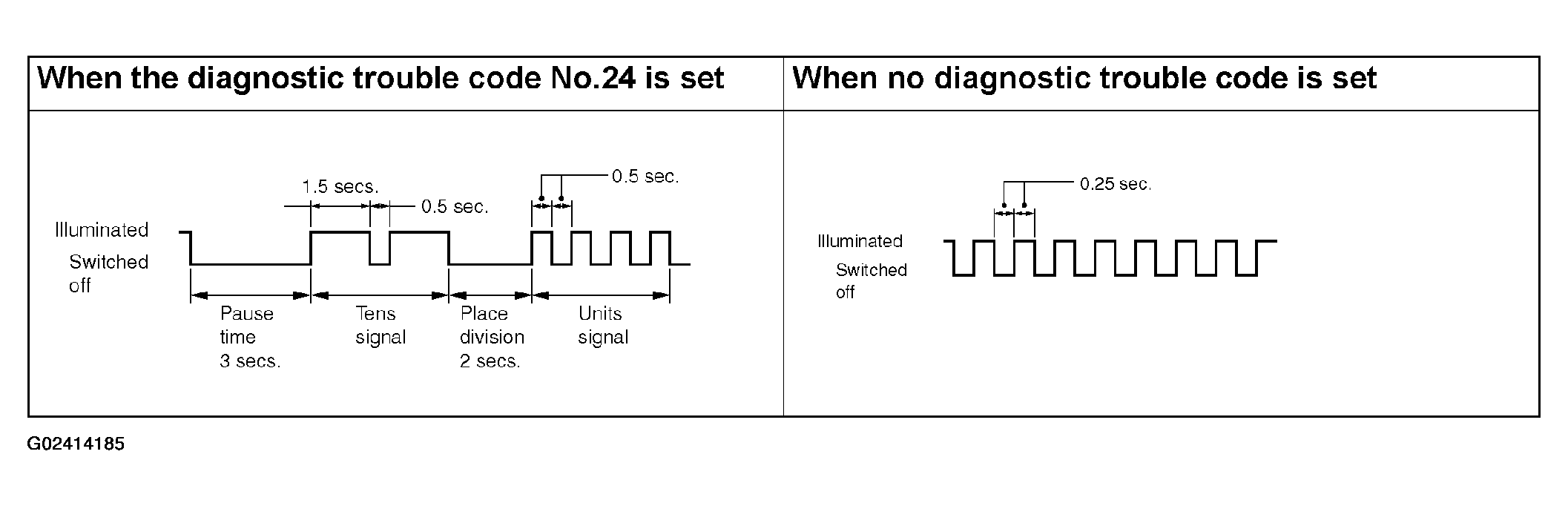

Fig 3: Identifying ABS Warning Light Flashes
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
