Diagnostic Trouble Code Chart
WARNING: This page is about a different variant/trim than selected.

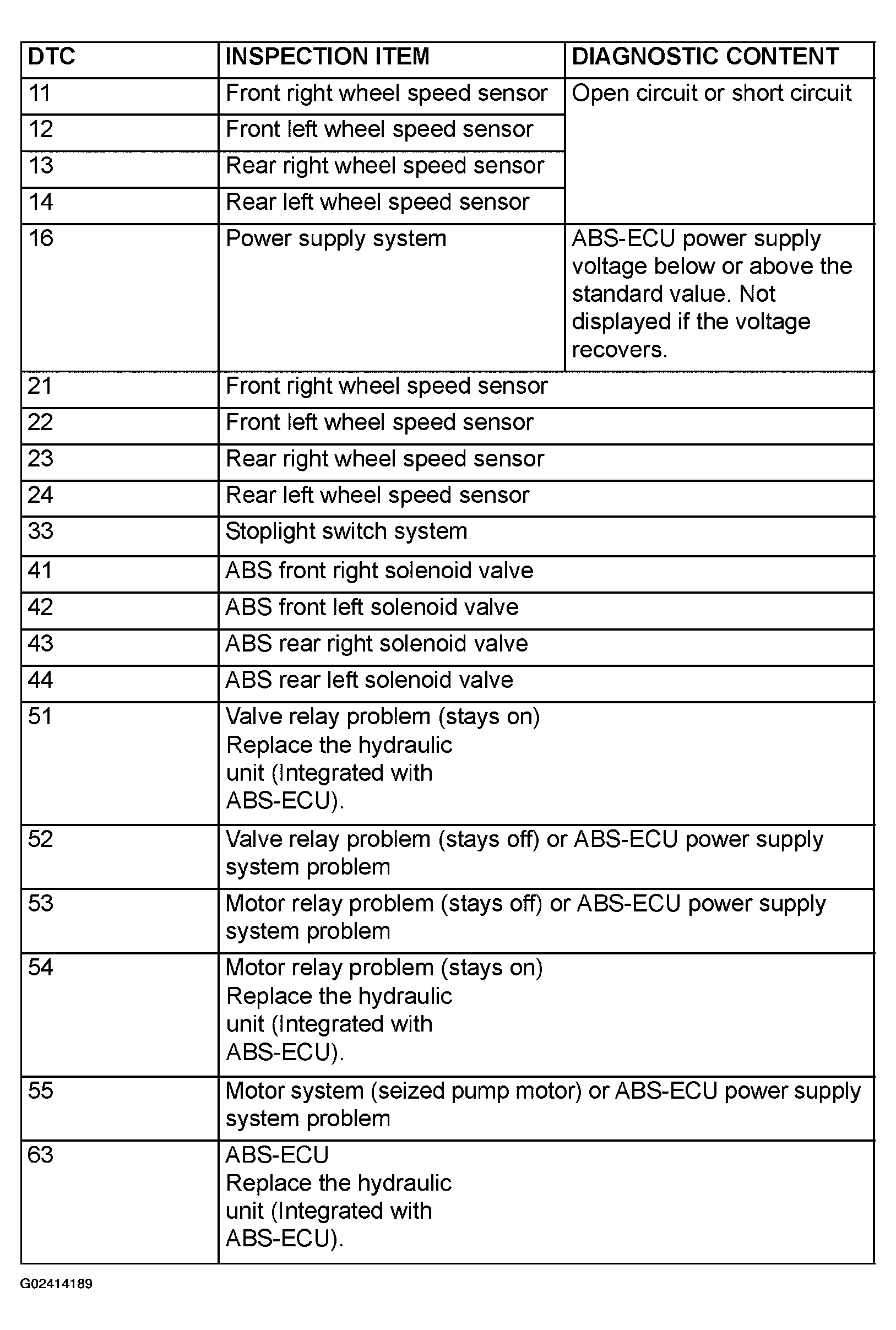

DTC INDEX
| DTC | Description |
|---|---|
| DTC 11,12,13,14 | Wheel Speed Sensor (Open Circuit or Short Circuit) |
| DTC 21, 22, 23, 24 | Wheel Speed Sensor |
| DTC 16 | ABS-ECU Power Supply System (ABS-ECU Power Supply Voltage or Valve Relay Power Supply Voltage below or above the Specified Value) |
| DTC 33 | Stoplight Switch Syst |
| DTC 41, 42, 43, and 44 | ABS Solenoid Valve inside Hydraulic Unit (Open Circuit or Short Circuit) |
| DTC 52 | Valve Relay Problem (Stays off) |
| DTC 53 | Motor Relay Problem (Stays off) |
| DTC 55 | Motor System (Seized Pump Motor) |
Follow the inspection chart that is appropriate for the diagnostic trouble code.
NOTE:
- Code No. 16 is cleared from the memory by turning the ignition switch to ACC position. When the system is properly reset, this code is also cleared from the memory.
- Code No. 52 and 63 are cleared from the memory by turning the ignition switch to ACC position.
