Stoplight Switch Circuit

WARNING: This page is about a different variant/trim than selected.

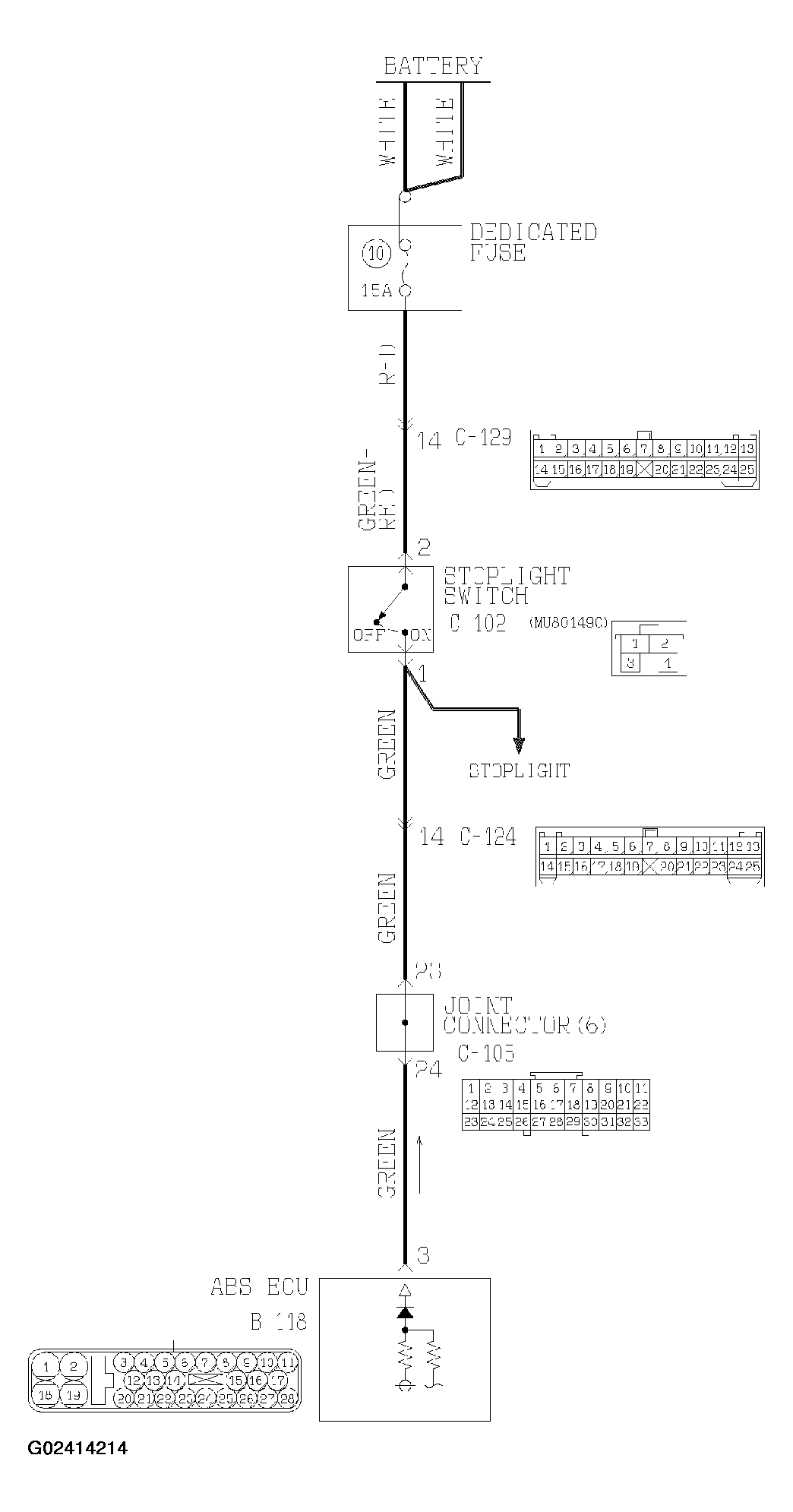

Fig 1: Stoplight Switch Circuit - Circuit Diagram
G02414214Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

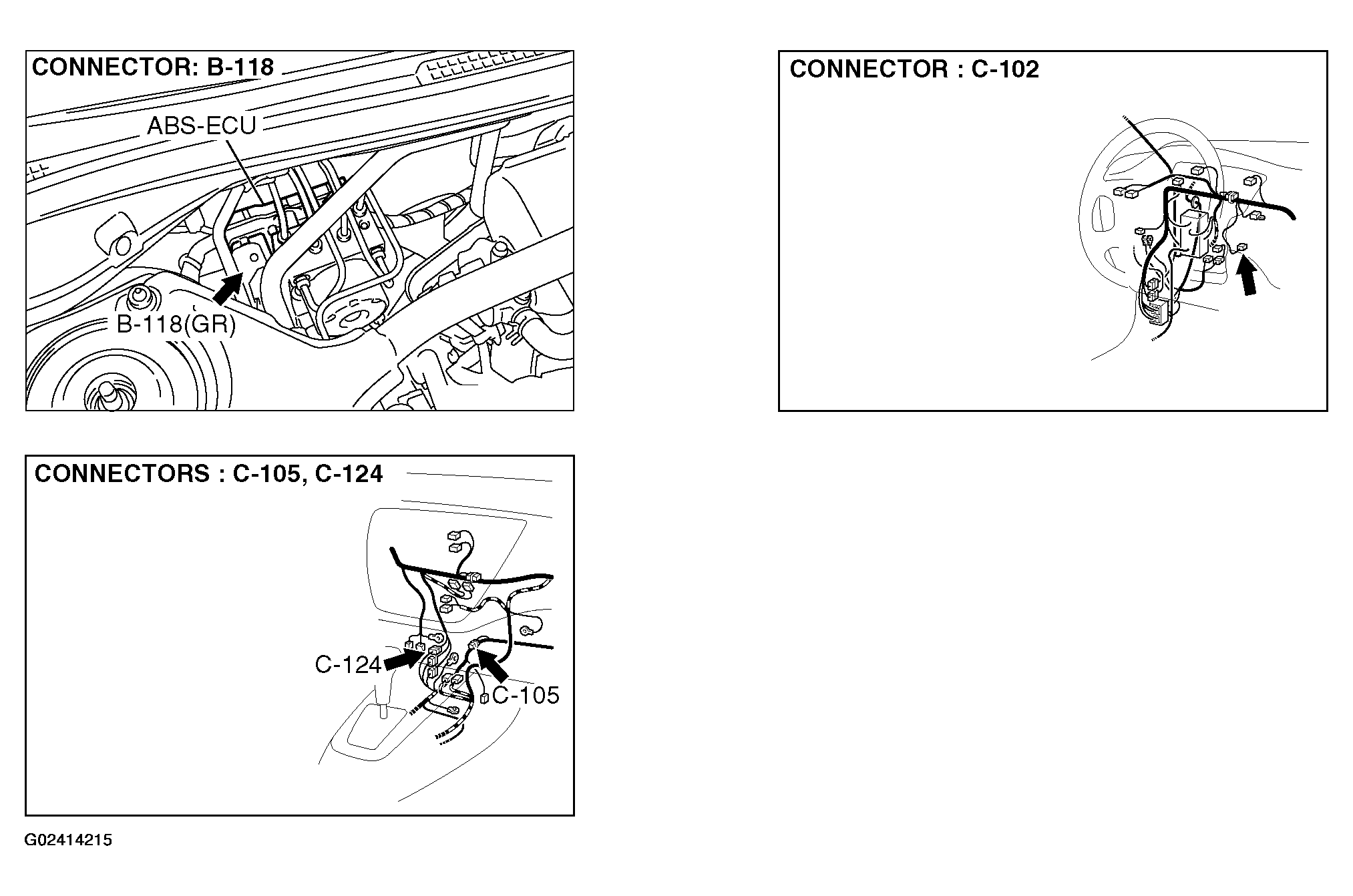

Fig 2: Identifying Connectors
G02414215Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
