>> A << Brake Pipe Connection

WARNING: This page is about a different variant/trim than selected.

Connect the pipes to the hydraulic unit assembly as shown in the illustration.

  1. From the master cylinder (secondary)
  2. To the front brake (LH)
  3. To the rear brake (RH)
  4. To the rear brake (LH)
  5. To the front brake (RH)
  6. From the master cylinder (primary)

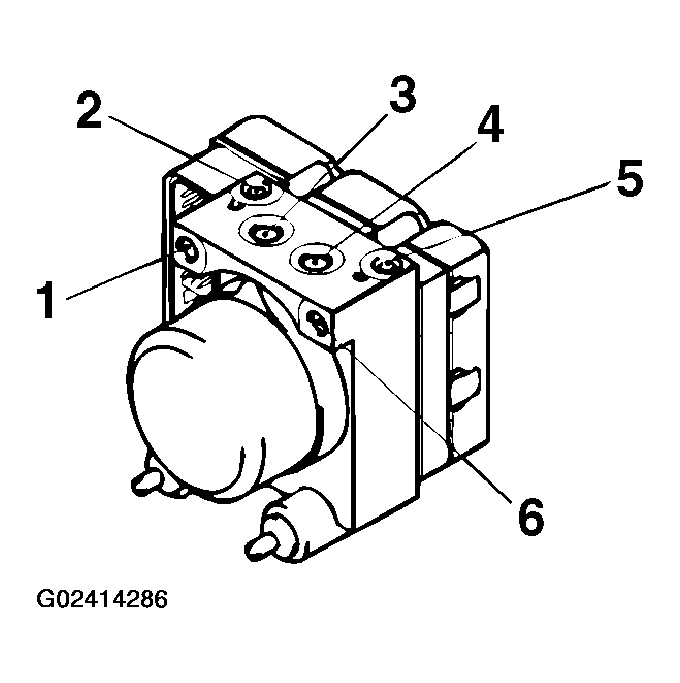

    Fig 1: Identifying Brake Pipe Connection Location In Hydraulic Unit Assembly
    G02414286Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
