Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

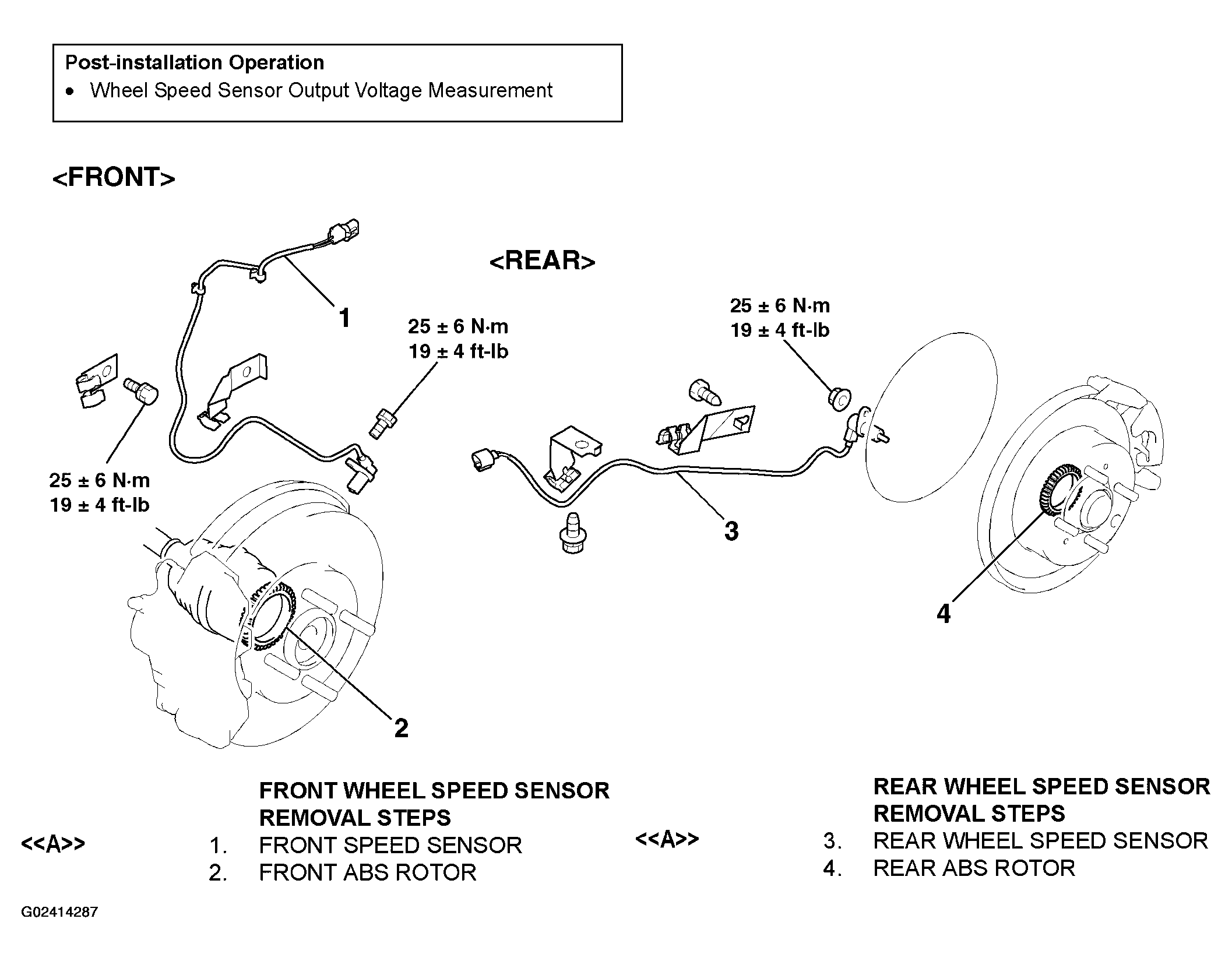

Fig 1: Removing Wheel Speed Sensor
G02414287Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
