Rectangular Waterproof Connector: Notes

WARNING: This page is about a different variant/trim than selected.

Disengage the front holder with a screwdriver and remove it.

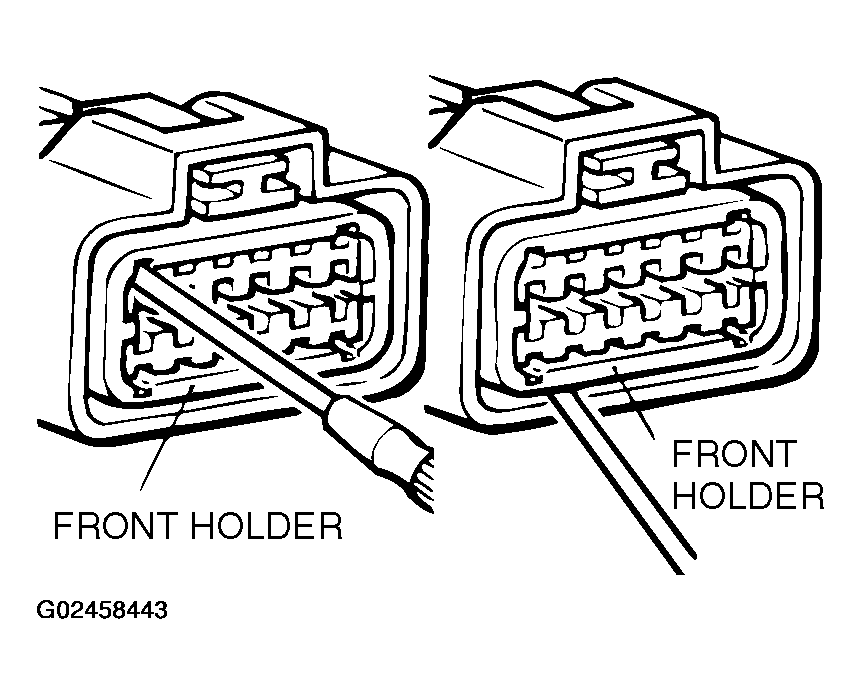

Fig 1: Disengaging Front Holder With Screwdriver
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Insert the tip of a screwdriver [0.8 mm (0.03 inch) width] into the connector as shown in the figure, push it lightly to raise the housing lance, and pull out the terminal.

Fig 2: Inserting Tip Of Screwdriver Into Connector
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Press the contact point to the male terminal down by holding a screwdriver [1.4 mm (0.06 inch) width] as shown in the figure. Lightly squeeze the outer edge so the flats are parallel with the bottom.

Fig 3: Pressing Contact Point To Male Terminal
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
