Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

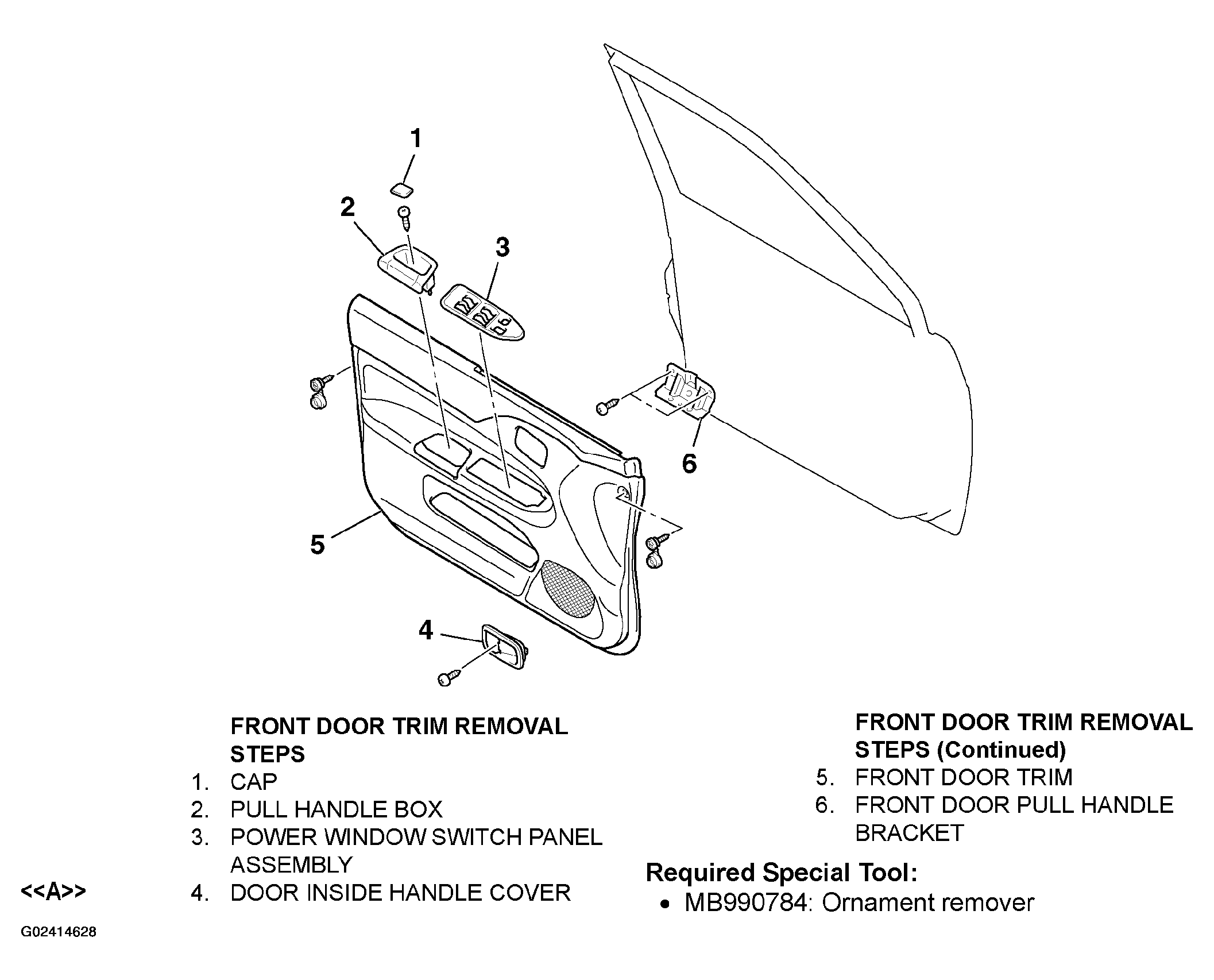

Fig 1: Removing Front Door Trim
G02414628Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

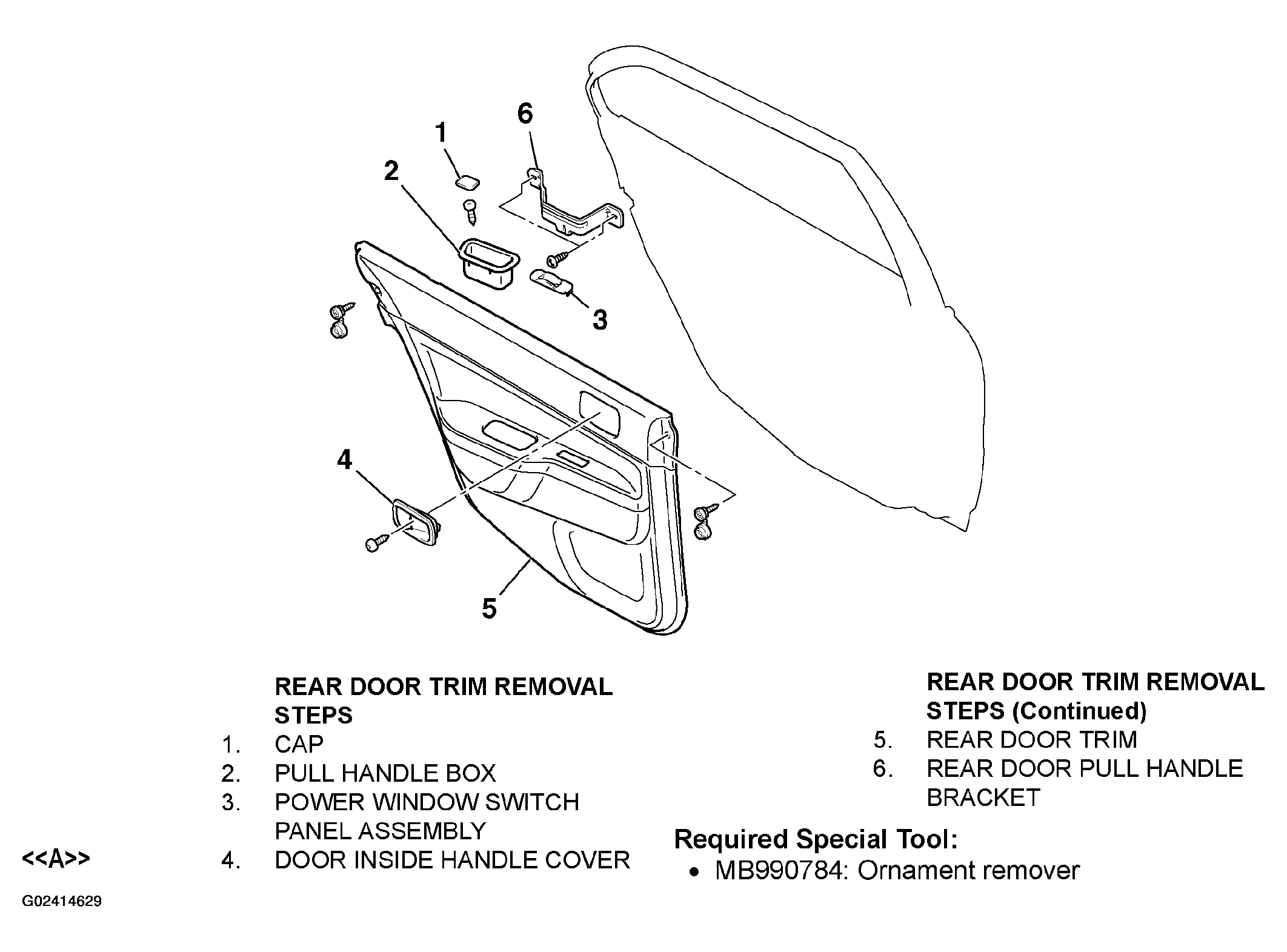

Fig 2: Removing Rear Door Trim
G02414629Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
