Disassembly And Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

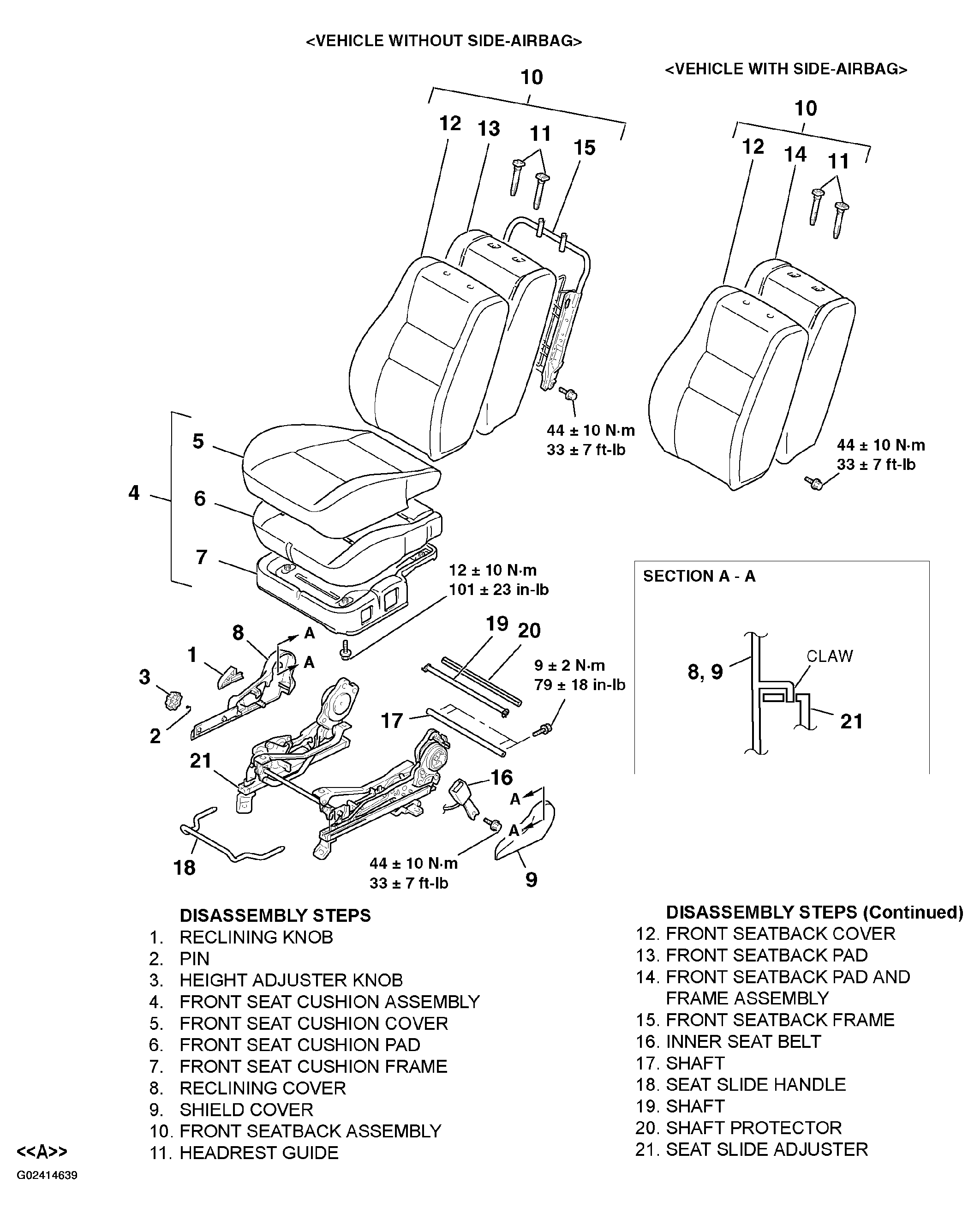

Fig 1: Removing Bolts And Front Seat Assembly
G02414639Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
