>> A << Front Seat Assembly Installation

WARNING: This page is about a different variant/trim than selected.
  1. Temporarily tighten the nuts and bolts in all mounting locations shown in the illustration with no load applied to the front seat cushion and check the operation of the seat slide.
  2. Tighten the nuts and bolts in all mounting locations to the specified torque.

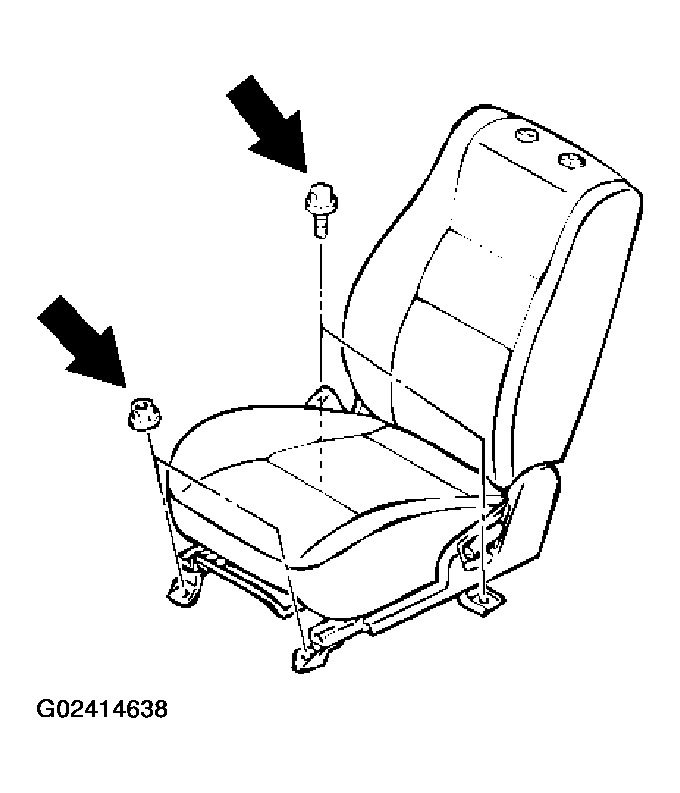

    Fig 1: Installing Front Seat Assembly Bolt
    G02414638Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
