Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

WARNING: For removal and installation of the passenger's side air bag module, always observe the service procedures described in AIR BAG MODULE AND CLOCK SPRING .

The following bolts and screws are used for installing the instrument panel. Bolts and screws are indicated as marks shown in the illustration in the sections of "Removal and Installation" and "Disassembly and Assembly."

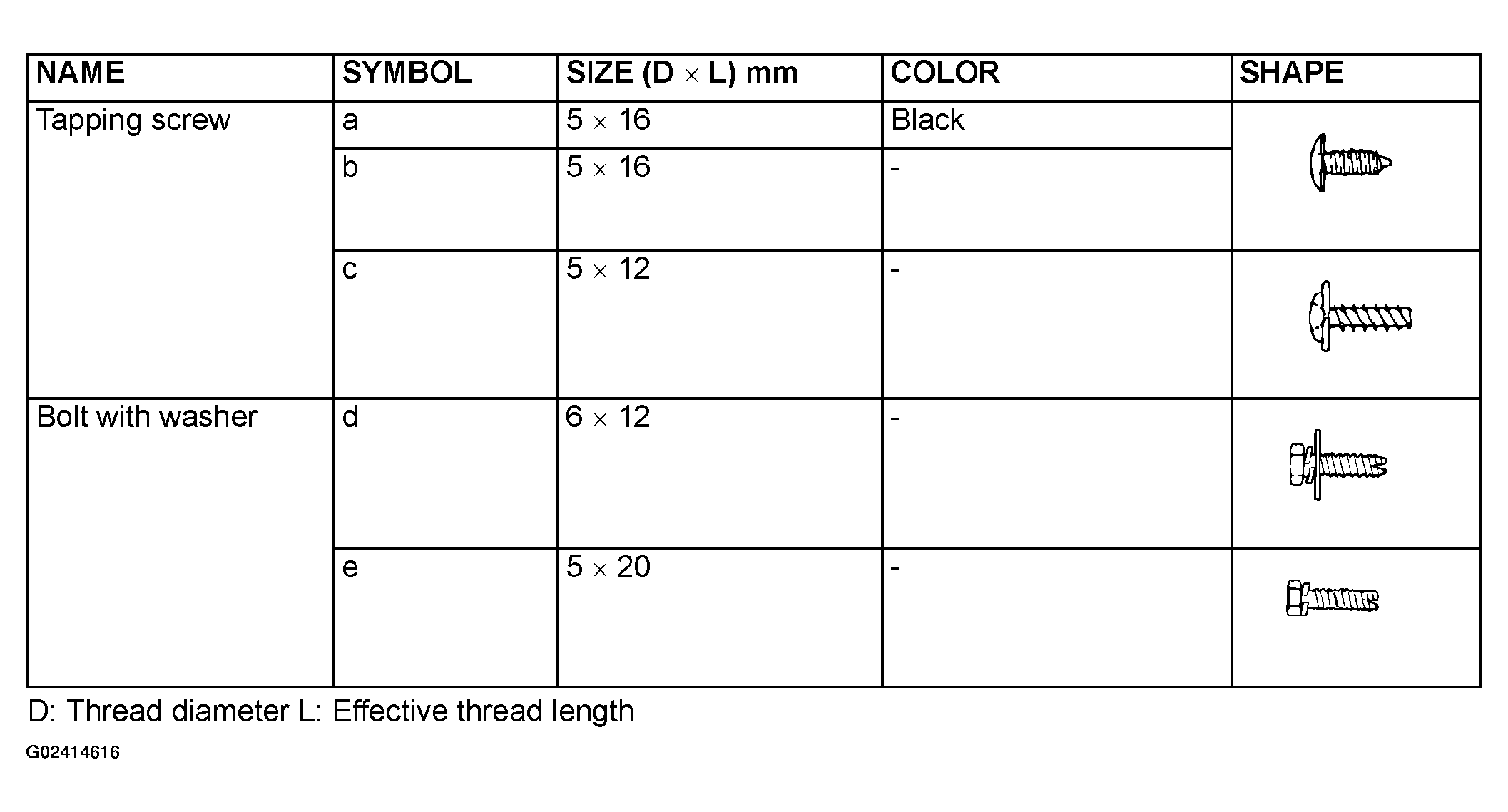

Fig 1: Identifying Bolts And Screws

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION:

Refer to SRS SERVICE PRECAUTIONS and AIR BAG MODULE AND CLOCK SPRING before removing the passenger side air bag module.
Do not subject the SRS-ECU to any shocks when removing or installing the instrument panel.

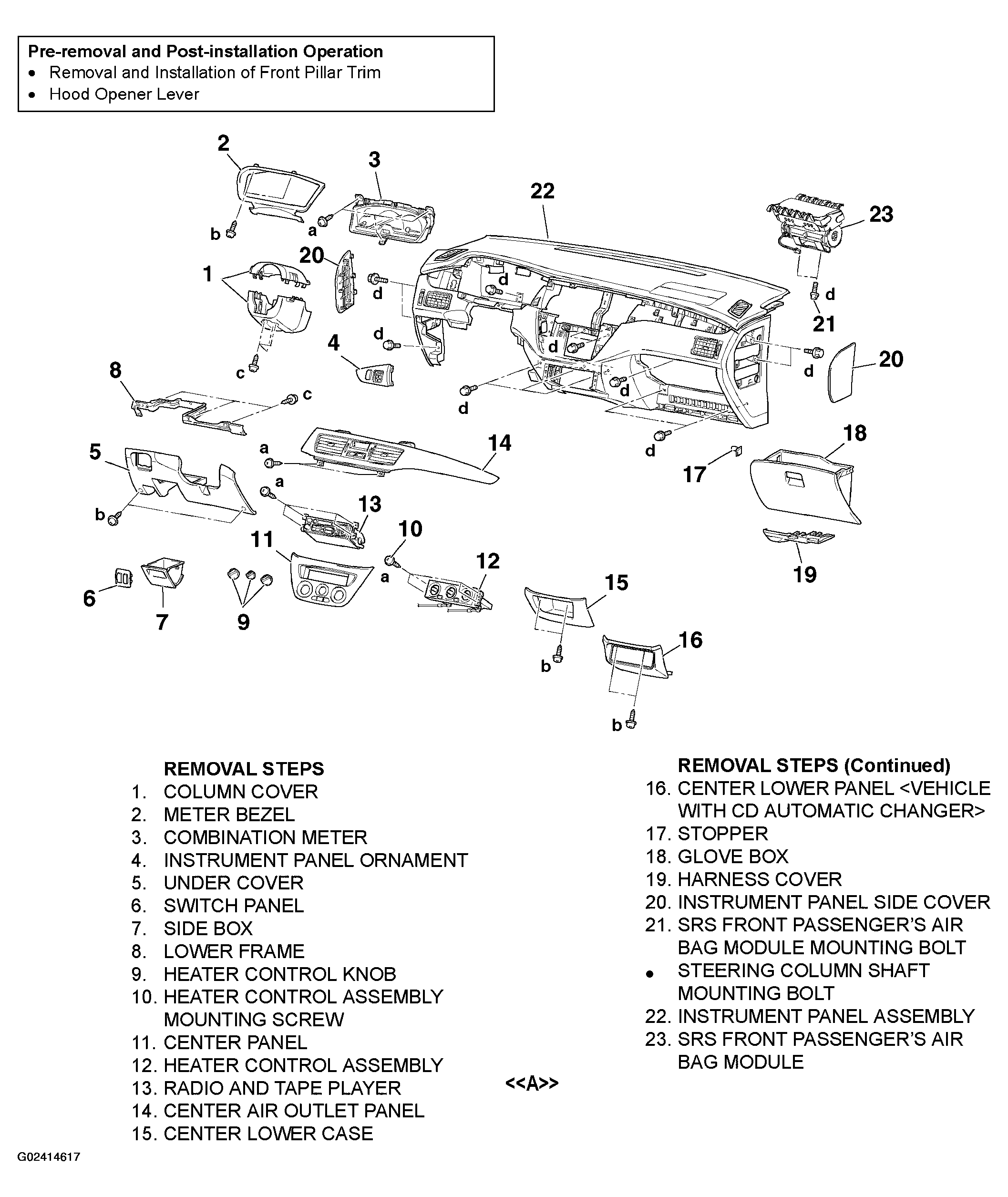

Fig 2: Removing Instrument Panel

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
