<< A >> Console Lid Assembly Removal

WARNING: This page is about a different variant/trim than selected.

Insert the special tool MB990784 into the hinges of the console lid assembly and the rear floor console through the ashtray mounting hole to pry for removal.

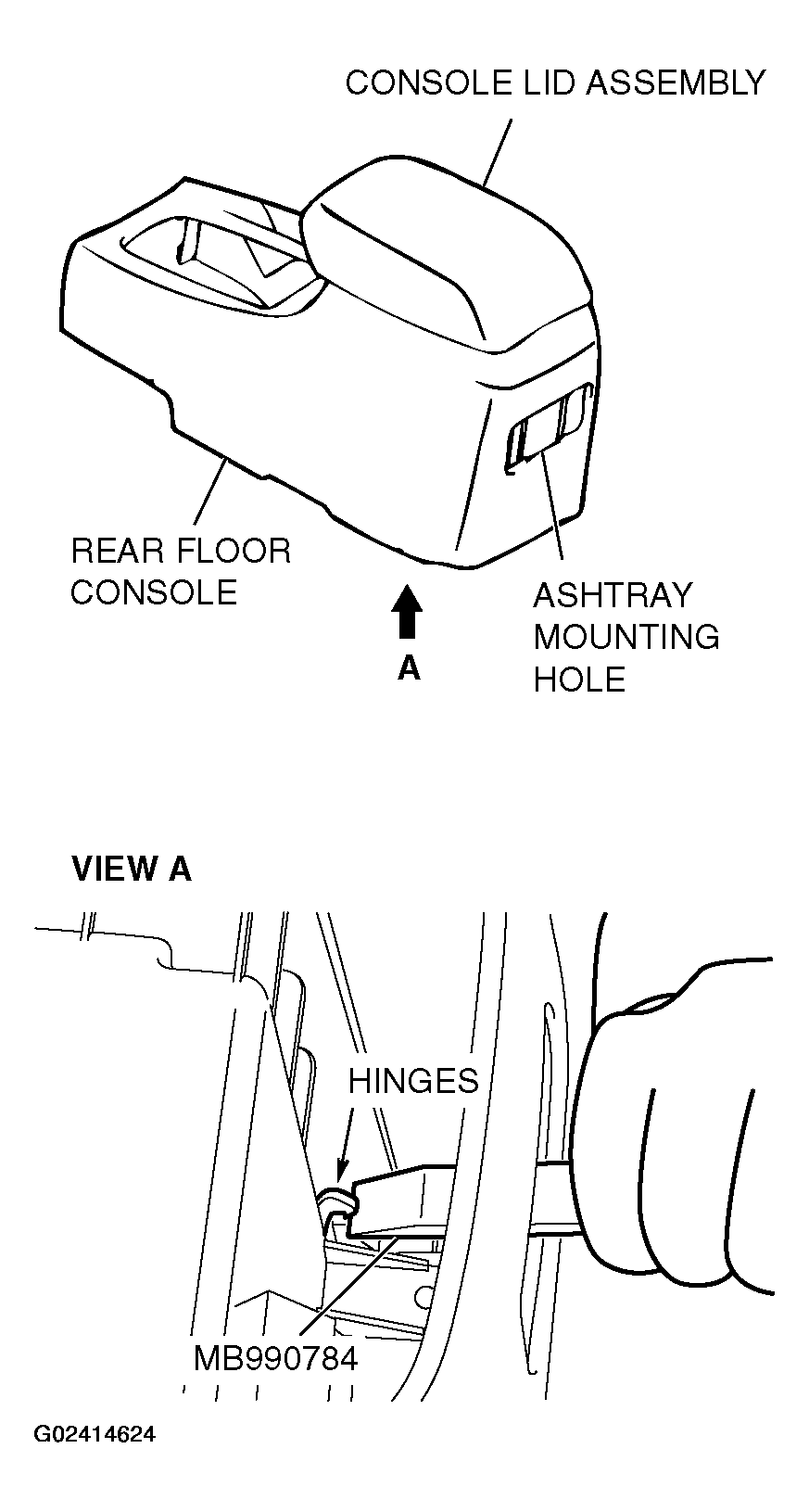

Fig 1: Inserting Special Tool MB990784 Into Hinges Of Console Lid Assembly
G02414624Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
