>> A << Installation Of Rear Seatback Side Assembly LH/Rear Seatback Side Assembly RH

WARNING: This page is about a different variant/trim than selected.

Press the rear seatback side assembly in the direction shown in the illustration and fit the attachment wire into the hook securely to install the rear seatback side assembly.

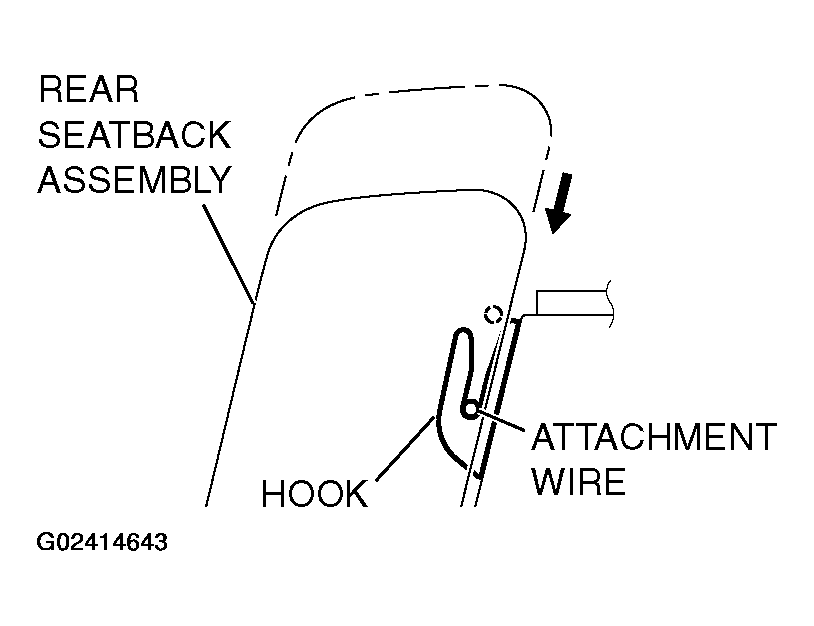

Fig 1: Pressing Rear Seatback Side Assembly In Direction
G02414643Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
