>> B << Installation Of Rear Seatback Assembly LH/Rear Seatback Assembly RH

WARNING: This page is about a different variant/trim than selected.

Place the center hinge bracket of the rear seatback assembly LH on top of the center hinge bracket of the rear seatback assembly RH for installation.

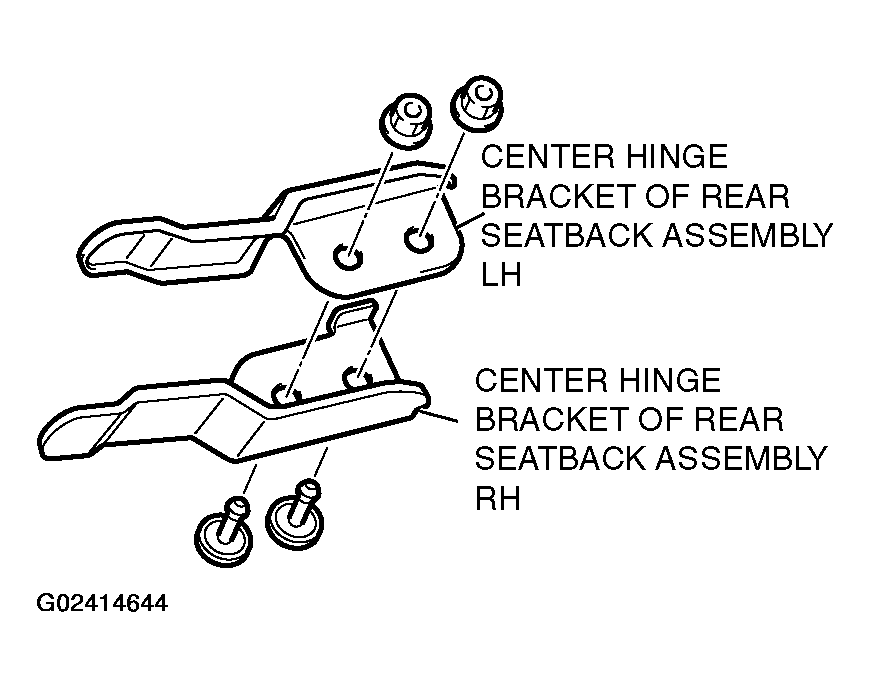

Fig 1: Installing Center Hinge Bracket Of Rear Seatback Assembly LH On Center Hinge Bracket Of Rear Seatback Assembly RH
G02414644Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
