Power Window Sub Switch (E-17) And Power Window Regulator Motor (Rear RH) Connector End View (E-16)

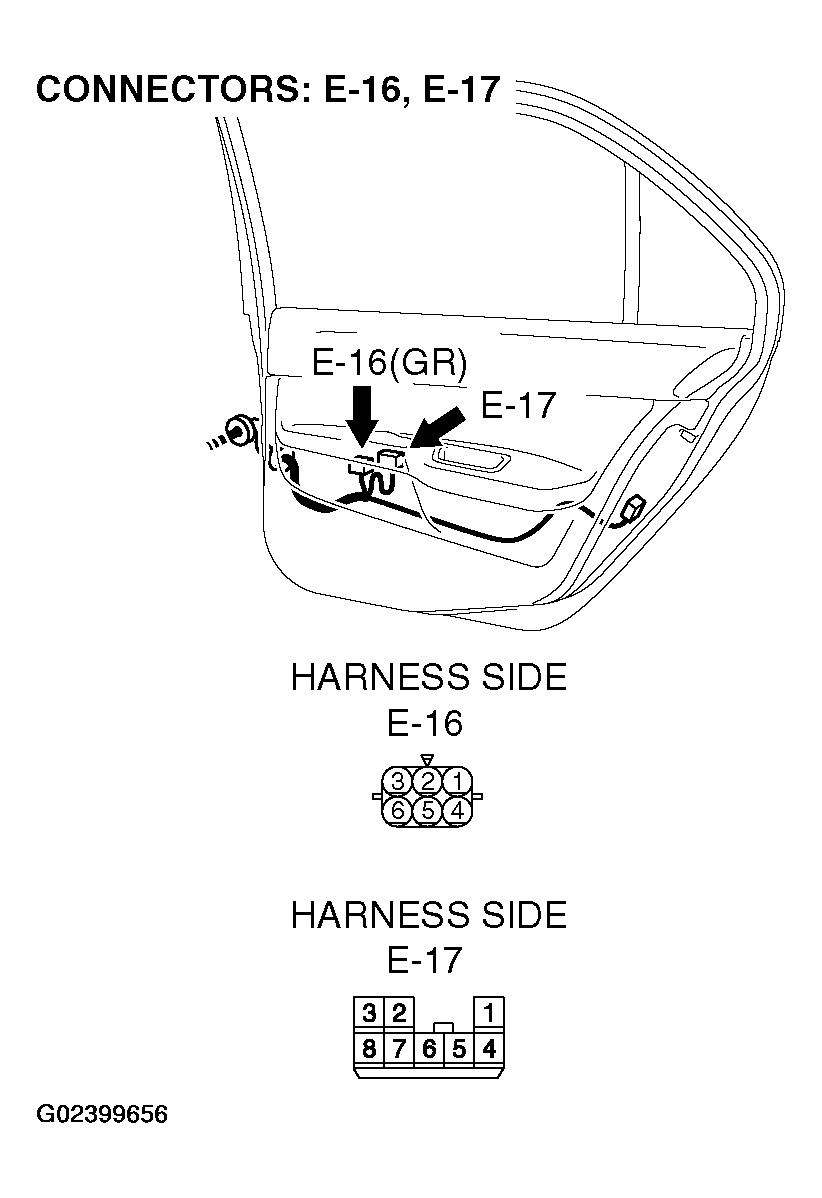

Fig 1: Power Window Sub Switch (E-17) And Power Window Regulator Motor (Rear RH) Connector End View (E-16)
G02399656Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
