Removal And Installation: Notes

< FRONT DOOR TRIM >

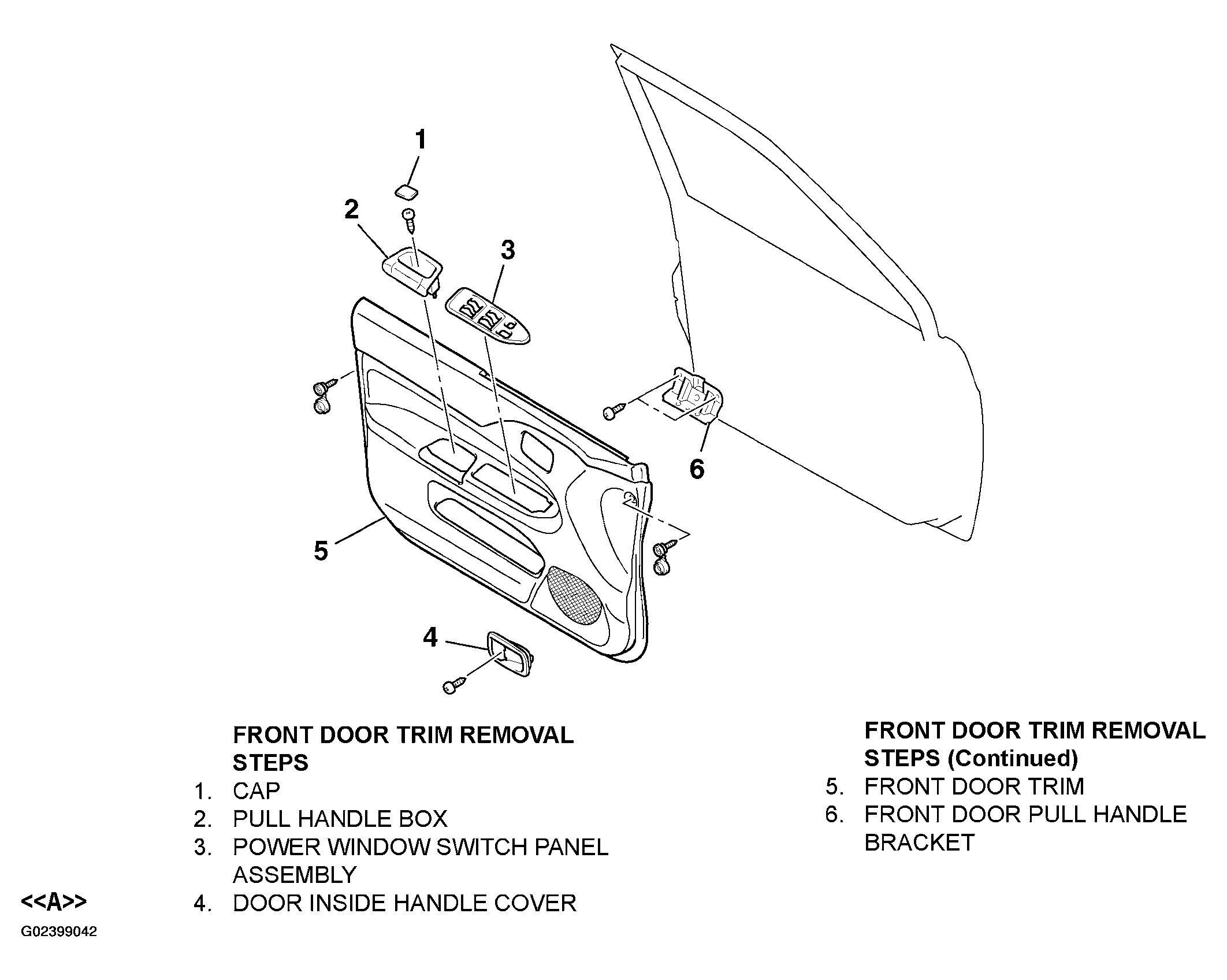

Fig 1: Removing/Installing Front Door Trim
G02399042Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

< REAR DOOR TRIM >

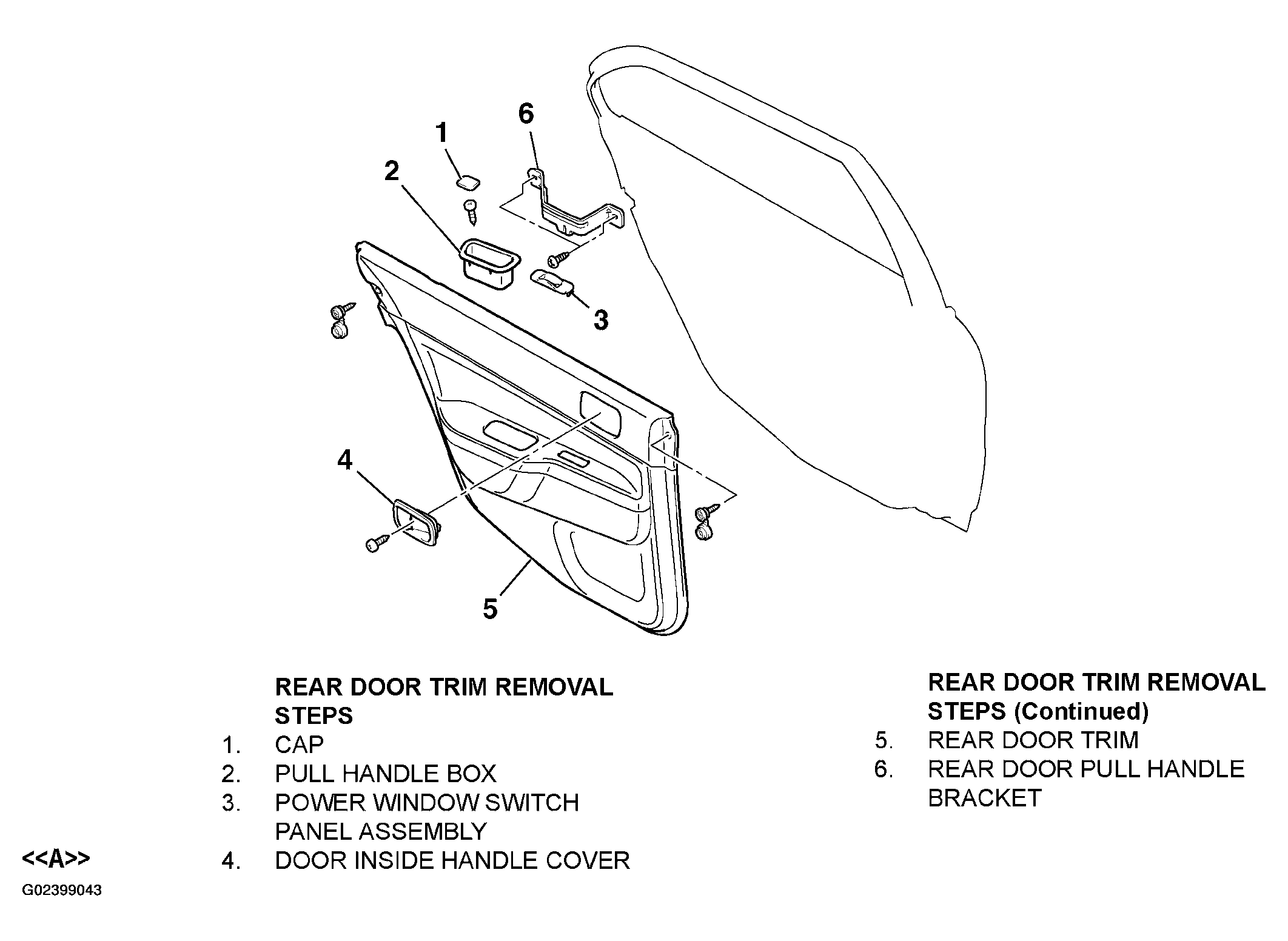

Fig 2: Removing/Installing Rear Door Trim
G02399043Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
