Removal And Installation: Notes

< STANDARD FEATURE >

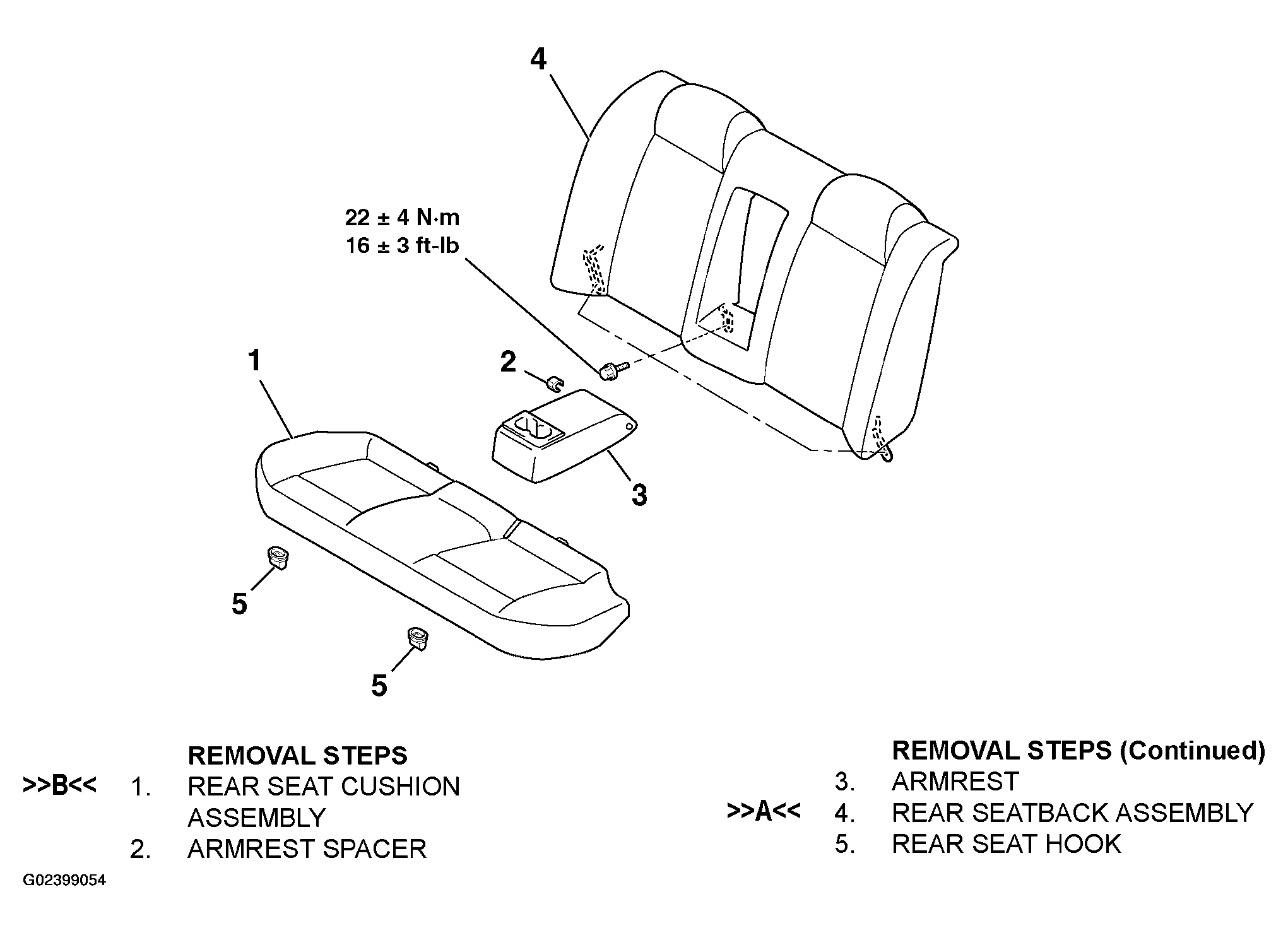

Fig 1: Removing/Installing Rear Seat Assembly (Standard Feature)
G02399054Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

< OPTION >

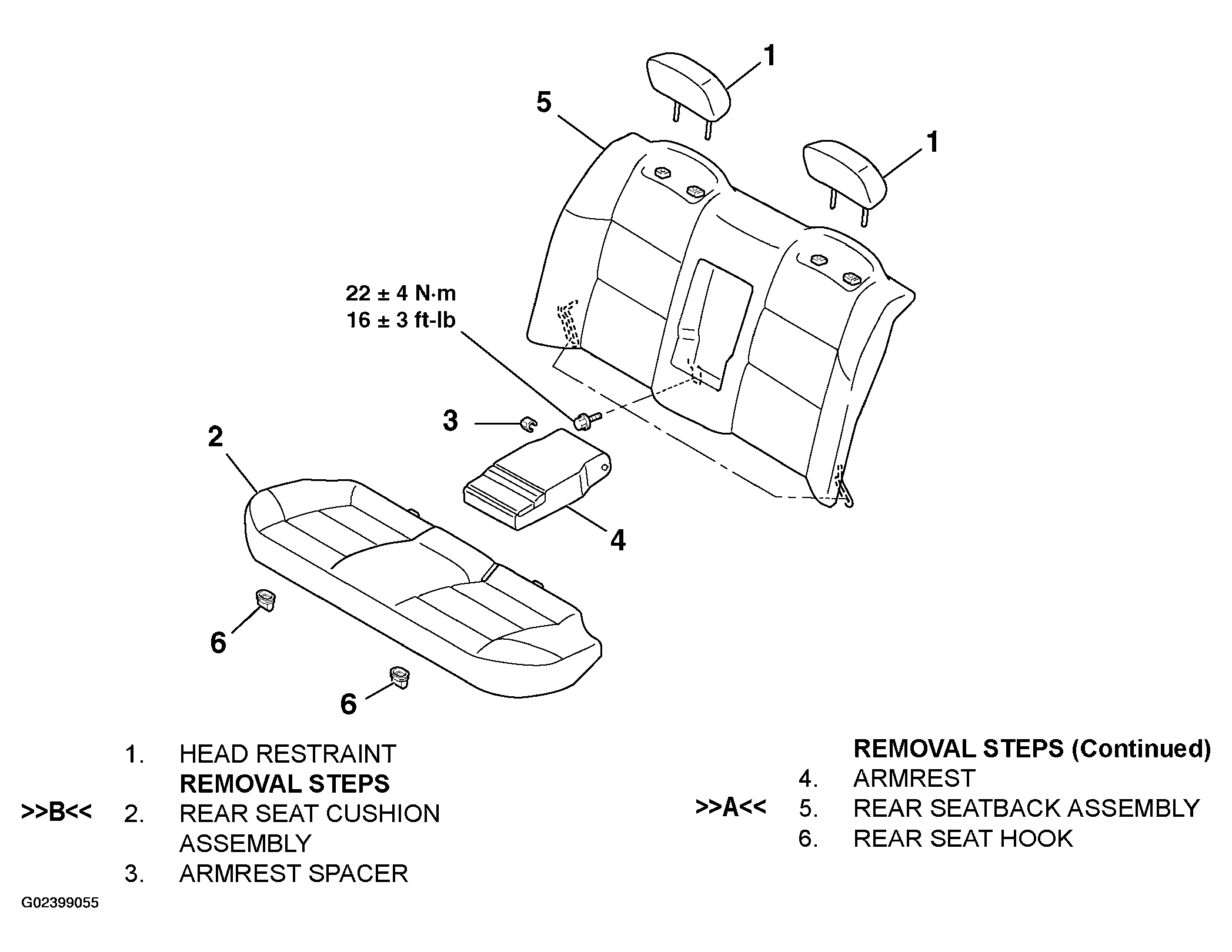

Fig 2: Removing/Installing Rear Seat Assembly (Option)
G02399055Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
