INSPECTION PROCEDURE 1: Communication with scan tool MB991958 is not possible (Communication is not possible with SRS).: Notes

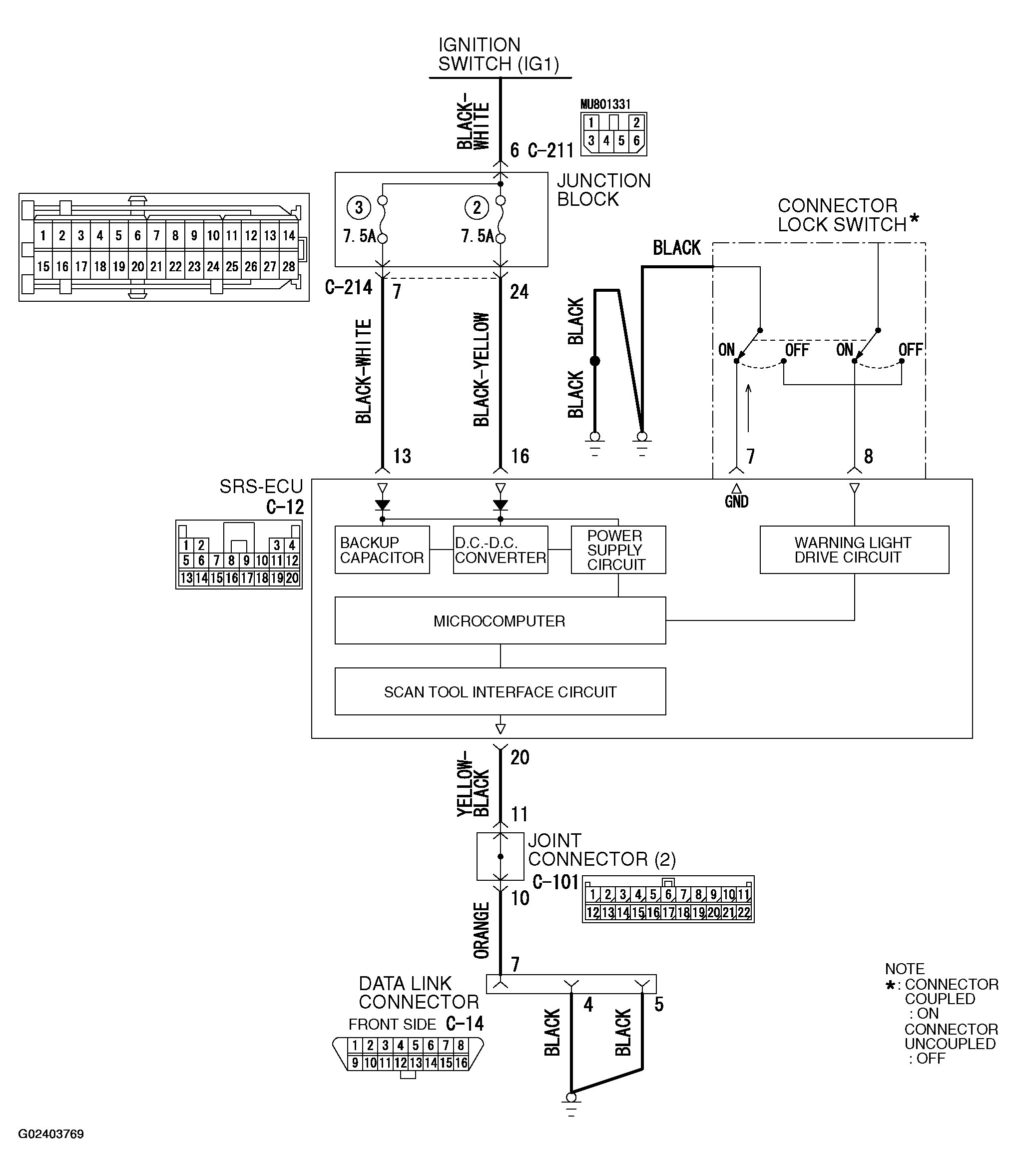

Fig 1: SRS-ECU Power Supply Circuit Diagram (1 Of 2)
G02403769Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

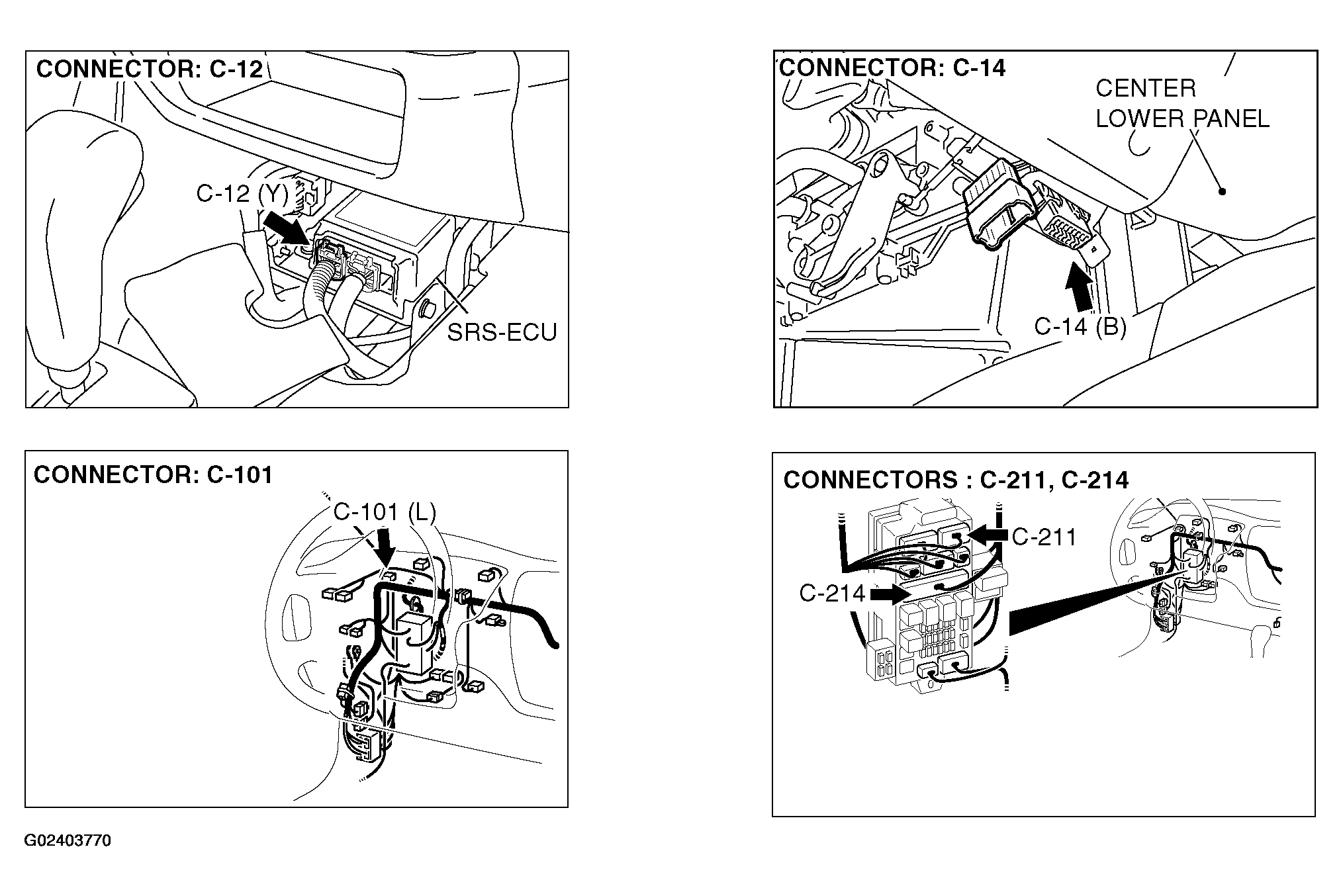

Fig 2: SRS-ECU Power Supply Circuit Diagram (2 Of 2)
G02403770Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
