Construction Diagram

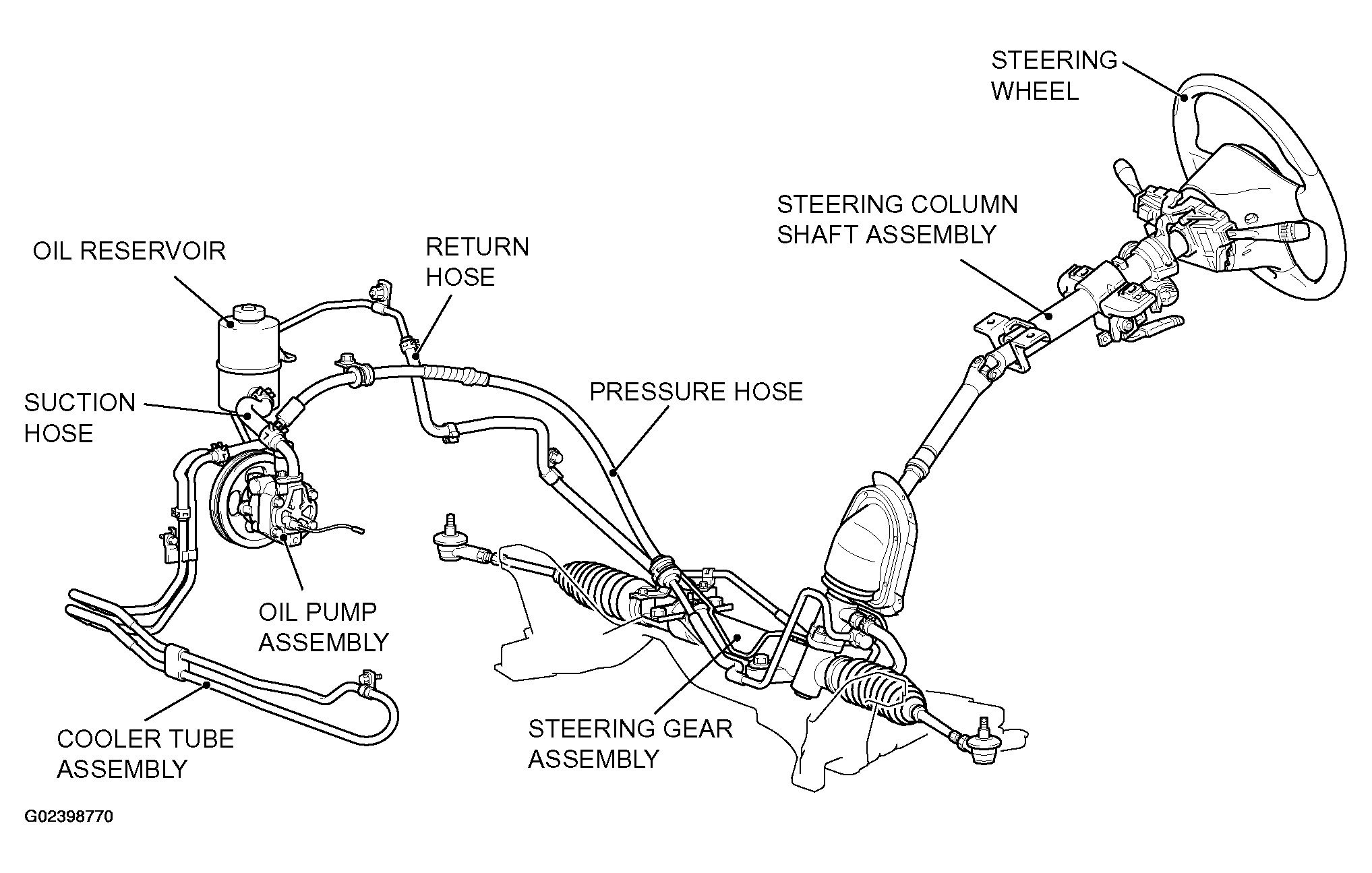

Fig 1: Identifying Power Steering Construction Diagram
G02398770Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
