<< C >> Front Axle No.1 CROSSMEMBER Assembly Removal

Retain the crossmember with a transmission jack, and then remove the crossmember mounting bolt.

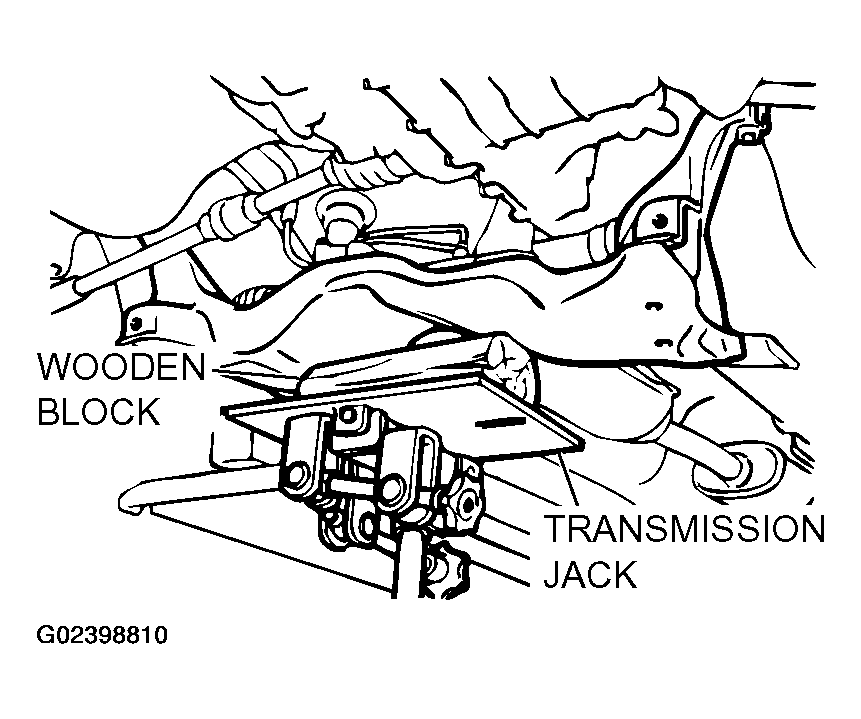

Fig 1: Removing Crossmember Mounting Bolt Using Transmission Jack
G02398810Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
