>>A<< O-Ring Installation

O RING IDENTIFICATION

No. ID X Width mm (in)
1 11.0x1.9(0.43x0.07)
2 13.0x1.9(0.51x0.07)

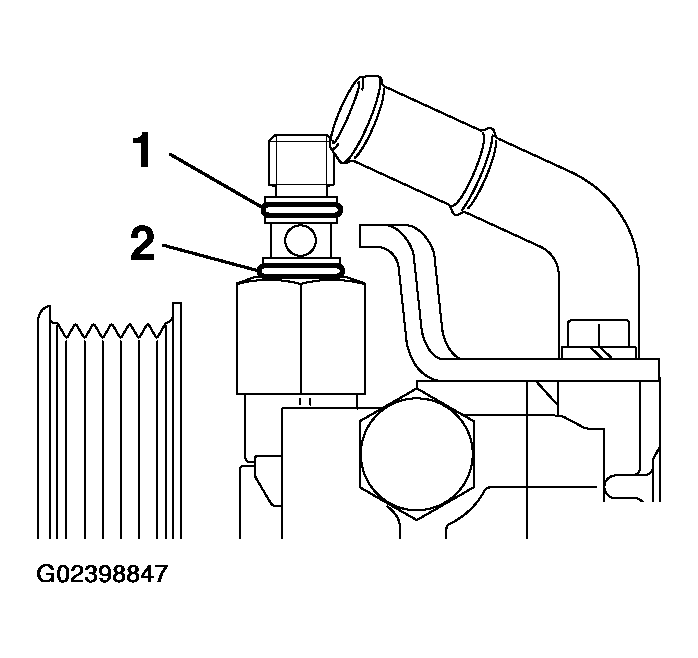

Fig 1: Installing O-Ring
G02398847Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
