>>B<< Pressure Hose/Suction Hose Installation

  1. Install the pressure hose so that the notch is fixed with bracket as shown in the illustration.
  2. Install the suction hose so that the marking is positioned as shown in the illustration.

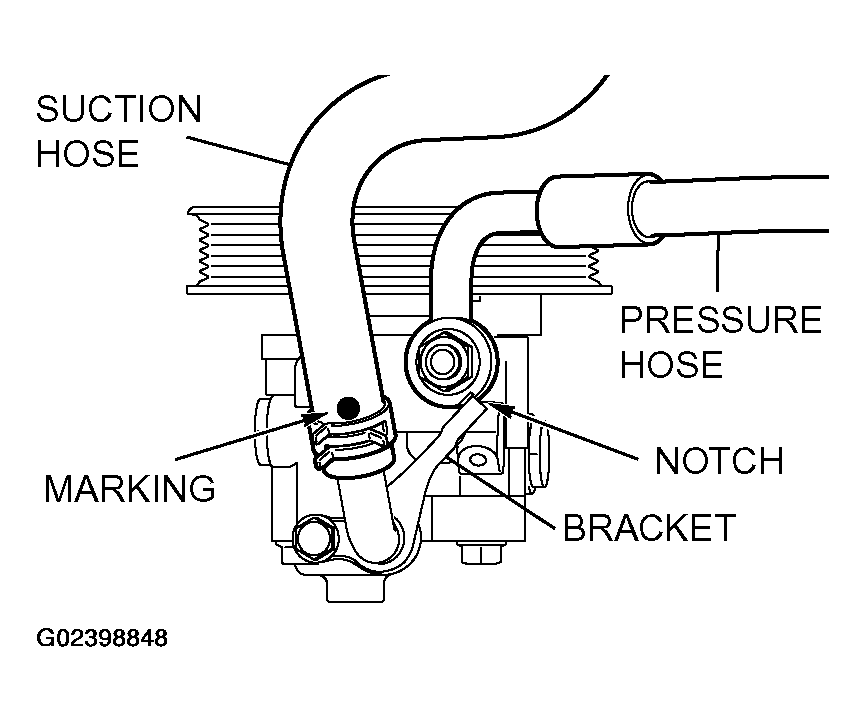

    Fig 1: Installing Suction Hose
    G02398848Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
