Removal And Installation

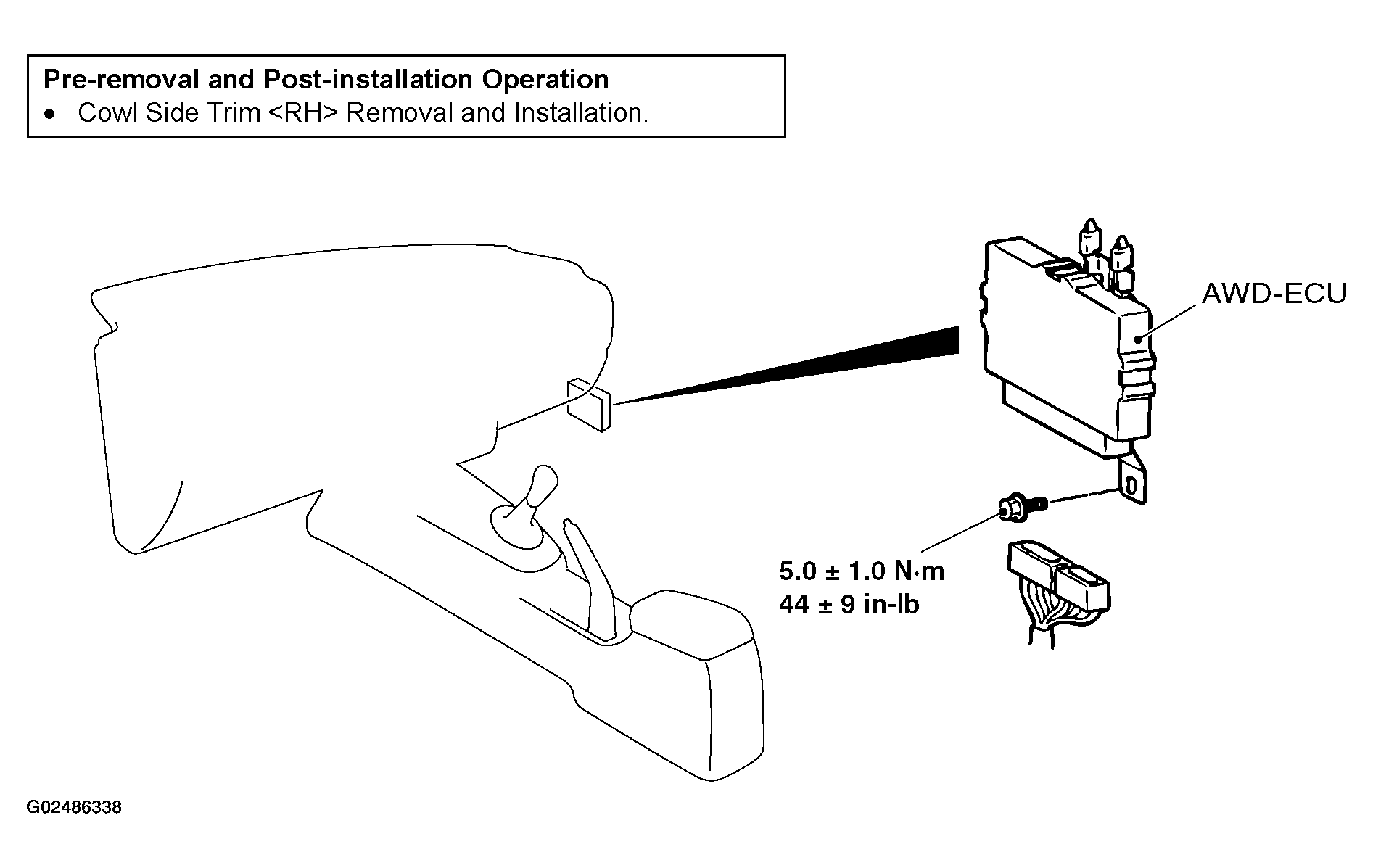

Fig 1: Removing/Installing AWD-ECU
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
