On-Vehicle Service - Evolution: General Description

W5M51 and W6MAA models have been established.

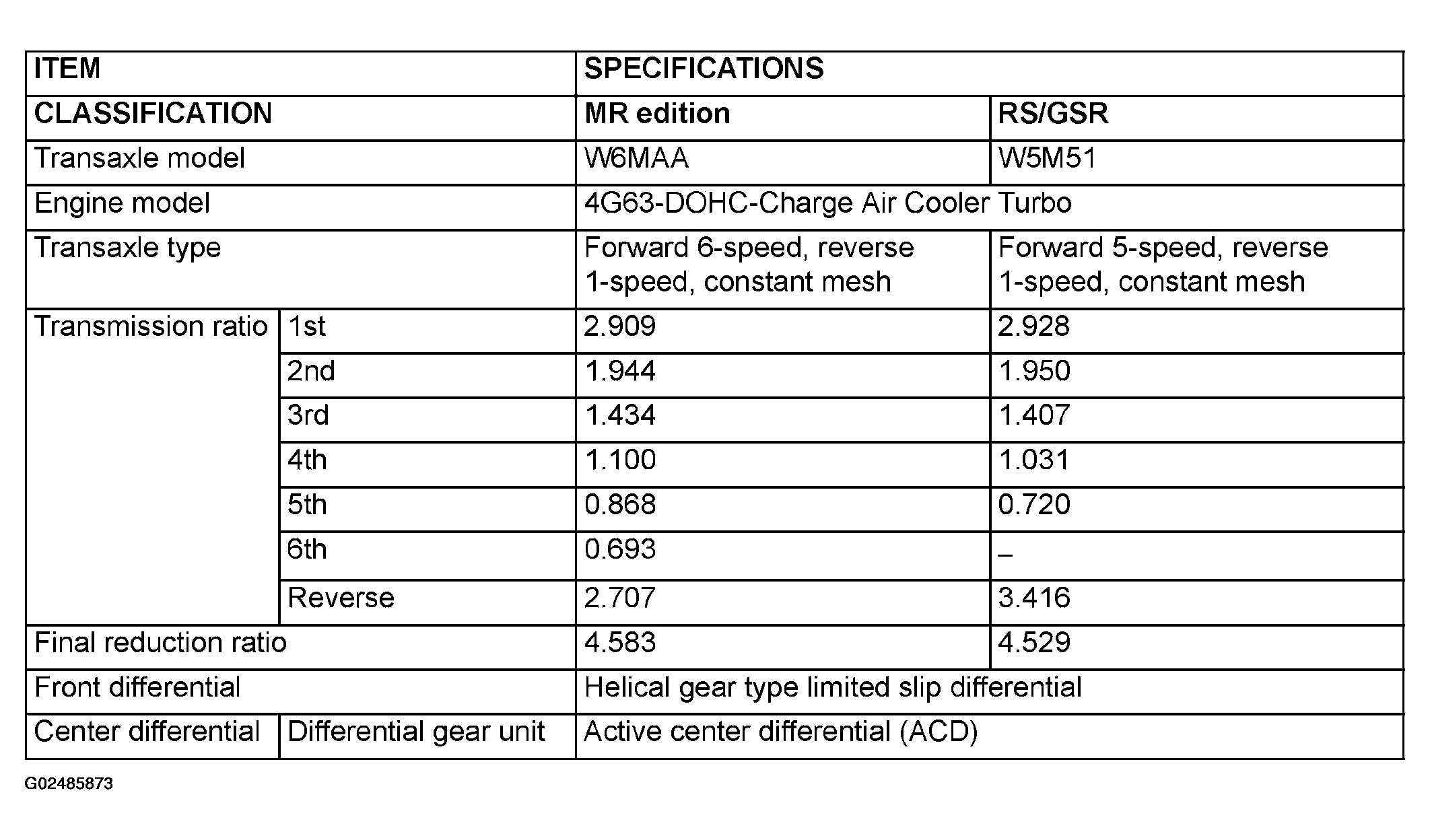

Fig 1: Manual Transaxle Item Specifications
G02485873Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
