DTC 31: Steering Angular Velocity Sensor (ST-1, ST-2, ST-N) System: Notes

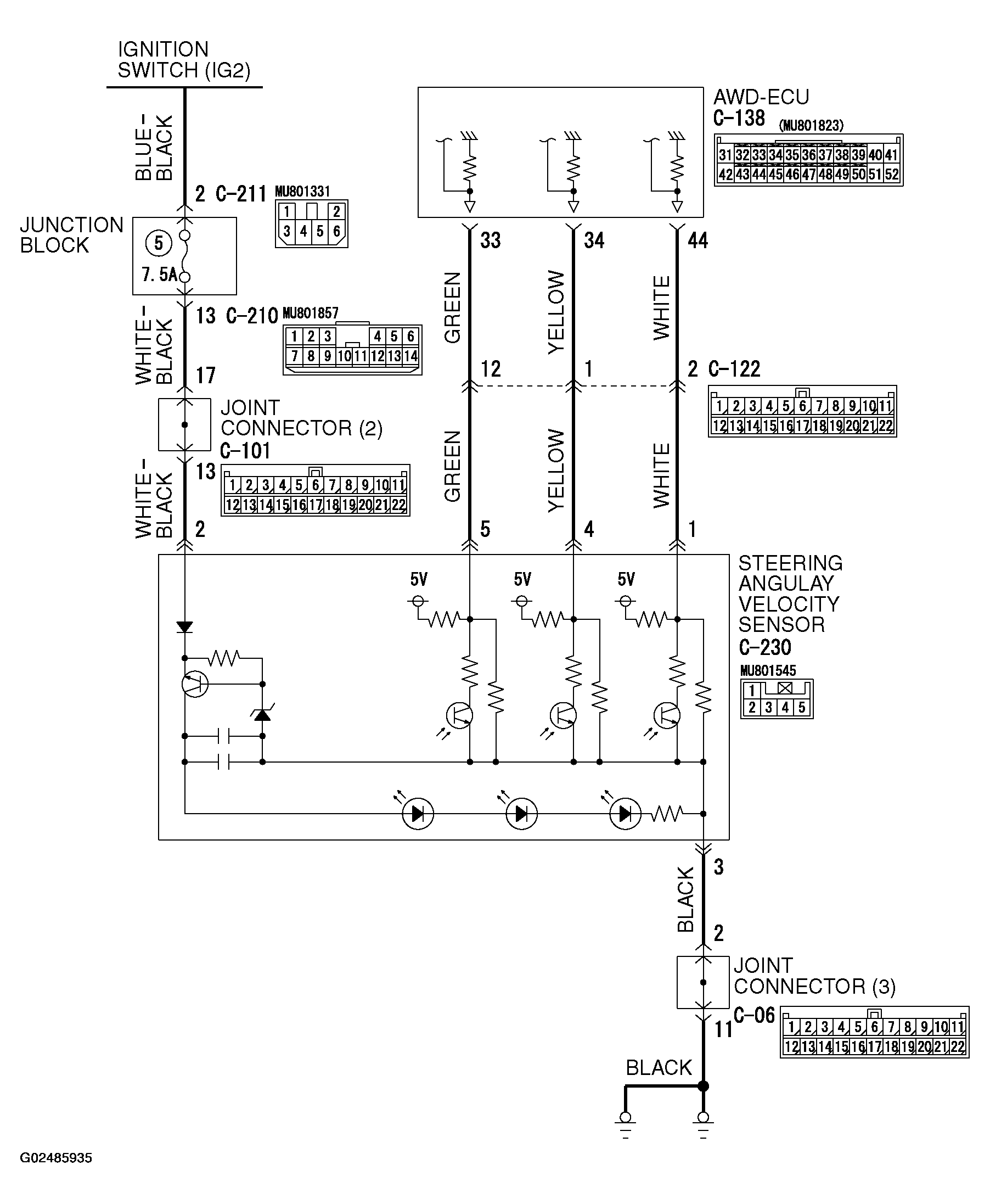

Fig 1: Steering Angular Velocity Sensor System Circuit - Wiring Diagram (1 Of 2)
G02485935Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

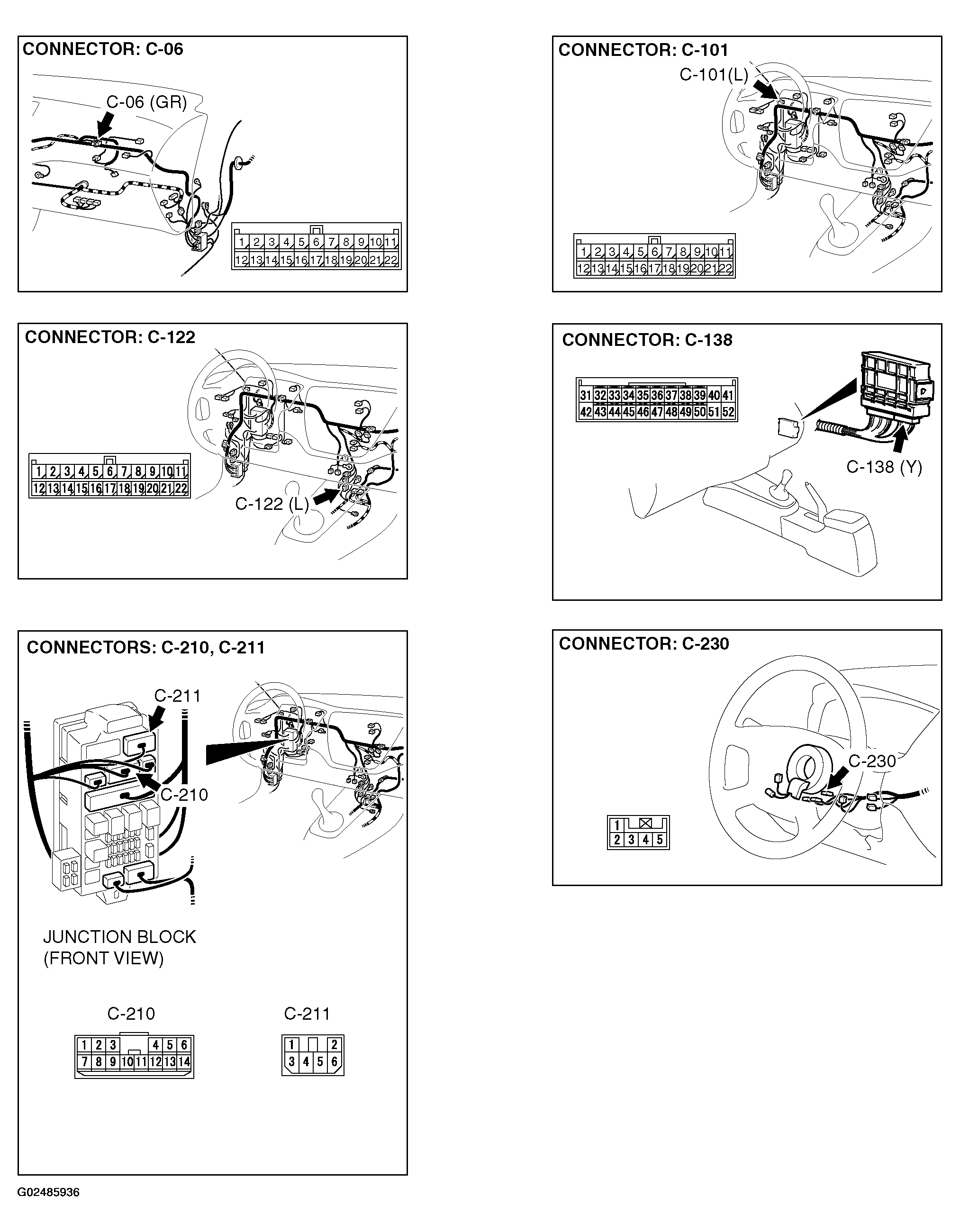

Fig 2: Steering Angular Velocity Sensor System Circuit - Wiring Diagram (2 Of 2)
G02485936Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
