DTC 74: Proportioning Valve System: Notes

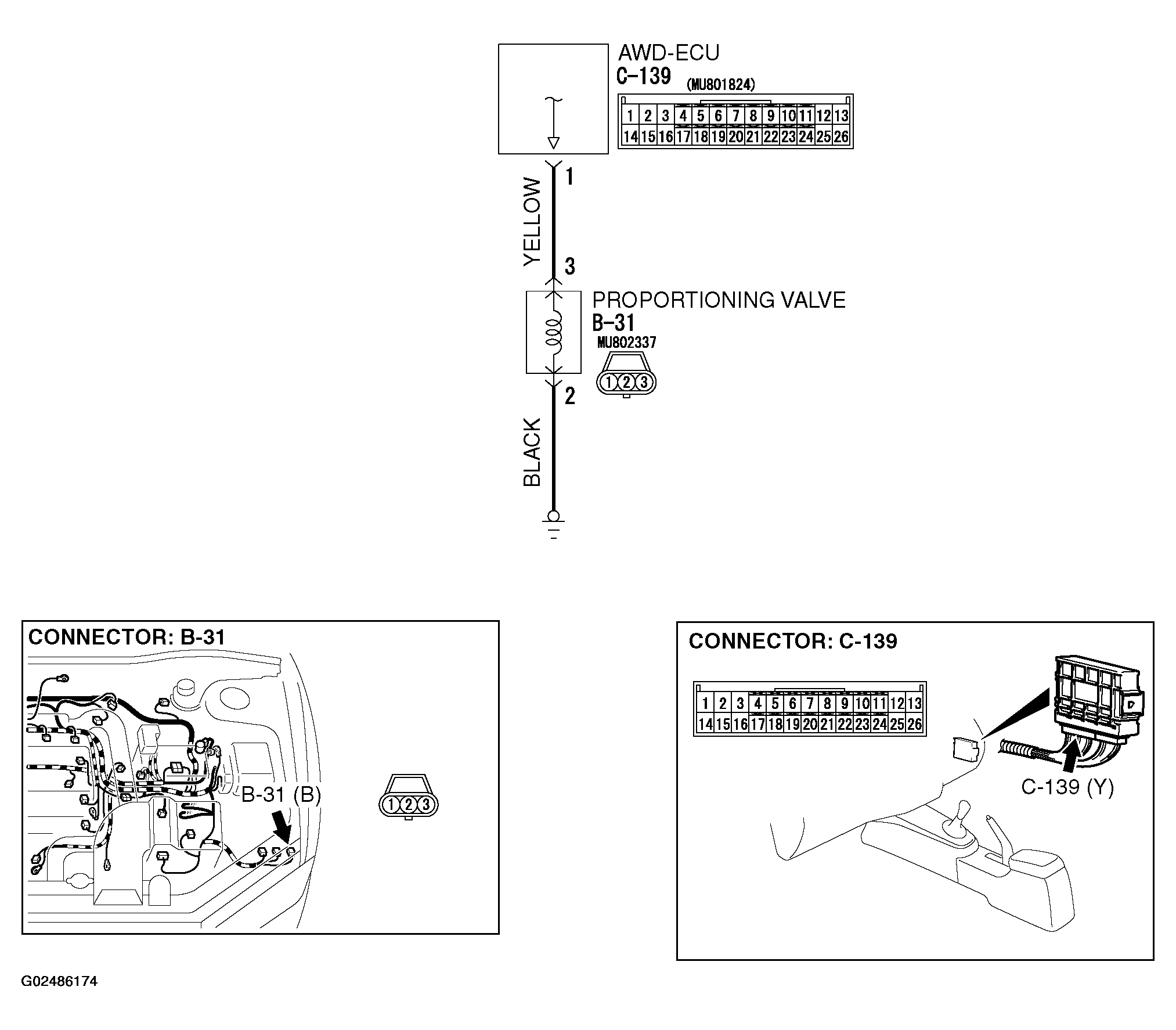

Fig 1: Proportioning Valve System Circuit - Wiring Diagram
G02486174Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
