Transfer Oil Check

  1. Remove the filler plug.
  2. Check that the oil level is up to the lower edge of the filler plug hole.
  3. Check that the oil is not noticeably dirty. Replace if necessary.
  4. Tighten the filler plug to the specified torque.
    1. Tightening torque: 32 +/- 2 N.m (23 +/- 2 ft-lb)

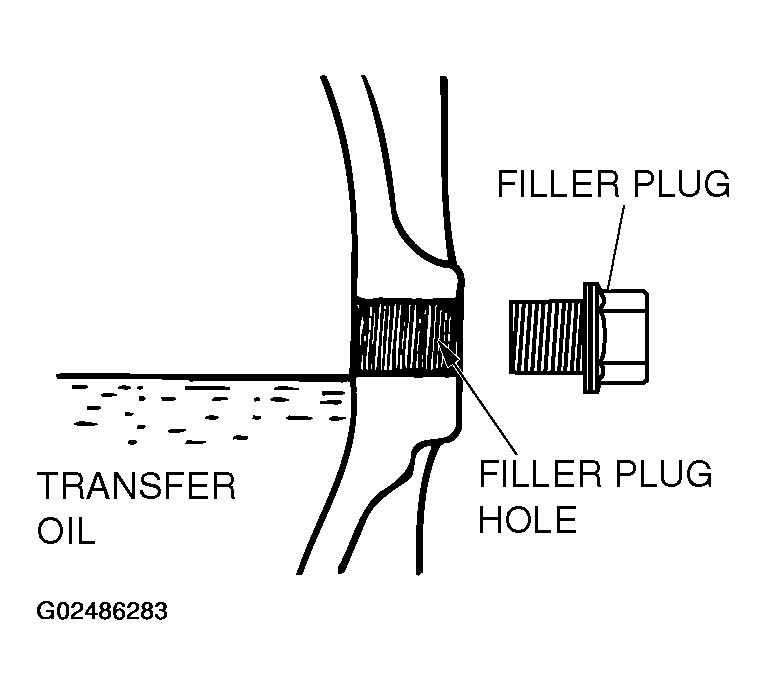

    Fig 1: Checking Transfer Oil Level
    G02486283Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
