Electric Pump Relay Continuity Check

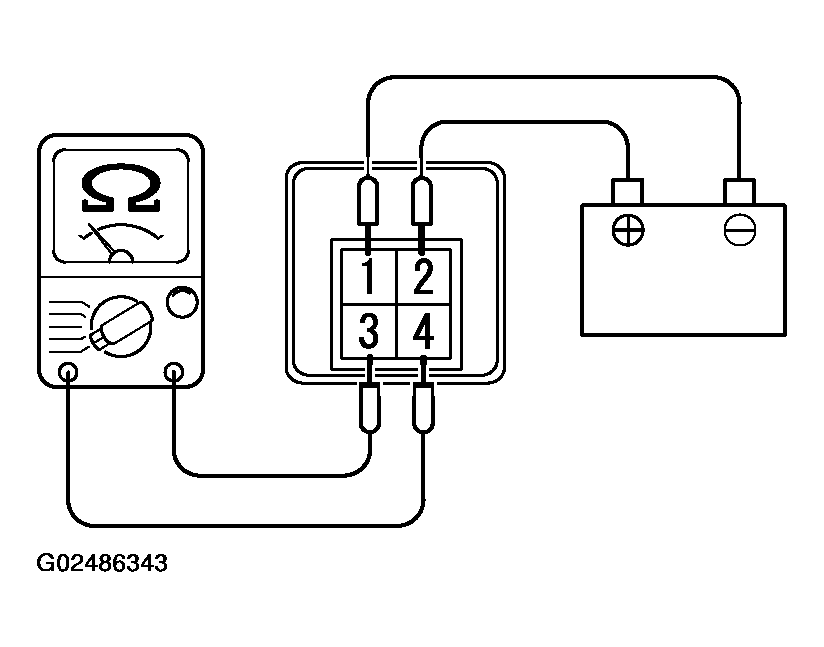

- Using a jumper wire, connect a battery (+) to terminal No.2 of the electric pump relay and battery (-) to terminal No.1.
- While intermittently disconnecting the jumper wire at the battery side, check for continuity between terminals No.3 and No.4 of the electric pump relay.
ELECTRIC PUMP RELAY CONTINUITY
| JUMPER WIRE | CONTINUITY BETWEEN TERMINAL NO.3 - NO.4 |
|---|---|
| Connected | Less than 2 ohms |
| Disconnected | Open circuit |
