Special Tools

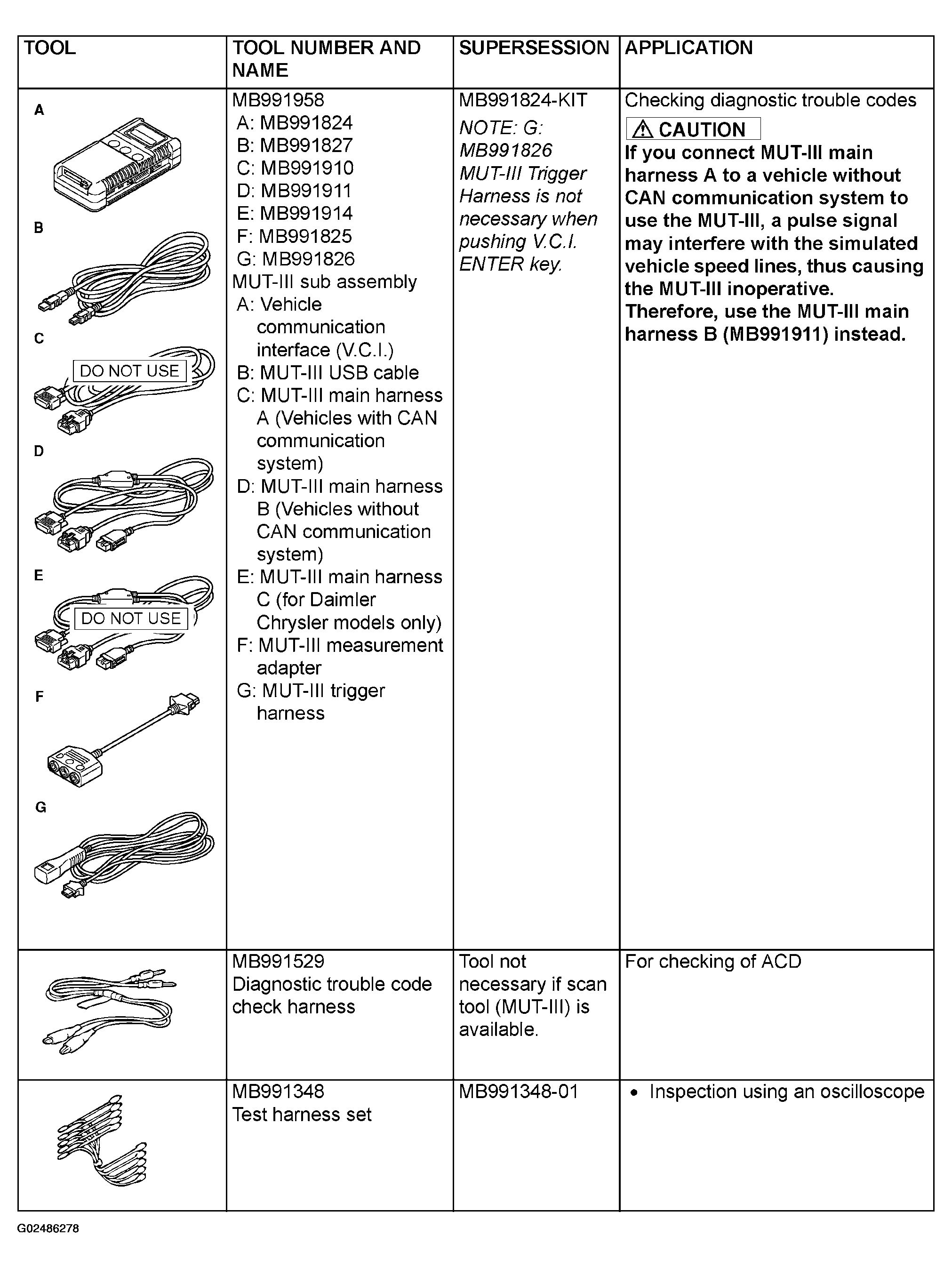

Fig 1: Special Tools Specifications (1 Of 2)
G02486278Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

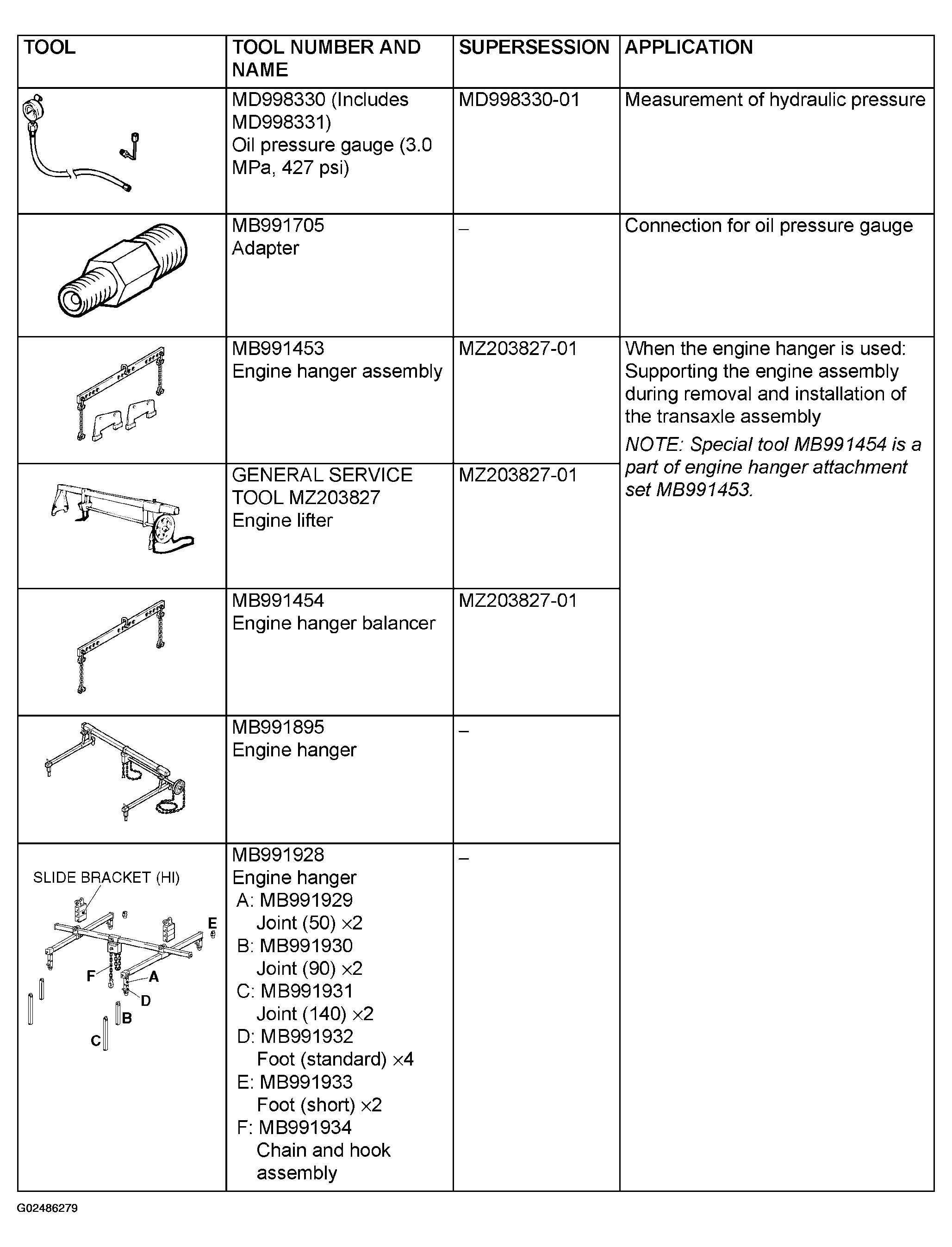

Fig 2: Special Tools Specifications (2 Of 2)
G02486279Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
