<< C >> Engine Assembly Support

< Engine lifter (special tool MZ203827) is used>
1. Set special tools MB991453 and MZ203827 to the vehicle to support the engine assembly.
2. Set special tool MB991453 to hold the engine/transaxle assembly.

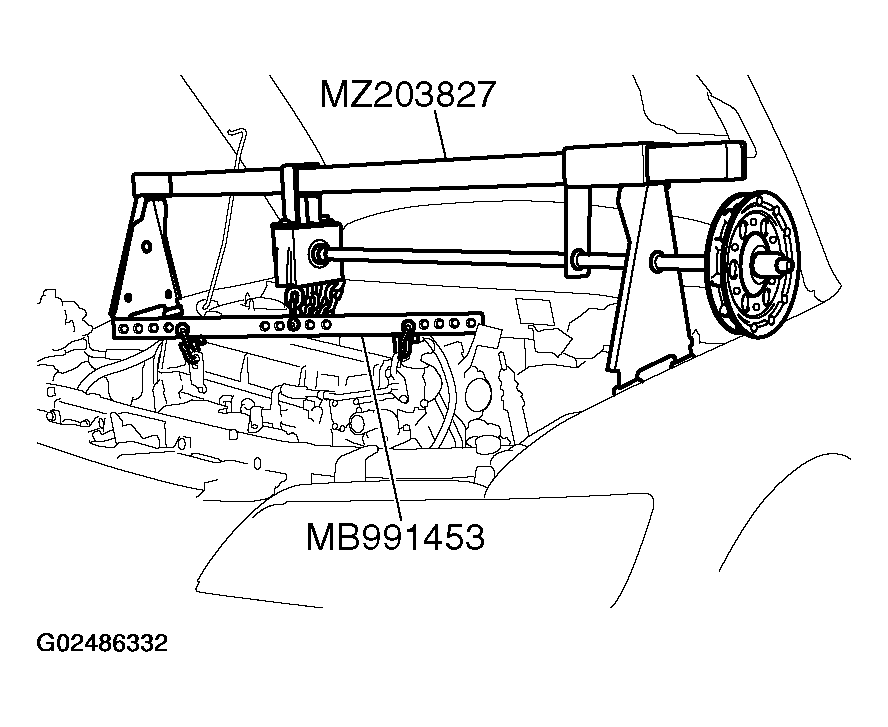

Fig 1: Supporting Engine Assembly Using Engine Lifter (Special Tool MZ203827)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
< Engine hanger (special tool MB991895) is used>
1. Set special tool MB991895 to the strut mounting nuts and the radiator support upper insulator mounting bolts, which are located in the engine compartment, as shown.
2. Set special tool MB991454 to hold the engine/transaxle assembly.

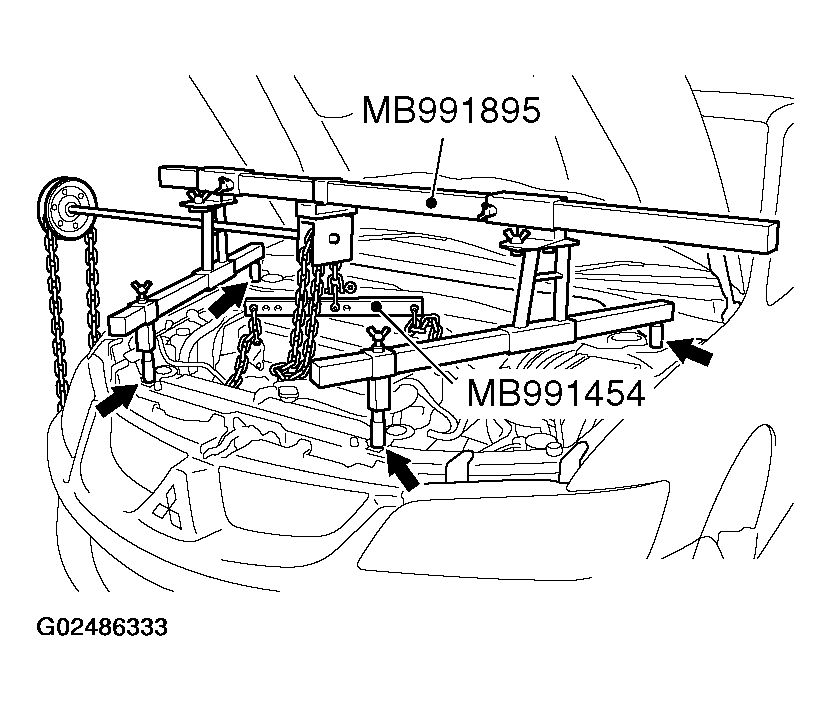

Fig 2: Supporting Engine Assembly Using Engine Hanger (Special Tool MB991895)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
< Engine hanger (special tool MB991928) is used>
1. Assemble the engine hanger (special tool MB991928). Set the following parts to the base hanger.
  - Slide bracket (HI)
  - Foot (standard) (MB991932)
  - Joint (90) (MB991930)

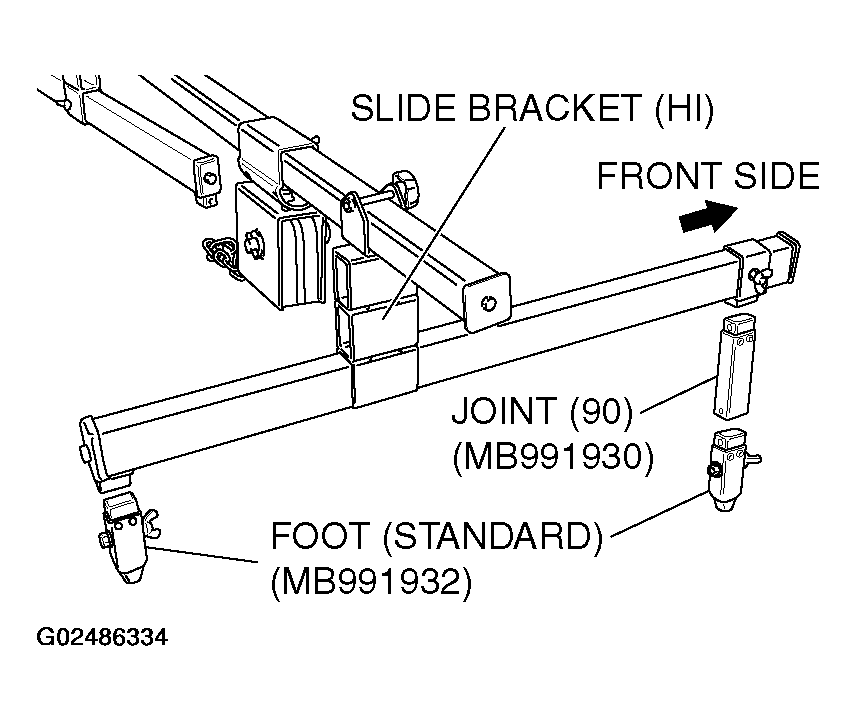

  Fig 3: Supporting Engine Assembly Using Engine Hanger (Special Tool Mb991928)
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Set the engine hanger (special tool MB991928) to the strut mounting nuts and the radiator support upper insulator mounting bolts, which are located in the engine compartment, as shown.
  NOTE: Adjust the engine hanger balance by sliding the slide bracket (HI).
3. Set special tool MB991454 to hold the engine/transaxle assembly.

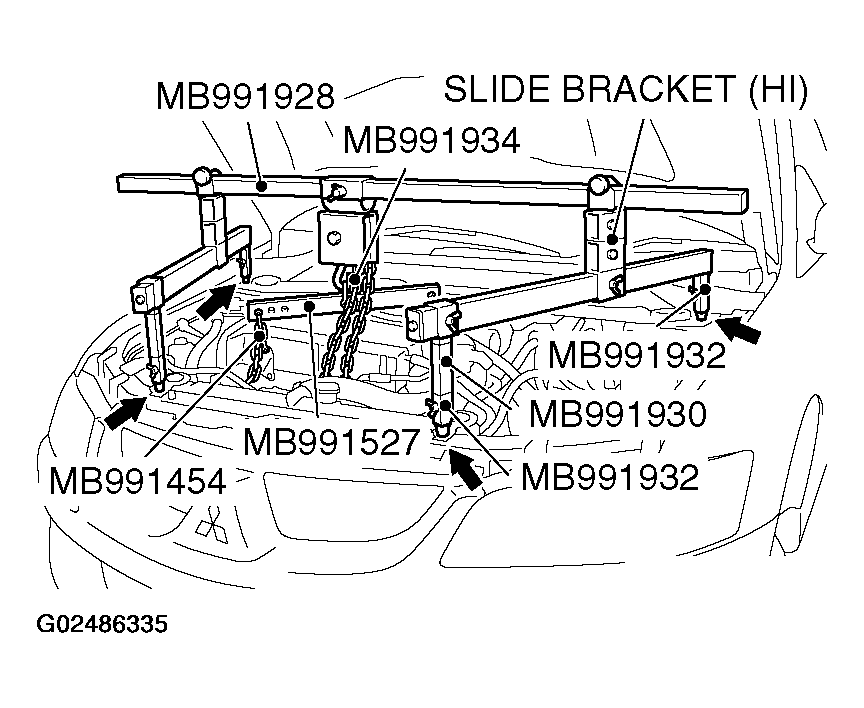

Fig 4: Setting Engine Hanger (Special Tool MB991928) To Strut Mounting Nuts And Radiator Support Upper Insulator Mounting Bolts
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
