>> A << Gear Shift Link Clip Installation
CAUTION:
Insert thoroughly the gearshift link clip, shift cable and select cable until they click in place.

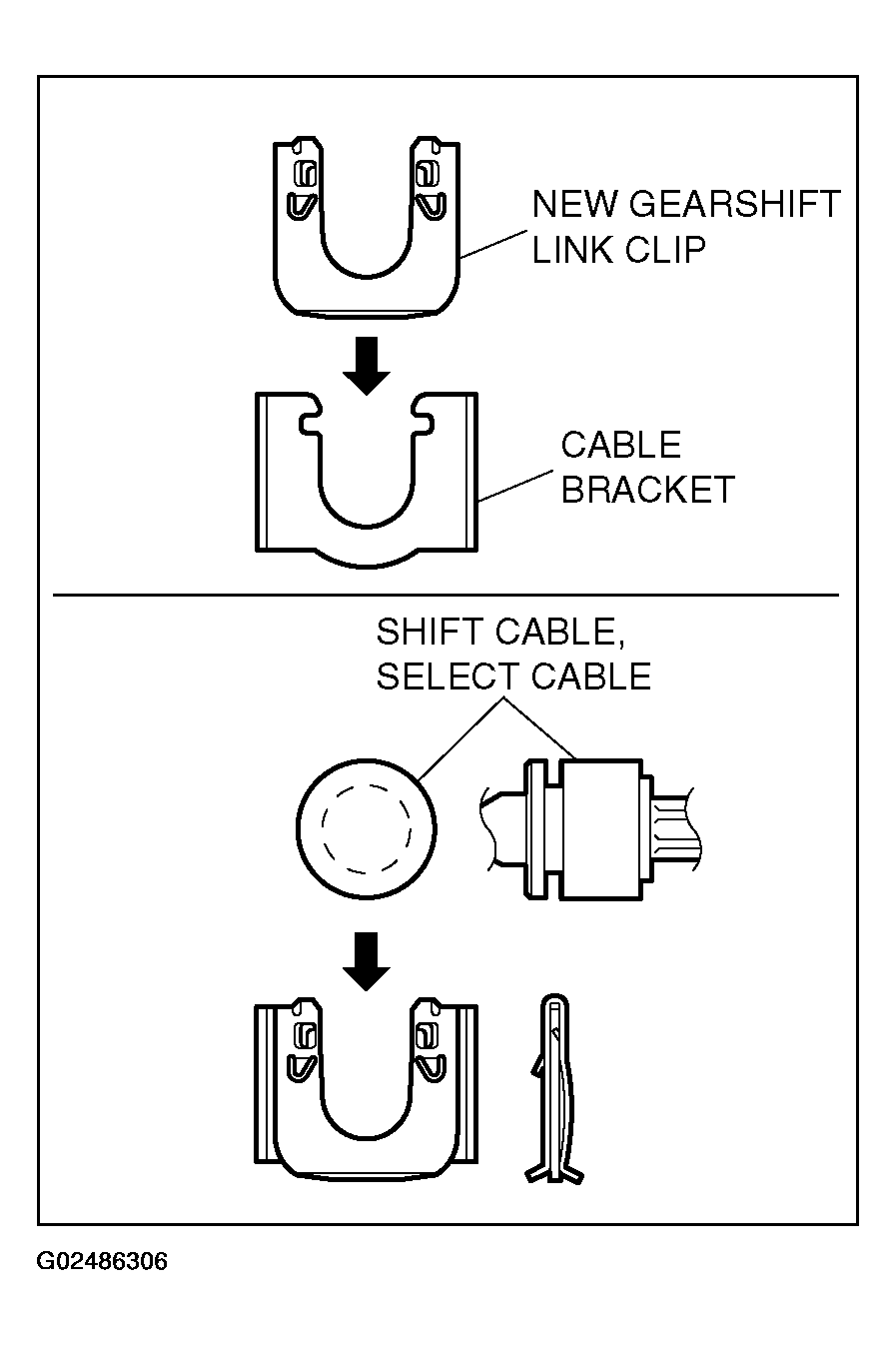

- After installing the new gearshift link clip to the cable bracket of the transaxle, install the shift cable and select cable to the cable bracket.NOTE: The clip is reversible.
- Move the shift lever to all positions and check that the operation is smooth.
