<< A >> Select Cable Connection (Transaxle Side) Removal

Set the clip of the select cable as shown in figure 1 and 2, and disconnect the select cable.

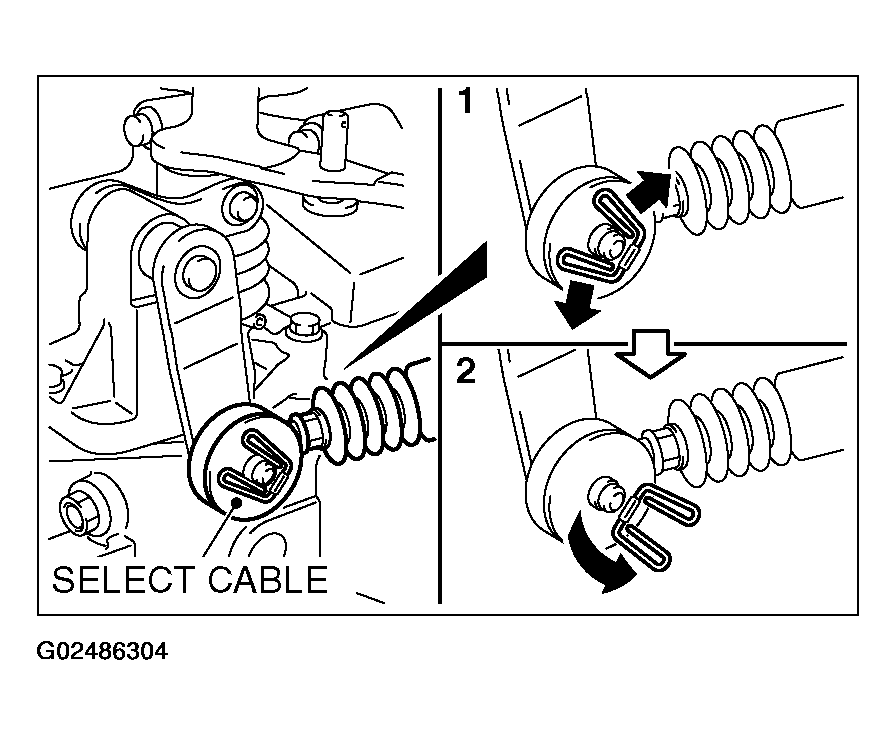

Fig 1: Removing Select Cable Connection (Transaxle Side)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
