<< A >> Transfer Assembly Removal

With the engine mount and transaxle mount installed, roll the engine and transaxle assembly towards the front of the vehicle, and remove the transfer assembly from between the engine block and crossmember.

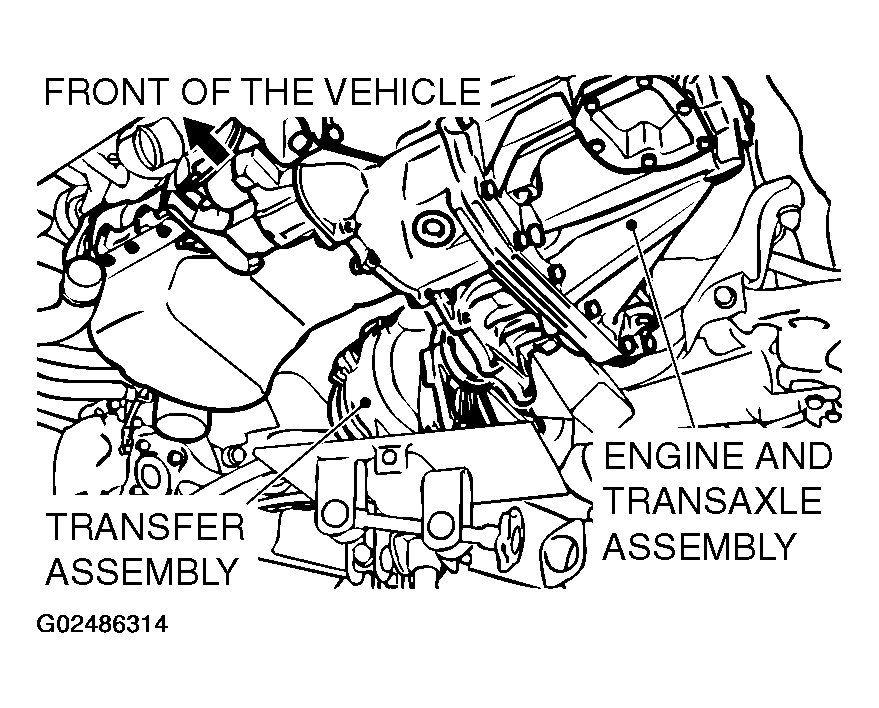

Fig 1: Removing Transfer Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
