Disassembly And Assembly: Notes

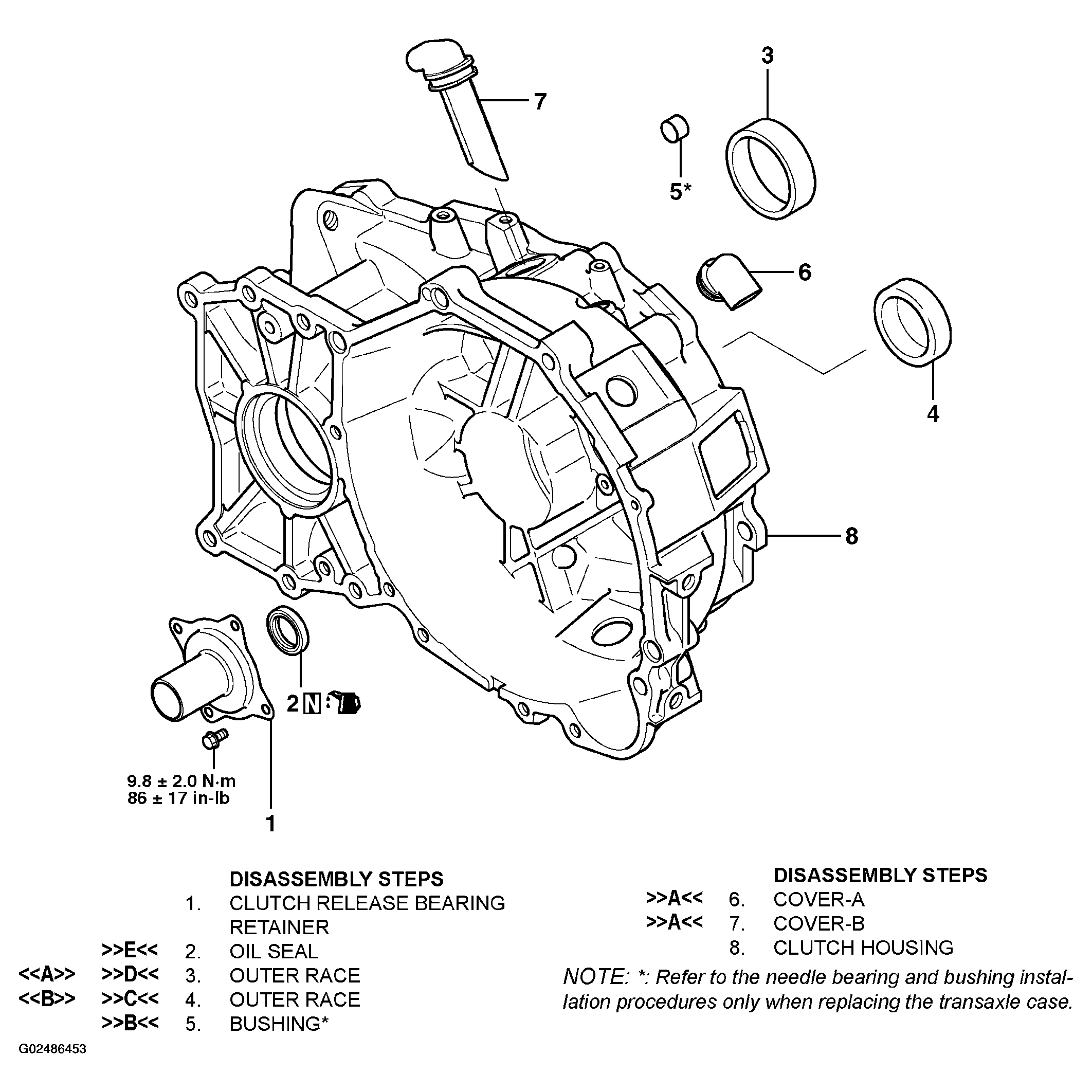

Fig 1: Disassembling/Assembling Clutch Housing

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB990928: Installer Adapter
• MB990935: Installer Adapter
• MB990938: Handle
• MB991445: Bushing Remover and Installer Base
• MD999566: Claw
