>> F << Synchronizer Sleeve Installation

  1. Check the installation direction of the synchronizer sleeve, and install it onto the 3rd-4th speed synchronizer hub.

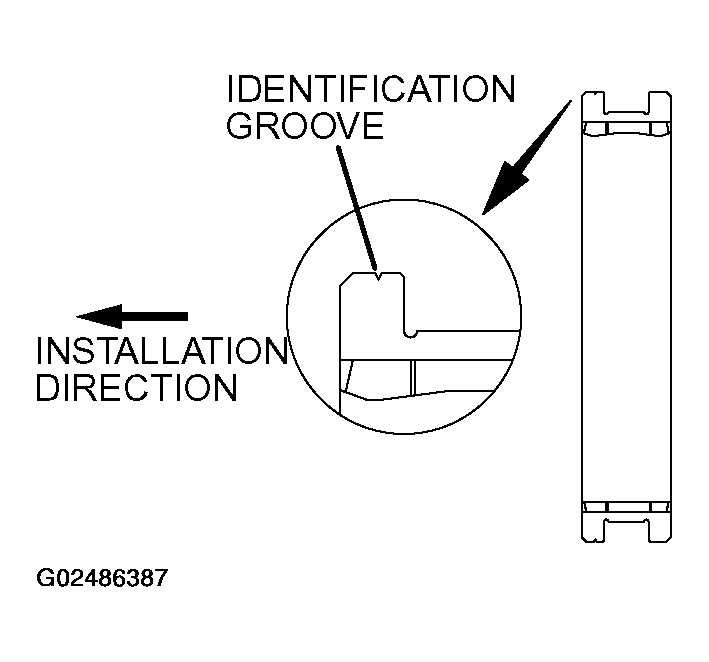

    Fig 1: Identifying Installation Direction Of Synchronizer Sleeve
    G02486387Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Install the synchronizer sleeve so that the areas with teeth that have raised tips (three areas total) are aligned with the areas on the synchronizer hub that have deep grooves between the teeth (three areas total).

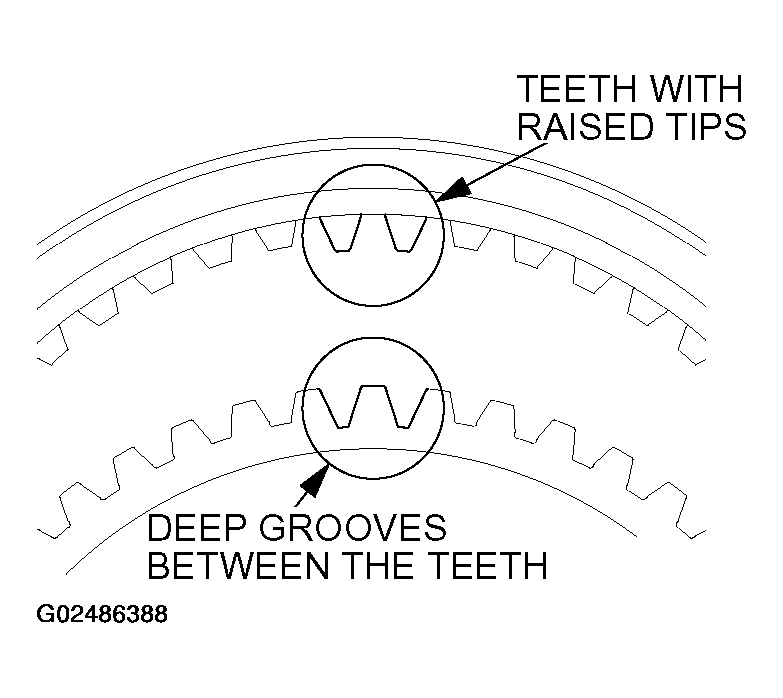

    Fig 2: Aligning Synchronizer Sleeve Raised Tips Teeth With Synchronizer Hub Teeth Deep Grooves
    G02486388Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
