>> F << Synchronizer Sleeve Installation

  1. Check that the synchronizer sleeve is in the correct direction for installation, and install it on the 1st-2nd speed synchronizer hub.

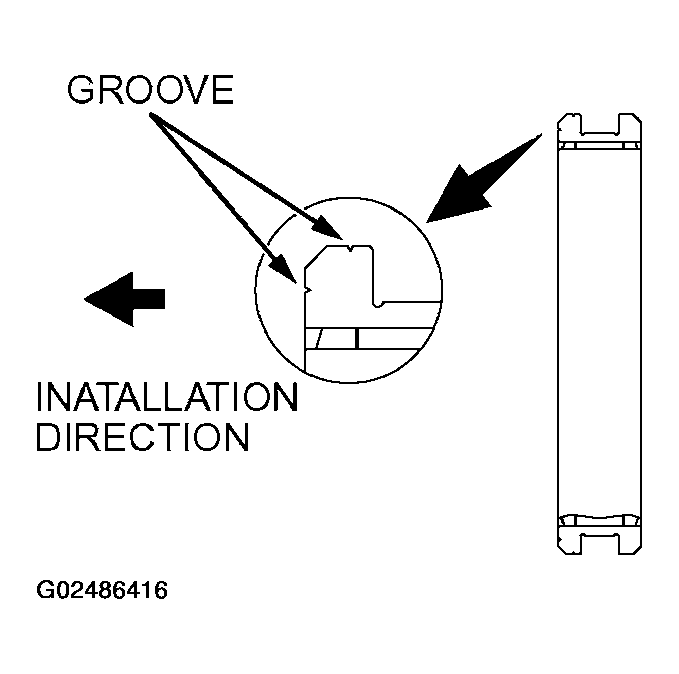

    Fig 1: Identifying Synchronizer Sleeve Installation Direction
    G02486416Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Install the synchronizer sleeve so that the areas with teeth that have raised tips (three areas total) are aligned with the areas on the synchronizer hub that have deep grooves between the teeth (three areas total).

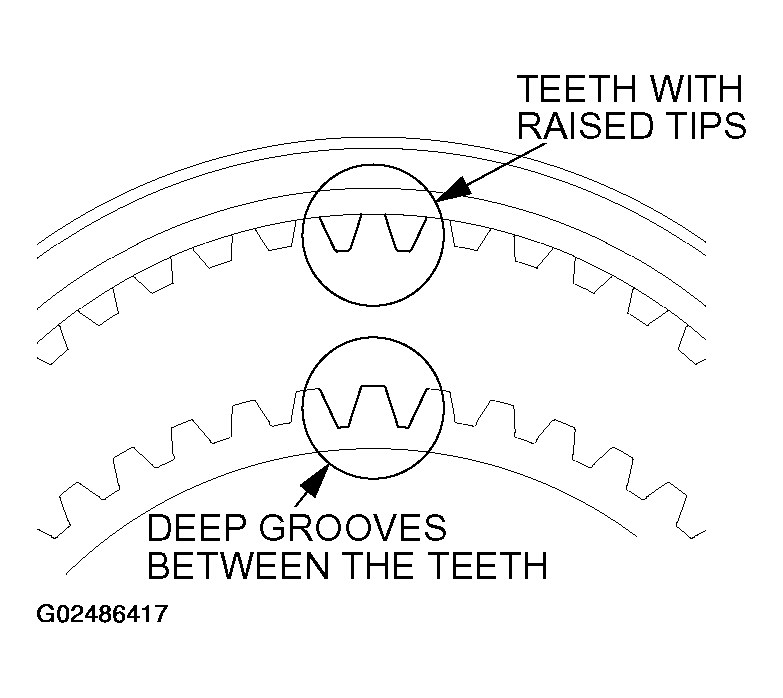

    Fig 2: Aligning Synchronizer Sleeve Raised Tips Teeth With Synchronizer Hub Teeth Deep Grooves
    G02486417Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
