>> E << Transaxle Case Installation
CAUTION:
Squeeze out the sealant uniformly, while making sure that it is not broken or excessively applied.

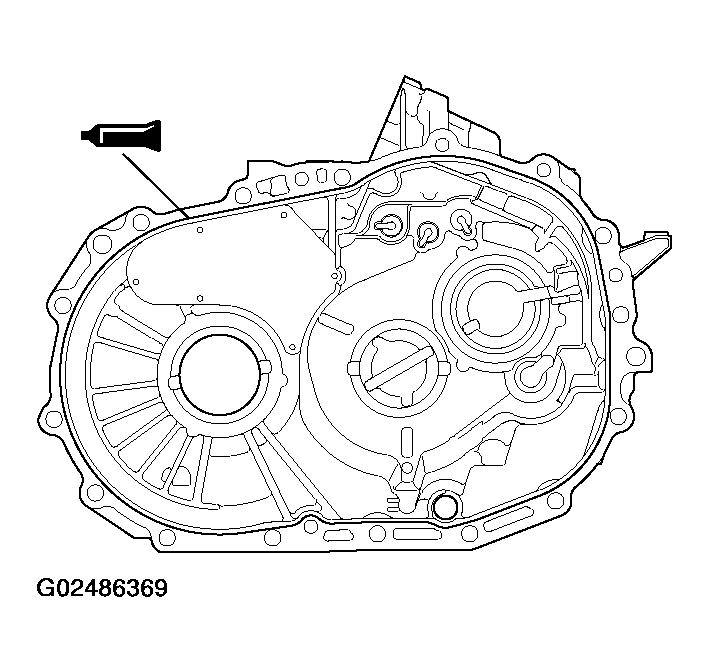

- Apply a 2 mm (0.08 inch) diameter bead of sealant (Mitsubishi genuine part number MD997740 or equivalent) to the illustrated position of the transaxle case.NOTE: Be sure to install the transaxle case while the sealant is wet (within 15 minutes).
- Install the transaxle case.
- Tighten the transaxle case mounting bolts to the specified torque.
- Tightening torque: 44 +/- 5 N.m (32 +/- 3 ft-lb)
NOTE: After installation, keep the sealed area away from oil for approximately one hour.
