>> G << Control Housing Installation
CAUTION:
Squeeze out the sealant uniformly, while making sure that it is not broken or excessively applied.

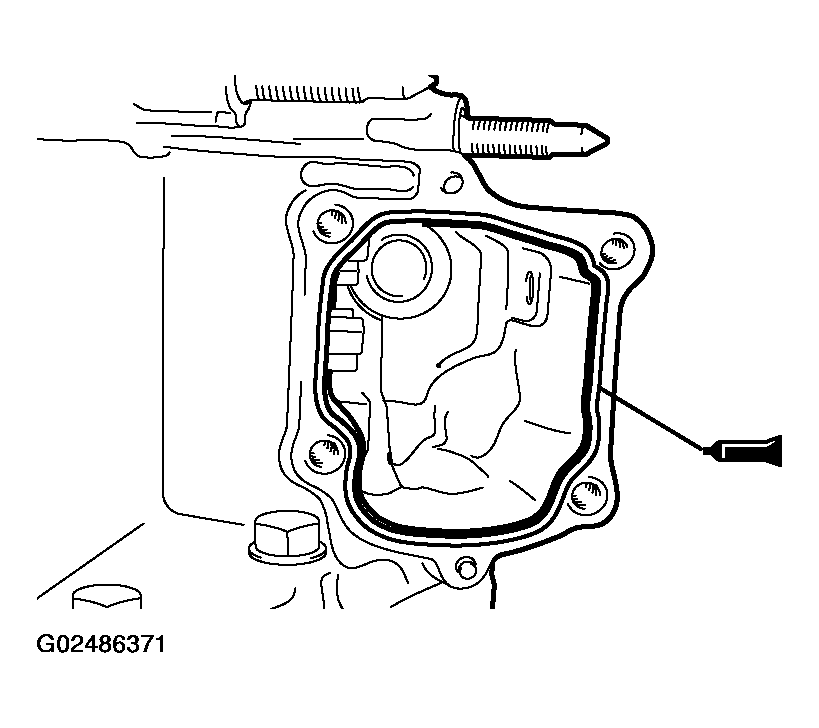

- Apply a 0.2 mm (0.08 inch) diameter bead of sealant (Mitsubishi genuine part number MD997740 or equivalent) to the illustrated position of the transaxle case.NOTE: Be sure to install the case quickly while the sealant is wet (within 15 minutes).
- Install the control housing to the transaxle case and tighten the bolts to specified torque.
- Tightening torque: 18 +/- 3 N.m (13 +/- 2 ft-lb)
NOTE: After installation, keep the sealed area away from oil for approximately one hour.
