>> H << Select Lever Installation

  1. Apply grease (Mitsubishi genuine grease part No. 0101011 or equivalent) to the control shaft sliding portion of the select lever shoe.
  2. Install the select lever and tighten the bolts to specified torque.
    • Tightening torque: 18 +/- 3 N.m (13 +/- 2 ft-lb)

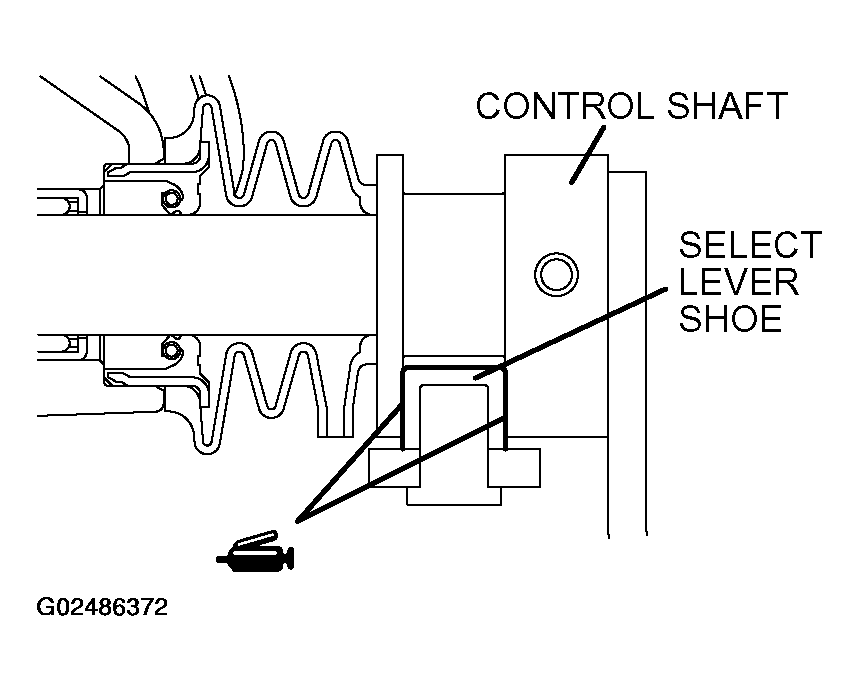

    Fig 1: Applying Grease To Control Shaft Sliding Portion Of Select Lever Shoe
    G02486372Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
