AWD System: General Description
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

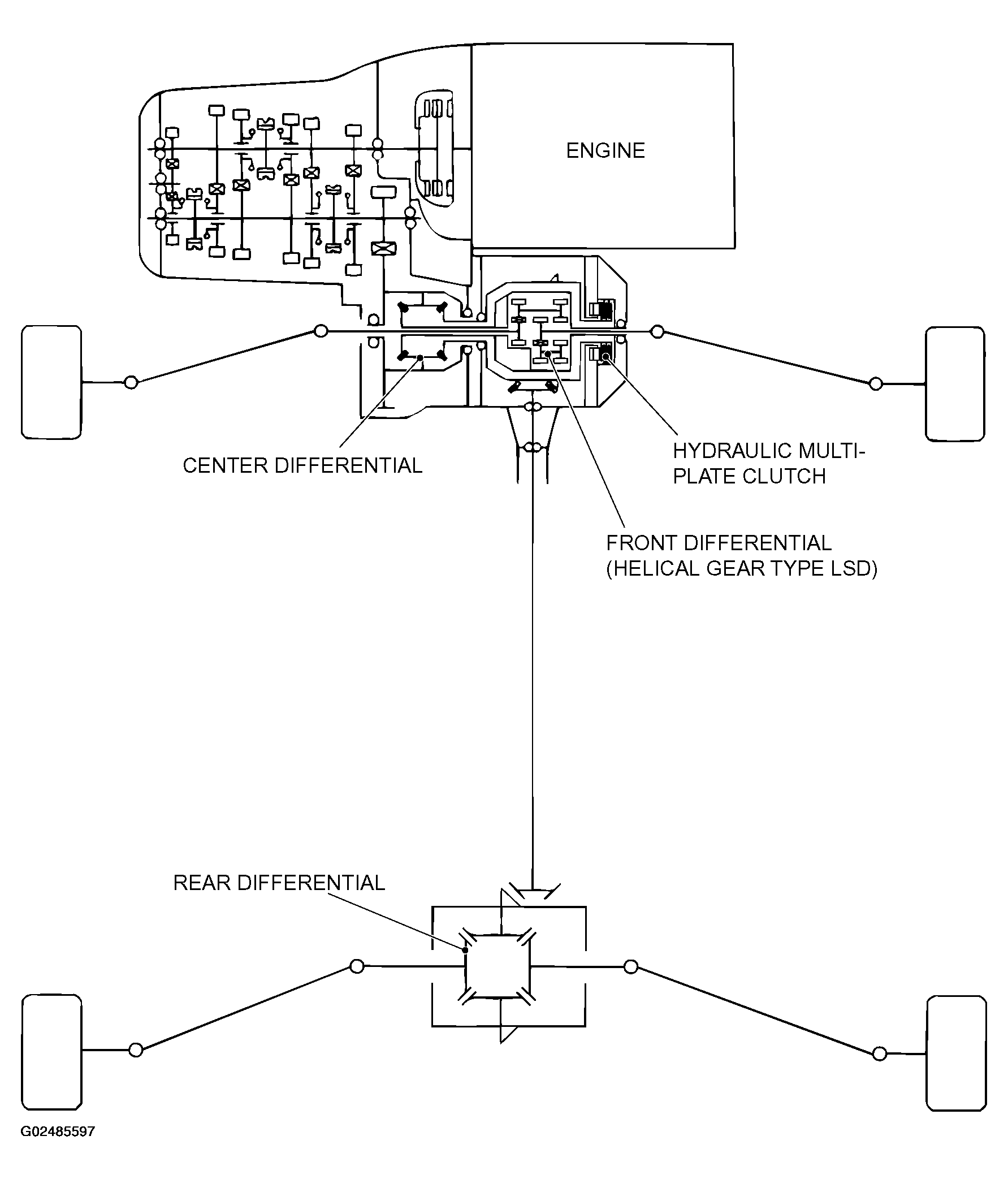

- The AWD system employs a center differential type full-time AWD equipped with a limited slip differential.
- The center differential has been positioned at the front differential of the FWD transaxle, and the front differential has been positioned inside the transfer.
- The helical gear type limited slip differential is used on a front differential.
- Newly-developed active center differential (ACD) is used on the limited slip differential for the center differential.
