Shift Lever Assembly

For this shift lever assembly, the conventional reverse position of the 5M/T shift lever assembly has been replaced with the 6th gear position, and the reverse position is on the right side of the 6th gear position. This prevents accidentally shifting into Reverse when shifting from 5th gear to 6th gear.

Using the stroke stopper equipped with the reverse shift prevention mechanism, the shifting stroke of the shift lever assembly ensures the same stroke operation as the 5 M/T shift lever assembly.

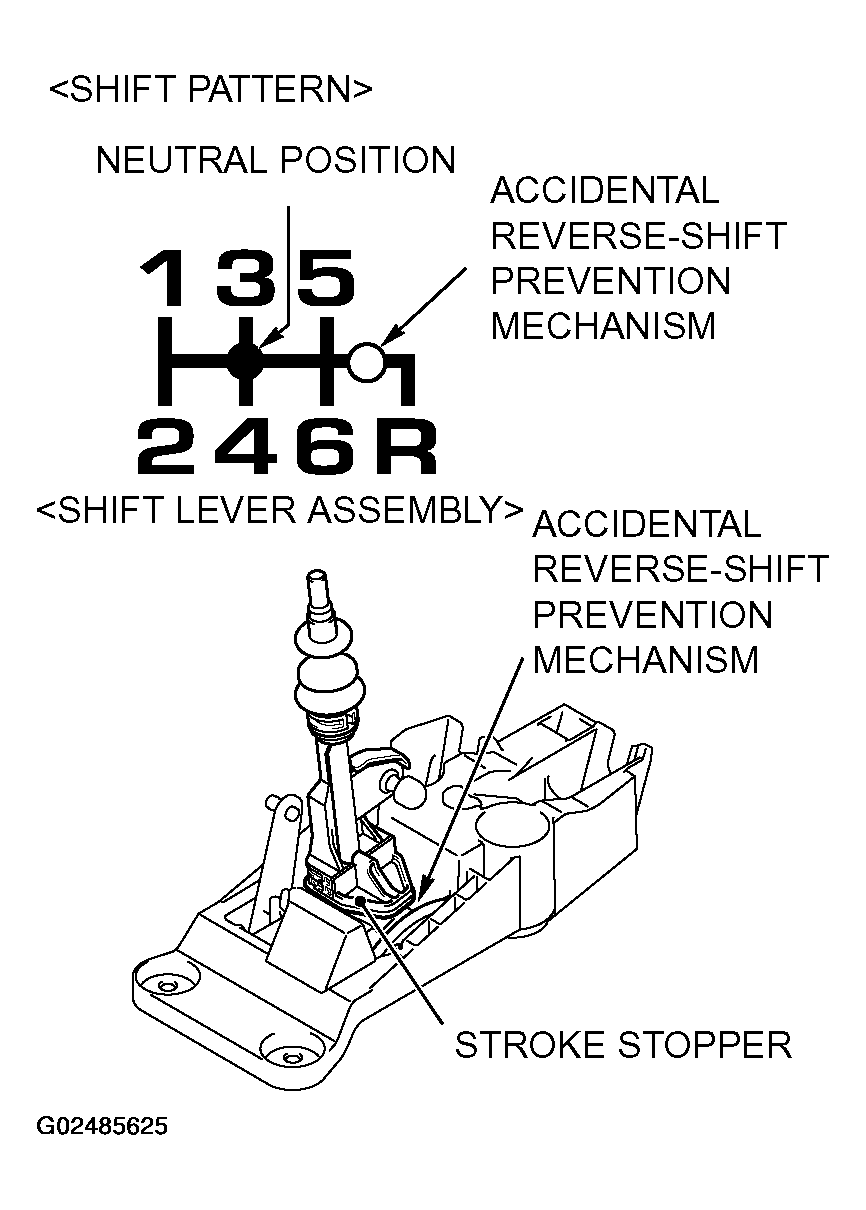

Fig 1: Identifying Shift Lever Assembly
G02485625Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
