Disassembly and Assembly
DISASSEMBLY AND ASSEMBLYDisassembly And Assembly:

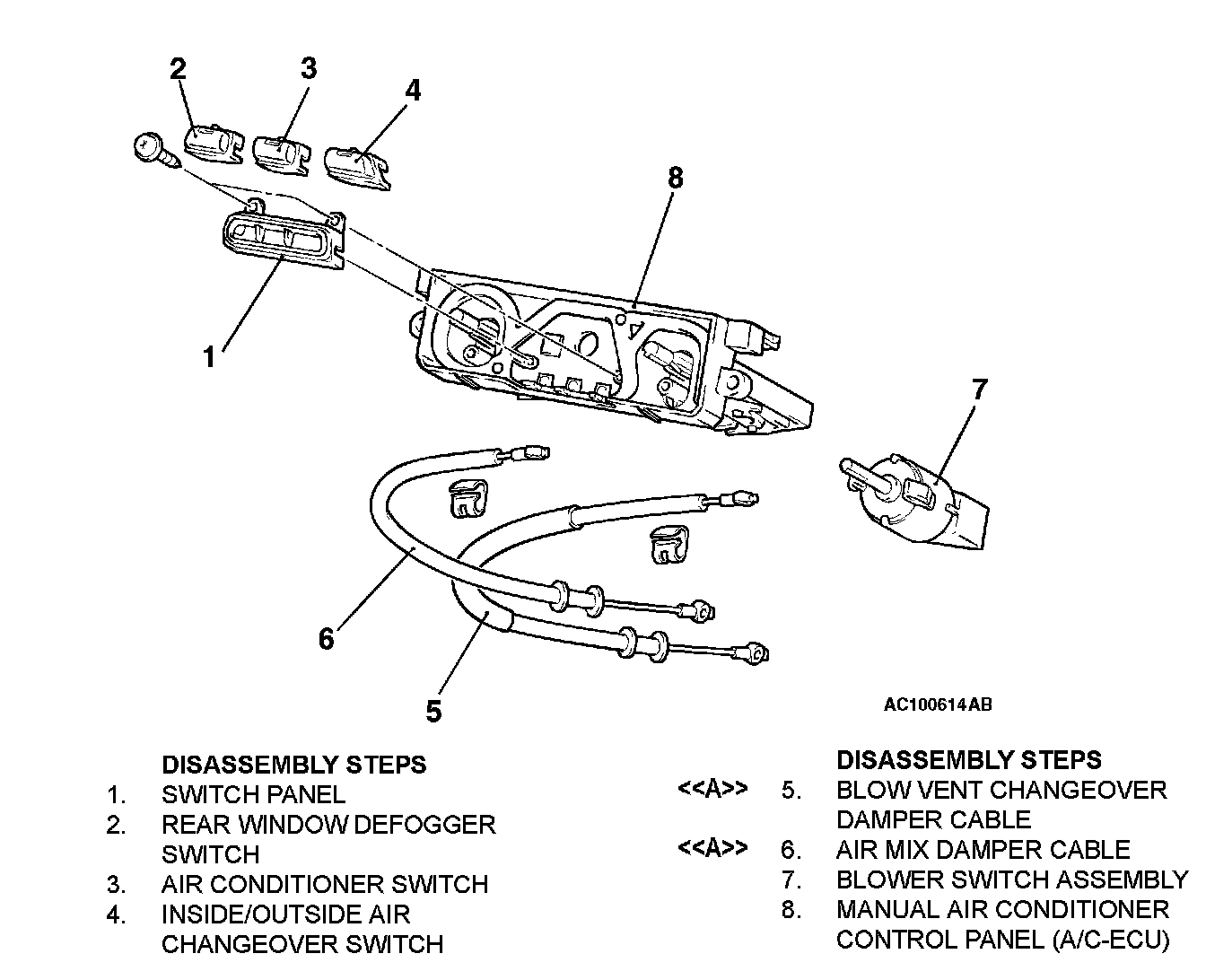

DISASSEMBLY SERVICE POINT

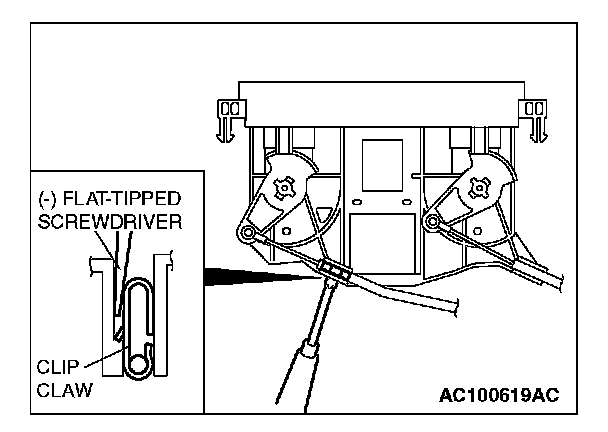

<> BLOW VENT CHANGEOVER DAMPER CABLE AND AIR MIX DAMPER CABLE REMOVAL
Insert a flat-tipped screwdriver into the clip through the inside of the control base and prize out the clip claw to disconnect the cables.
