Fuel Level Sensor Float Height

Fuel Level Sensor Float Height

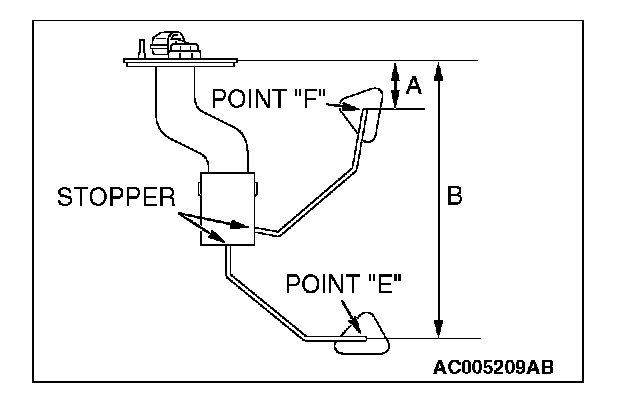

1. Move the float and measure height A at point "F" (highest) and B at point "E" (lowest) with the float arm touching stopper.

Standard value:
- A: 24.1 ± 2 mm (0.95 inch)
- B: 151.6 ± 2 mm (5.97 inches)

2. Adjust the float arm to the standard value, then go to the thermistor check.
