California Vehicles

REMOVAL AND INSTALLATION

Refer to the removal and installation of catalytic converter because it is integrated in the exhaust manifold and the front exhaust pipe.
- Exhaust manifold side (the vehicles with 2.0L engine) : Refer to Exhaust Manifold.
- Front exhaust pipe side : Refer to Exhaust Pipe and Main Muffler.

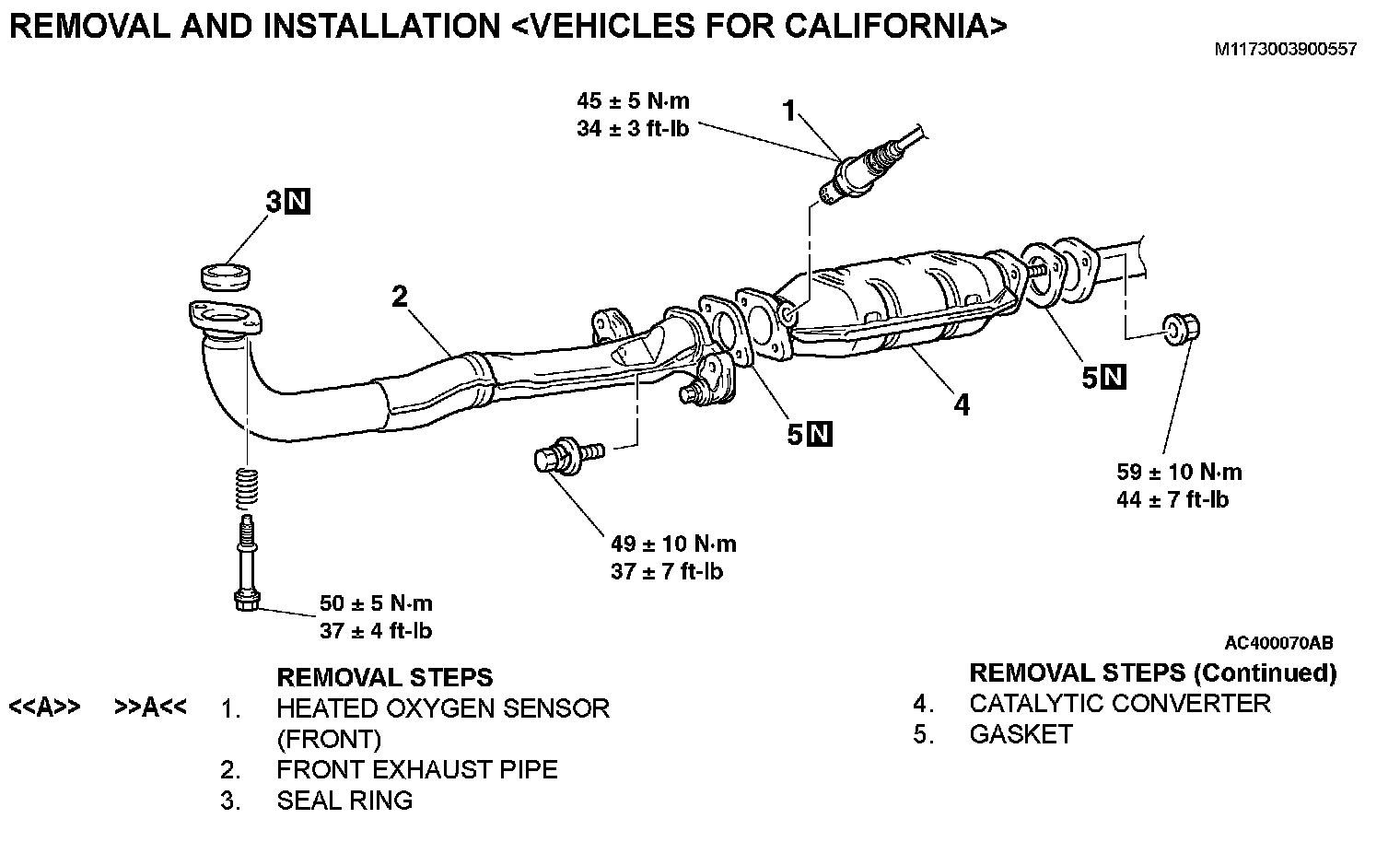

REMOVAL AND INSTALLATION

Required Special Tool:
- MD998770: Oxygen Sensor Wrench

REMOVAL SERVICE POINT

<> HEATED OXYGEN SENSOR (FRONT)

REMOVAL
Use special tool MD998770 to remove the oxygen sensor.

INSTALLATION SERVICE POINT

<> HEATED OXYGEN SENSOR (FRONT)

INSTALLATION
Use special tool MD998770 to installation the oxygen sensor.
