Fail-Safe Function Reference Table

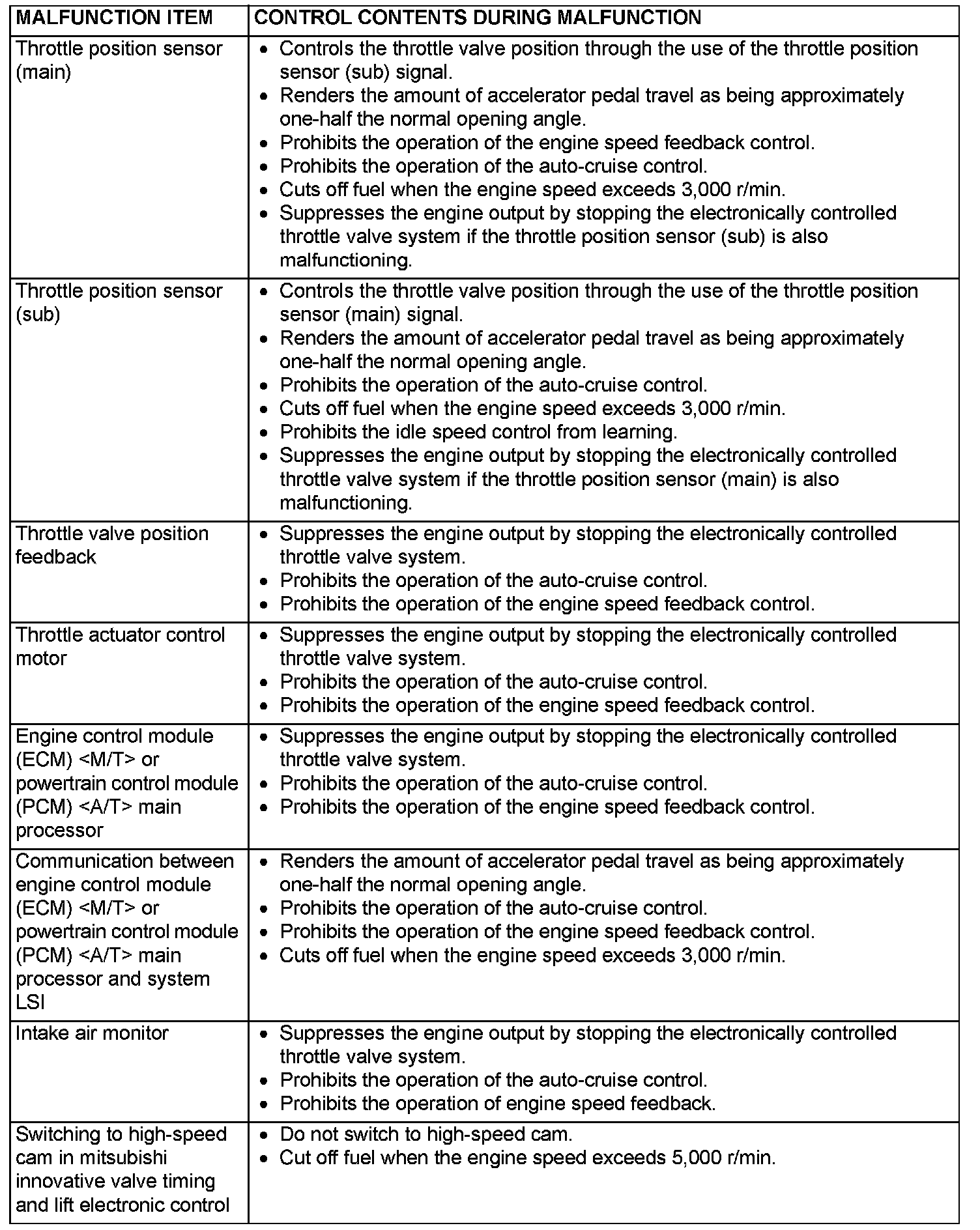

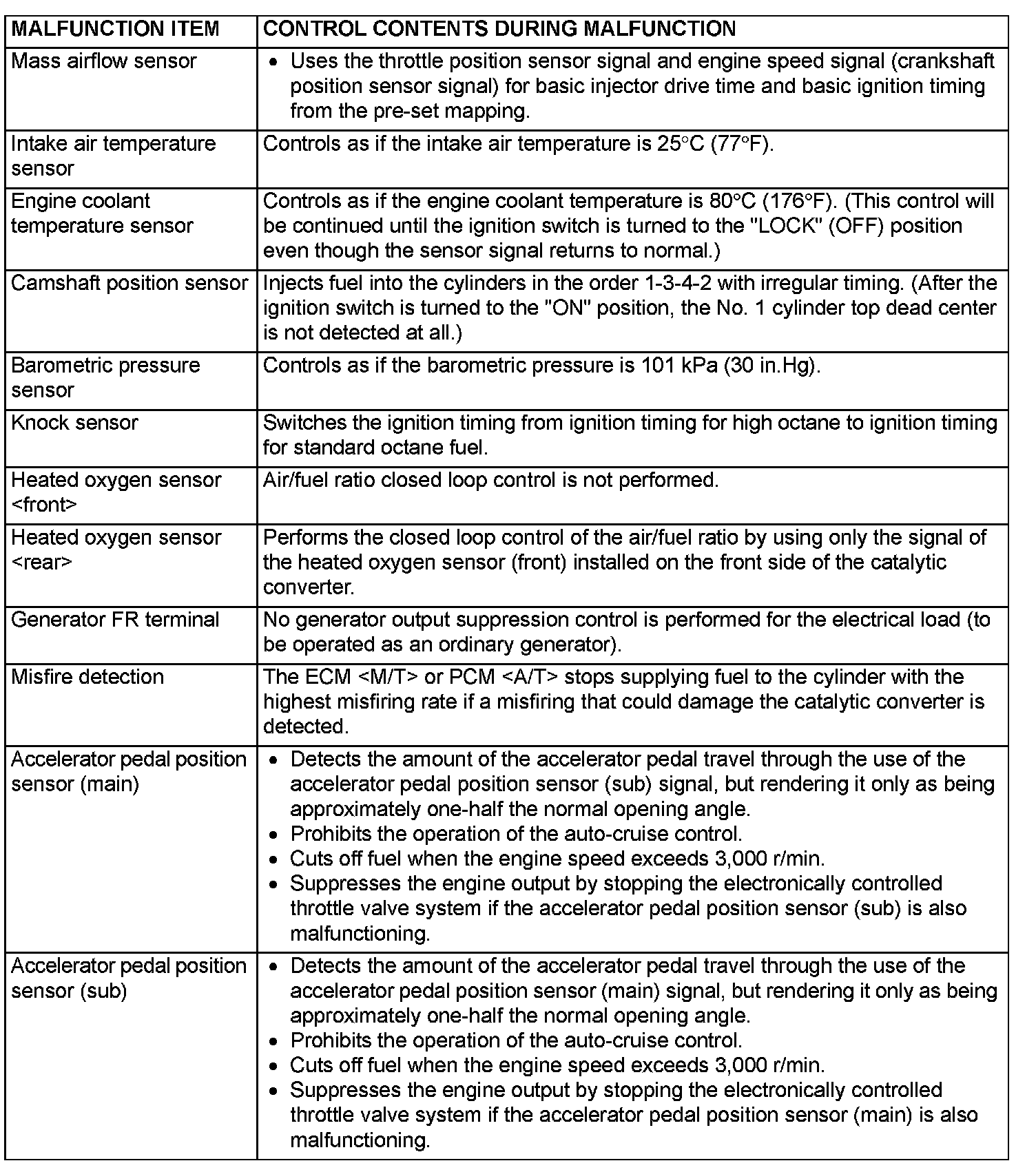

FAIL-SAFE FUNCTION REFERENCE TABLE

Part 1:




Part 2:




When the main sensor malfunctions are detected by the diagnostic test mode, the vehicle is controlled by means of the defaults.
