A/T Control Relay Check

A/T CONTROL RELAY CHECK

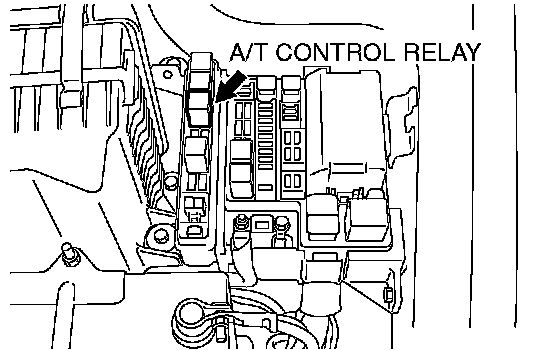

1. Remove the A/T control relay.

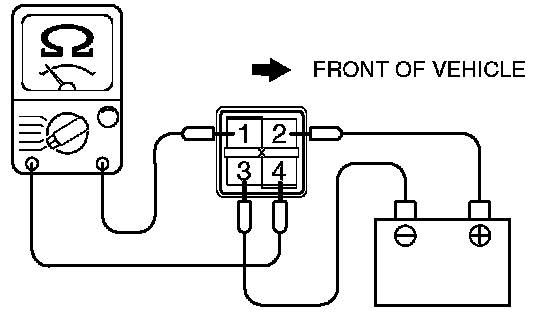

2. Use jumper wires to connect A/T control relay terminal 3 to the negative battery terminal and terminal 2 to the positive battery terminal.

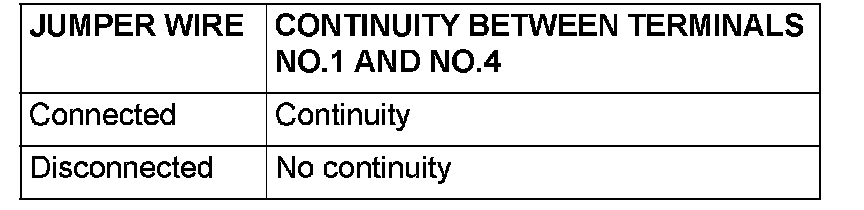

3. Check for continuity between A/T control relay terminals 1 and 4 when the jumper wires are connected to and disconnected from the battery.
4. If there is any problem with the A/T control relay, replace it.
